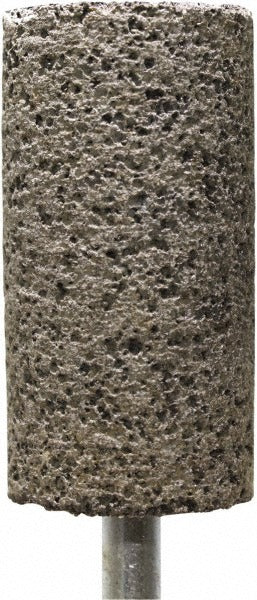

Tru-maxx TM-222AB3QD2 Mounted Point 36 Grit W222 Zirconia

Product Description

The TRU-MAXX TM-222AB3QD2 is a W222 cylinder-shaped mounted point designed for grinding, deburring, and surface conditioning on metal workpieces. Built with a zirconia alumina abrasive grain at 36 grit, this coarse-grade point removes material aggressively and holds up well under heat and pressure. The 1/4 inch shank diameter fits standard die grinders and rotary tools. With an overall length of 3 inches and a shank length of 1.5 inches, the geometry suits both open-access and moderately confined grinding work. Rated to 15,900 RPM, it is suitable for continuous-duty use in fabrication, weld blending, and finishing operations. Machinists, fabricators, and metalworking professionals are the primary installers.

This mounted point is used in metalworking and fabrication environments where aggressive stock removal or weld blending is needed on steel, stainless steel, and other ferrous and hard materials. Common applications include deburring cast or machined parts, cleaning weld joints, and grinding inside bores or cavities that larger wheels cannot reach. The cylinder W222 profile provides a flat working face suitable for surface contact grinding. It is sold individually per package and must be ordered in a minimum quantity of 5 units.

Key Features

• W222 cylinder shape provides a flat working face for consistent surface contact
• Zirconia alumina abrasive grain delivers aggressive cut and extended service life on ferrous metals
• 36 grit coarse grade for rapid stock removal and weld blending
• 1/4 inch shank diameter fits standard die grinders and rotary tool chucks
• 15,900 RPM maximum rated speed for continuous-duty grinding
• 3 inch overall length with 1.5 inch shank suits reach into bores and confined work areas

Compatibility

Designed for use with die grinders and rotary tools accepting a 1/4 inch shank. Suitable for grinding ferrous metals, stainless steel, and hard alloys in fabrication and machining applications.

Installation Notes

Install and remove mounted points only with the tool fully powered down and disconnected from the air or electrical supply. Inspect the point for cracks or chips before mounting and discard any damaged abrasive. Do not exceed the rated 15,900 RPM. Use appropriate eye protection and guarding per ANSI B7.1 standards when operating grinding accessories.
