Tru-maxx 66253292101 Mounted Point 60 Grit W223 Cylinder

Product Description

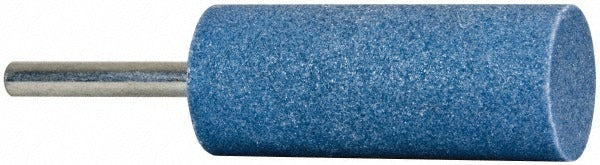

The TRU-MAXX 66253292101 is an aluminum oxide mounted point designed for precision grinding, deburring, and surface blending in metalworking and fabrication applications. This cylinder-profile point carries a W223 shape code and runs at a maximum of 12,370 RPM, making it suited for use with die grinders and rotary tools. The 60-grit, medium-grade abrasive removes material efficiently while leaving a controlled surface finish on ferrous and non-ferrous metals. The 0.25-inch shank diameter fits standard collets on most pneumatic and electric die grinders. The abrasive head measures 2.5 inches thick with a 1.5-inch shank length for stable chuck retention during extended use.

This mounted point is used in industrial maintenance, toolroom grinding, weld blending, and general metal fabrication. It is appropriate for both shop and field work where a portable rotary tool is required to reach bores, cavities, slots, or contoured surfaces that bench grinders cannot access. Machinists, millwrights, pipefitters, and metal fabricators are the primary installers and operators of this type of abrasive tooling.

Key Features

• W223 cylinder shape code for consistent contact on flat and internal surfaces
• 60-grit medium-grade aluminum oxide abrasive for efficient stock removal
• Rated to 12,370 RPM for use with standard die grinders
• 0.25-inch shank diameter fits common collet sizes on pneumatic and electric rotary tools
• 2.5-inch head thickness provides extended abrasive life per point
• Blue color coding for quick grade identification in the shop

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.25-inch shank collet. Confirm the tool spindle speed rating meets or exceeds the 12,370 RPM maximum before mounting.

Installation Notes

Always verify the die grinder or rotary tool is rated at or above the maximum RPM marked on the mounted point before use. Power down and disconnect the tool from the air supply or electrical source before inserting or removing the shank from the collet. Tighten the collet securely to prevent shank slippage during operation. Wear appropriate eye protection and follow ANSI B7.1 safety guidelines for abrasive product use.
