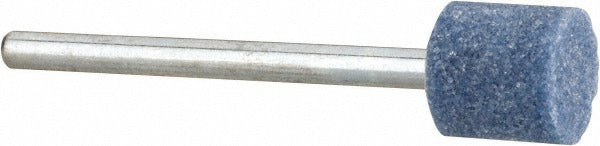

Tru-maxx 66253291827 W175 Mounted Point 60 Grit 1/8 in Shank

Product Description

The TRU-MAXX 66253291827 is a W175 cylinder-shaped mounted point abrasive designed for precision grinding, deburring, and surface finishing in tight or contoured areas. It uses an aluminum oxide abrasive at 60 grit with a medium grade, making it suited for general-purpose stock removal on ferrous metals and other hard materials. The 1/8 inch shank fits standard die grinders and rotary tools, and the part is rated to a maximum of 54,000 RPM. At 0.375 inches thick and with a 1.5 inch shank length, this mounted point provides a compact, controllable profile for detail work in fabrication, maintenance, and toolroom applications.

This mounted point is used in metalworking, maintenance, repair, and operations environments where a rotary die grinder is employed. It is well suited for grinding welds, cleaning castings, shaping workpiece edges, and removing burrs in areas inaccessible to bench or angle grinders. Machinists, tool and die makers, pipefitters, and general maintenance technicians are the typical users. The cylinder W175 profile allows flat-face contact along the grinding face or the side of the wheel depending on the task.

Key Features

• W175 cylinder point shape provides flat-face and side-grinding versatility
• 60 grit medium grade aluminum oxide abrasive for general-purpose stock removal
• 1/8 inch shank diameter fits standard die grinder and rotary tool collets
• Rated to 54,000 RPM maximum for high-speed rotary tool compatibility
• Compact 3/8 inch head thickness for work in confined or contoured areas
• Blue color coding indicates medium grade for quick identification at point of use

Compatibility

Designed for use with die grinders and rotary tools accepting a 1/8 inch collet. Suitable for grinding ferrous metals, castings, and similar hard workpiece materials in standard mounted point applications.

Installation Notes

Installation and use should be performed by qualified machinists or maintenance technicians familiar with abrasive safety standards. Before mounting, verify the tool spindle speed does not exceed the 54,000 RPM rating marked on this mounted point. Ensure the shank is fully seated and the collet nut is properly tightened before operating. Always wear appropriate eye protection and follow applicable ANSI B11 and OSHA abrasive wheel safety requirements during use.
