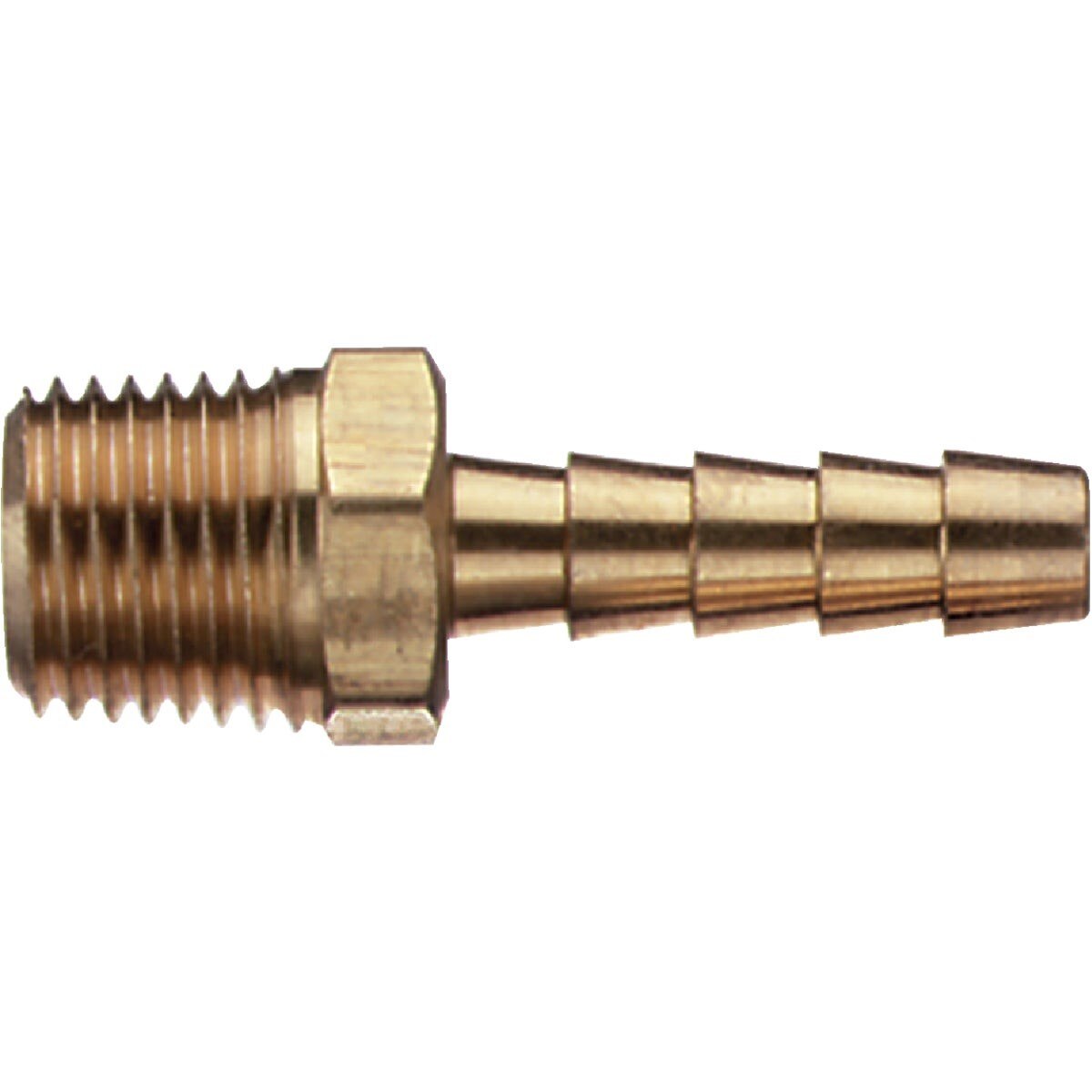

Tru-flate 21-123 Brass Hose End 1/4 in Barb X 1/4 in Mnpt

Product Description

The TRU-FLATE 21-123 is a brass hose end fitting designed to connect flexible hose to threaded pipe or equipment ports. It features a 1/4 inch barb on one end and a 1/4 inch male NPT (MNPT) thread on the other. The all-brass construction resists rust and corrosion, making it suitable for air, water, and general fluid service applications. Plumbers, HVAC technicians, and general contractors use this type of fitting where a permanent or semi-permanent hose-to-pipe transition is needed. The barb end is secured with a hose clamp or ferrule for a reliable, leak-resistant connection.

This fitting is used in residential and light commercial plumbing, HVAC, and pneumatic systems wherever 1/4 inch flexible hose must terminate at a 1/4 inch male NPT connection. Typical applications include air line assemblies, water supply transitions, and equipment hookups requiring a barbed hose end. It is sold as a single fitting per card and is packaged with a minimum quantity of 6 units per order.

Key Features

• All-brass construction resists rust and corrosion
• 1/4 inch barb end compatible with hose clamps or ferrules
• 1/4 inch MNPT thread for standard NPT pipe connections
• Suitable for air, water, and general fluid service
• Compact, lightweight design at 0.066 pounds per fitting

Compatibility

Designed as a standard barb-to-MNPT hose end fitting for use with 1/4 inch flexible hose in plumbing, HVAC, and pneumatic applications requiring a 1/4 inch male NPT port connection.

Installation Notes

Installation is typically performed by a licensed plumber or HVAC technician. Shut off the water or air supply and depressurize the line before fitting installation. Secure the barb end with an appropriately sized hose clamp or ferrule to prevent blow-off under pressure. Apply thread sealant tape or compound to the MNPT threads in accordance with IPC and local plumbing code requirements before tightening into the receiving port.

Technical Specifications

• Barb Size: 1/4 inch
• Thread Size: 1/4 inch MNPT
• Material: Brass
• Weight: 0.066 pounds
• UPC: 00028893211235

Standard Information

• Brand: TRU-FLATE
• Manufacturer Part Number: 21-123
