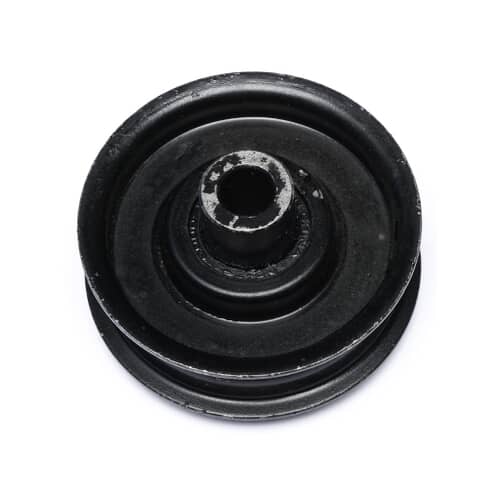

Troy-bilt 756-04169 Reverse Idler Pulley

Product Description

The TROY-BILT 756-04169 is a reverse idler pulley designed for use in the drive belt systems of TROY-BILT lawn and garden equipment. The idler pulley maintains proper belt tension on the reverse drive circuit, allowing the belt to transfer power smoothly between the engine and transmission. Without correct tension, belts slip or wear prematurely, reducing drivetrain reliability. This component is a direct OEM-style replacement part intended for installation by experienced service technicians or knowledgeable equipment owners familiar with small-engine drivetrain systems.

This reverse idler pulley is used in the belt and pulley drive assemblies found on TROY-BILT walk-behind and riding lawn and garden equipment. It is positioned in the drive system to redirect and tension the belt on the reverse engagement circuit. Proper function of this pulley is critical to smooth reverse operation and belt longevity. Installation is typically required when the existing pulley shows bearing wear, wobble, or damage that causes belt misalignment or noise during operation.

Key Features

• OEM-style reverse idler pulley for TROY-BILT drive belt systems
• Maintains proper belt tension on the reverse drive circuit
• Designed to reduce belt slippage and premature wear
• Direct replacement for failed or worn reverse idler pulleys

Compatibility

Designed as an OEM-style replacement reverse idler pulley for TROY-BILT lawn and garden equipment drive belt systems. Verify fitment against your equipment model number before ordering.

Installation Notes

Installation should be performed by a qualified small-engine technician or experienced equipment owner. Disconnect the spark plug wire before beginning any drivetrain service to prevent accidental engine start. Release belt tension before removing the old pulley, and inspect the surrounding belt and related pulleys for wear before reassembly. Consult the equipment service manual for the correct belt routing diagram specific to your model.

Technical Specifications

• Part Type: Reverse Idler Pulley

Standard Information

• Brand: TROY-BILT
• Manufacturer Part Number: 756-04169
