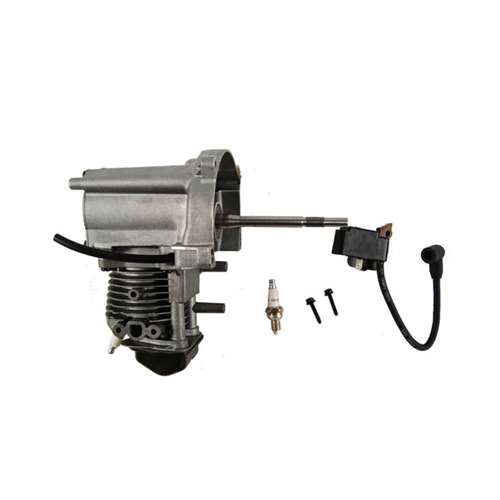

Troy-bilt 753-06225 Short Block Engine AC3.1

Product Description

The TROY-BILT 753-06225 is a short block engine assembly for the AC3.1 engine platform used in outdoor power equipment. A short block includes the assembled engine block, crankshaft, piston, connecting rod, and internal bearings, but does not include the cylinder head, carburetor, ignition components, or external accessories. This assembly is the correct service replacement when internal engine wear or damage requires a bottom-end rebuild without replacing the entire power unit. Installation is typically performed by small engine technicians or experienced outdoor power equipment mechanics.

The 753-06225 short block is designed for use in TROY-BILT lawn and garden equipment built around the AC3.1 engine configuration. This includes walk-behind mowers, tillers, and similar residential-grade power equipment where the AC3.1 engine platform is the factory-installed unit. When a short block replacement is performed, the technician transfers serviceable external components from the original engine to the replacement assembly.

Key Features

• Complete short block assembly including crankshaft, piston, and connecting rod
• Designed as a direct OEM-style replacement for the AC3.1 engine platform
• Allows bottom-end engine rebuild while retaining original external components
• Genuine TROY-BILT part number for assured fitment in supported equipment

Compatibility

Designed as an OEM-style short block replacement for TROY-BILT lawn and garden equipment powered by the AC3.1 engine platform.

Installation Notes

Short block replacement should be performed by a qualified small engine technician. Drain all fuel and oil before disassembly, and disconnect the spark plug wire to prevent accidental startup. Transfer the cylinder head, carburetor, ignition module, and other external components from the original engine to the new short block, following the engine service manual torque sequences. Verify crankshaft keyway alignment before reassembling the blade adapter or drive components.

Technical Specifications

• Engine Platform: AC3.1
• Assembly Type: Short Block

Standard Information

• Brand: TROY-BILT
• Manufacturer Part Number: 753-06225
