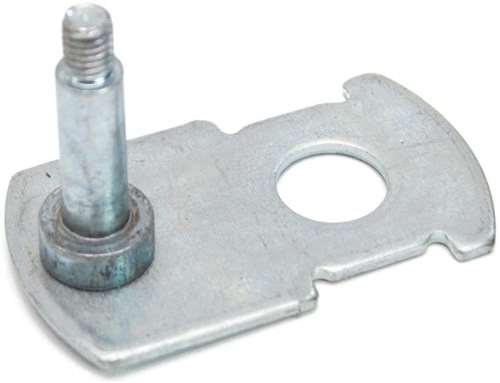

Troy-bilt 687-02342 Pivot Arm Assembly Hsla

Product Description

The TROY-BILT 687-02342 is a pivot arm assembly constructed from high-strength low-alloy (HSLA) steel, designed as a structural linkage component in Troy-Bilt outdoor power equipment. Pivot arm assemblies serve as motion-transfer links within drive, deck, or implement systems, allowing controlled articulation between connected components. The HSLA construction provides a strong strength-to-weight ratio compared to standard mild steel, making it well suited for the cyclic stress and outdoor exposure typical of lawn and garden equipment service. Installation is handled by service technicians and experienced equipment mechanics.

This pivot arm assembly is intended for use in Troy-Bilt lawn and garden equipment where this component is specified by part number 687-02342. Alternate part number reference: 68702342. It functions within the mechanical linkage or drive system of the unit, providing the pivot point necessary for proper component movement and alignment during operation.

Key Features

• High-strength low-alloy (HSLA) steel construction for durability under cyclic load
• OEM replacement part ensuring proper fit and function
• Engineered linkage geometry matched to original Troy-Bilt specifications
• Suitable for outdoor power equipment environments with exposure to moisture and debris

Compatibility

Designed as an OEM-style replacement pivot arm assembly for Troy-Bilt lawn and garden equipment specifying part number 687-02342 or cross-reference 68702342.

Installation Notes

Installation should be performed by a qualified equipment technician. Disconnect the spark plug wire and ensure all power sources are disabled before beginning disassembly or reassembly of any linkage components. Inspect mounting hardware, fasteners, and adjacent linkage parts for wear before reinstalling. Torque all fasteners per the equipment manufacturer service manual for the specific unit model.

Technical Specifications

• Material: High-Strength Low-Alloy (HSLA) Steel

Standard Information

• Brand: TROY-BILT
• Manufacturer Part Number: 687-02342
