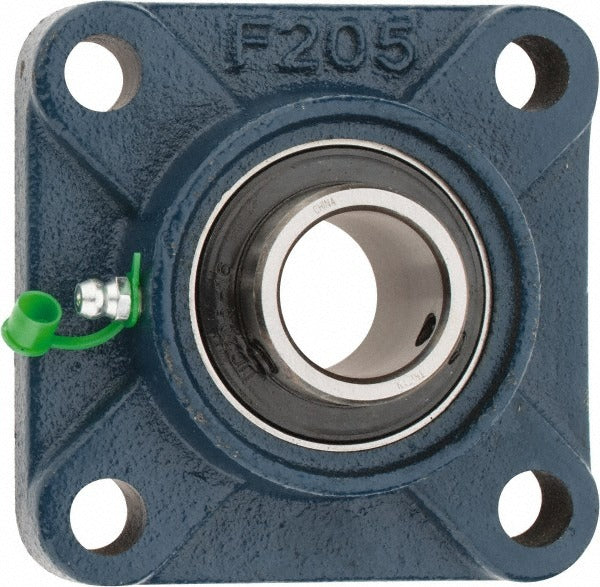

Tritan UCF205-16 4-bolt Flange Bearing 1 Inch Id

Product Description

The TRITAN UCF205-16 is a 4-bolt flange bearing unit designed for industrial and commercial mechanical applications where secure shaft mounting and reliable radial load support are required. It features a 1-inch inside diameter bore with a wide inner ring insert made from 52100 steel, seated in a cast iron housing. The unit carries a static load capacity of 1,765 pounds and a dynamic load capacity of 3,147 pounds. A set screw lock secures the bearing to the shaft. This unit is installed by mechanical technicians and millwrights in conveyor systems, agricultural equipment, material handling machinery, and similar rotating shaft assemblies.

The UCF205-16 fits applications calling for a 4-bolt flange mount with a 1-inch shaft. The overall length is 3.74 inches and the overall height is 1.41 inches, making it suitable for compact mounting surfaces. The bolt hole center-to-center spacing is 2.75 inches, accepting 3/8-inch bolts. The base-to-center height is 0.63 inches. Periodic lubrication is required to maintain bearing performance. This unit suits light-to-medium duty industrial drive shafts, fan assemblies, pump mounts, and similar rotating equipment found in manufacturing and processing environments.

Key Features

• 1-inch bore inside diameter with wide inner ring for shaft stability
• 52100 steel bearing insert for hardness and wear resistance
• Cast iron housing for rigidity and corrosion resistance in industrial environments
• Set screw lock retains insert on shaft without additional hardware
• 1,765 lb static load capacity and 3,147 lb dynamic load capacity
• 4-bolt flange mount with 2.75-inch bolt hole center-to-center spacing for secure installation

Compatibility

Designed as an OEM-style replacement for UCF205-16 series 4-bolt flange bearing units with a 1-inch bore in the UCF series.

Installation Notes

Installation is performed by qualified mechanical technicians or millwrights. Shut down and lock out all power to the drive system before removing or installing any bearing unit. Tighten the 3/8-inch mounting bolts evenly to ensure the housing seats flush against the mounting surface. Apply grease through the lubrication fitting before initial startup and at manufacturer-recommended service intervals to prevent premature wear.
