Tritan 6308 Series Radial Ball Bearing

Product Description

The TRITAN 6308 series radial ball bearing is a medium-duty metric bearing that fits various applications. Made from SAE-52100 chromium bearing steel, it has grooved raceways designed to support moderate axial and radial loads in both directions. This bearing is built for durability and reliable performance at various speeds.

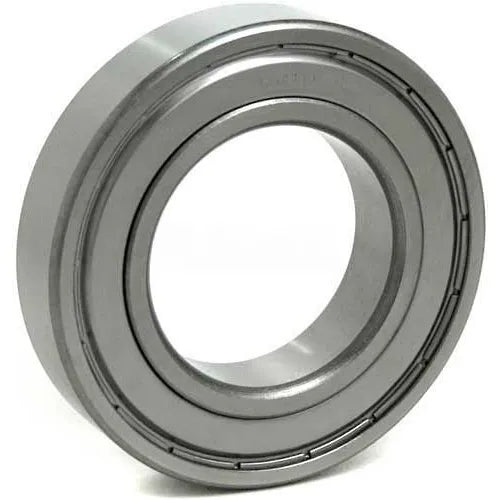

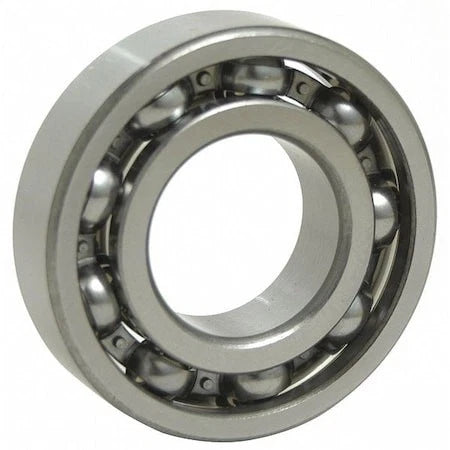

• Available in sealed, shielded, and open configurations.
• Equipped with steel cages to enhance high-speed operation.
• Metric sizing for precise applications.

Product Highlights

This bearing is suitable for machines where moderate load support is required and is commonly used in automotive and industrial applications.

Product Information

Standard Information

• Brand: Tritan
• MPN: 6308

Technical Specifications

• Model: 6308/C3
• Bearing Type: Deep Groove Ball Bearing
• Bore Diameter: 40 mm
• Outer Diameter: 90 mm
• Width: 23 mm
• Dynamic Load Rating: 9100 lbs
• Static Load Rating: 5400 lbs
• Grease Speed Rating: 7800 RPM
• Oil Speed Rating: 9200 RPM
• Weight: 1.400 lbs
• ABEC Rating: ABEC 1
• Radial Internal Clearance (C3): 0.013 to 0.033 mm
• Inner Ring Tolerance: +0 to -0.012 mm
• Outer Ring Tolerance: +0 to -0.015 mm
• Width Tolerance: +0 to -0.12 mm
• Length: 3.5433 in
• Depth: 3.5433 in
• Height: 0.9055 in
• Duty: Heavy
