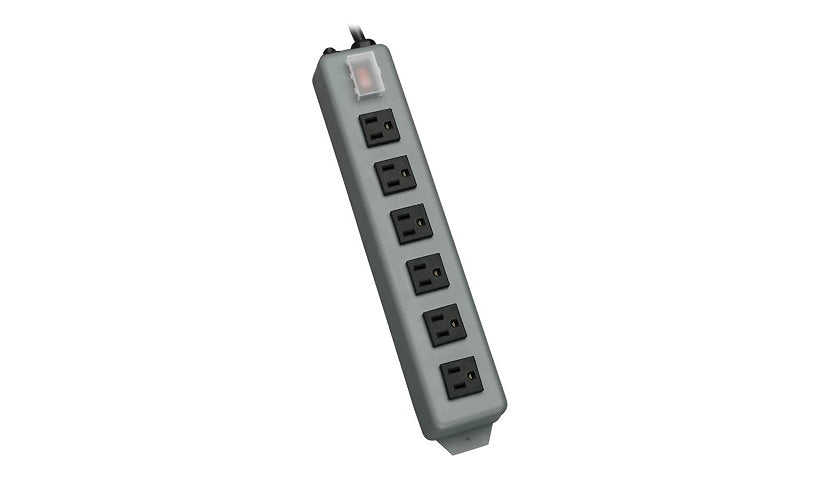

Tripp Lite UL24RA-15 Waber Industrial Power Strip 6 Right-Angle Outlets 15 feet Cord Locking Switch Cover

Product Description

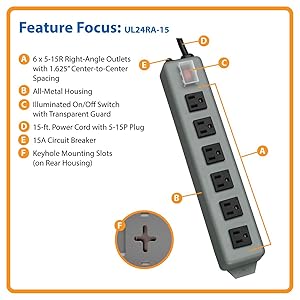

The Tripp Lite UL24RA-15 Waber Industrial Power Strip offers power distribution for workbench, wall-mount, or floor-mount applications. It features 6 NEMA 5-15R outlets with 1.625-inch center-to-center spacing and a 15-foot AC line cord. The right-angle outlet orientation accommodates large transformer plugs. Includes a locking switch cover.

• Features 6 right-angle NEMA 5-15R outlets.
• Includes a 15-foot (4.6-meter) AC line cord.
• Has a locking switch cover to prevent accidental shutoff.

Product Highlights

This power strip is ideal for distributing alternate waveform UPS or generator power. It features rugged all-metal housing and a 15A resettable circuit breaker.

Product Information

Standard Information

• Brand: Tripp Lite
• Manufacturer Part Number: UL24RA-15
• Country of Origin: United States

Technical Specifications

• Item Model Number: UL24RA-15
• Voltage: 120 Volts
• Total Power Outlets: 6
• Special Feature: Light Indicator, Mountable, On And Off Switch, Scratch Resistant
• Material Type: Metal
• Shape: Rectangle
• Hz: 50/60 Hz
• Amps: 15A
• Item: Industrial Power Strip
• Watts: 1800W
• Frequency: 50/60 Hz
• Max. Amps: 15A
• Standards: Ul and cUL Listed
• Wire Size: 14 AWG
• Application: Commercial and Industrial
• For Use With: Offers Multiple Outlet Power Distribution in Workbench, Wallmount or Floor Mount Applications, Unfiltered Electrical Pass-through Makes UL24RA-15 Ideal For Distributing Alternate Waveform UPS or Generator Power to Protected Equipment
• Medical Grade: No
• Mounting Style: Keyhole
• Circuit Breaker: No
• Gauge/Conductor: 14 ga.
• Power Indicator: Yes
• Housing Material: Metal
• Number of Outlets: 6
• Trade Designation: SJT
• Plug Configuration: NEMA 5-15P
• Medical Facility Use: Outside Patient Care Areas (UL 1363)
• NEC Cord Designation: SJT
• Number of Conductors: 3
• Outlet Configuration: Single Row of 6, Right-Angle Outlets
• Number of Outlet Rows: 1
• Outlet Center Distance: 1 5/8 in
• NEMA Plug Configuration: NEMA 5-15P
• NEMA Receptacle Configuration: NEMA 5-15R
• Max. Amps - Ext. Cords and Outlet Strips: 15.0
• Cord Length - Ext. Cords and Outlet Strips: 15 ft.
• Gauge/Conductor - Ext. Cords and Outlet Strips: 14/3
• NEMA Plug Configuration - Ext. Cords and Outlet Strips: 5-15P
• Number of Total Outlets - Ext. Cords and Outlet Strips: 6
• Nominal Input Voltage(s) Supported: 120V AC
• Recommended Electrical Service: 15A 120V
• Input Cord Gauge Type: 14 gauge; SJT
• Voltage Compatibility (VAC): 120
• Input Plug Type: NEMA 5-15P
• Input Cord Length (ft.): 15
• Right-Angle Plug: No
• Frequency Compatibility: 50 / 60 Hz
• Output (Watts): 1800
• Output Receptacles: (6) 5-15R
• Circuit Breaker (amps): 15
• Transformer Accommodation: (3) Yes
• Outlet Orientation: Single row of 6 (right-angle)
• Right-Angle Outlets: Yes
• Outlet Spacing: 1.625 in.
• Switches: Lighted 2 position switch controls power to all outlets
• Locking Switch Cover: Transparent on/off switch cover prevents accidental turn-off
• Material of Construction: Metal
• Power Cord Color: Black
• Housing Color: Blue; Gray
• Mounting Holes or Slots: Yes
• Slot or Hole Mount Measurement (Center to Center): 261.92mm
• Outlets Measurement (Center to Center): 1.62 in.
• Mounting Details: Includes flanges
• Built-In Circuit Breaker: Yes
• Product Certifications: cUL Listed; UL 1363; UL Listed
• Product Compliance: RoHS
• Outlets: 6 NEMA 5-15R right angle outlets
• Electrical: AC 120V/ 15 A/ 1800 Watt
• Mounting: Keyhole Mounting Tabs
• Brand: TRIPP LITE
