Product Description

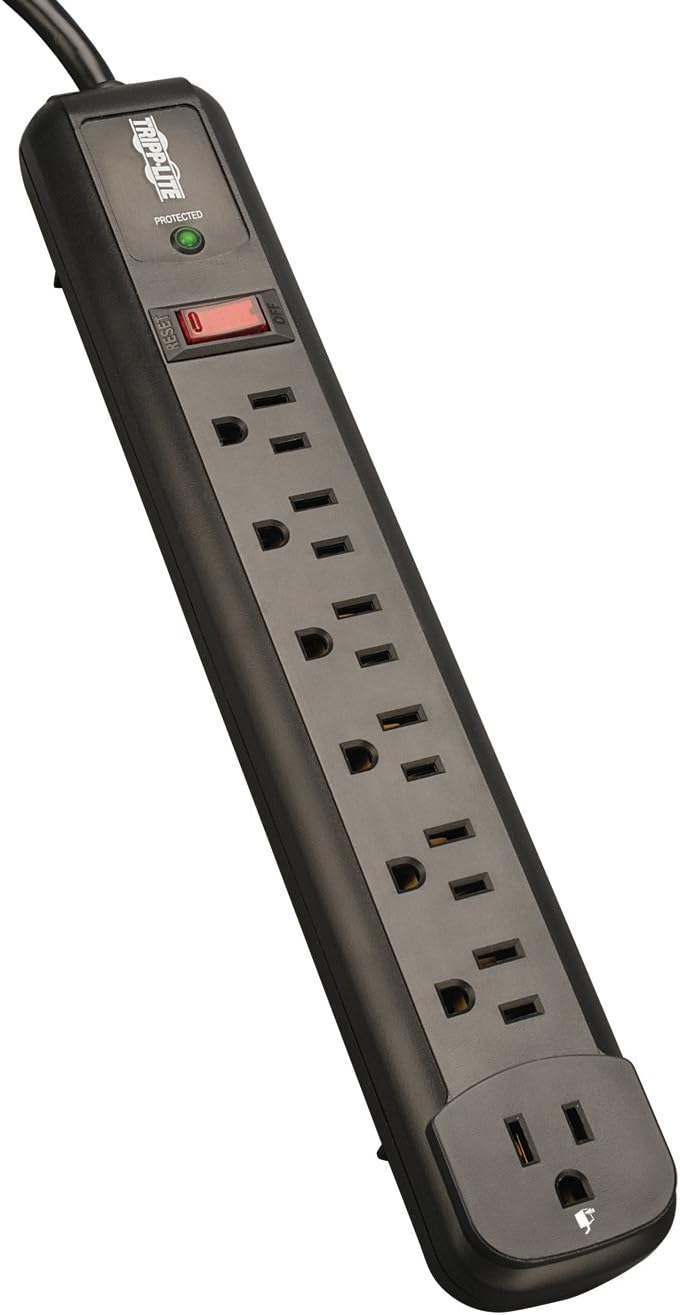

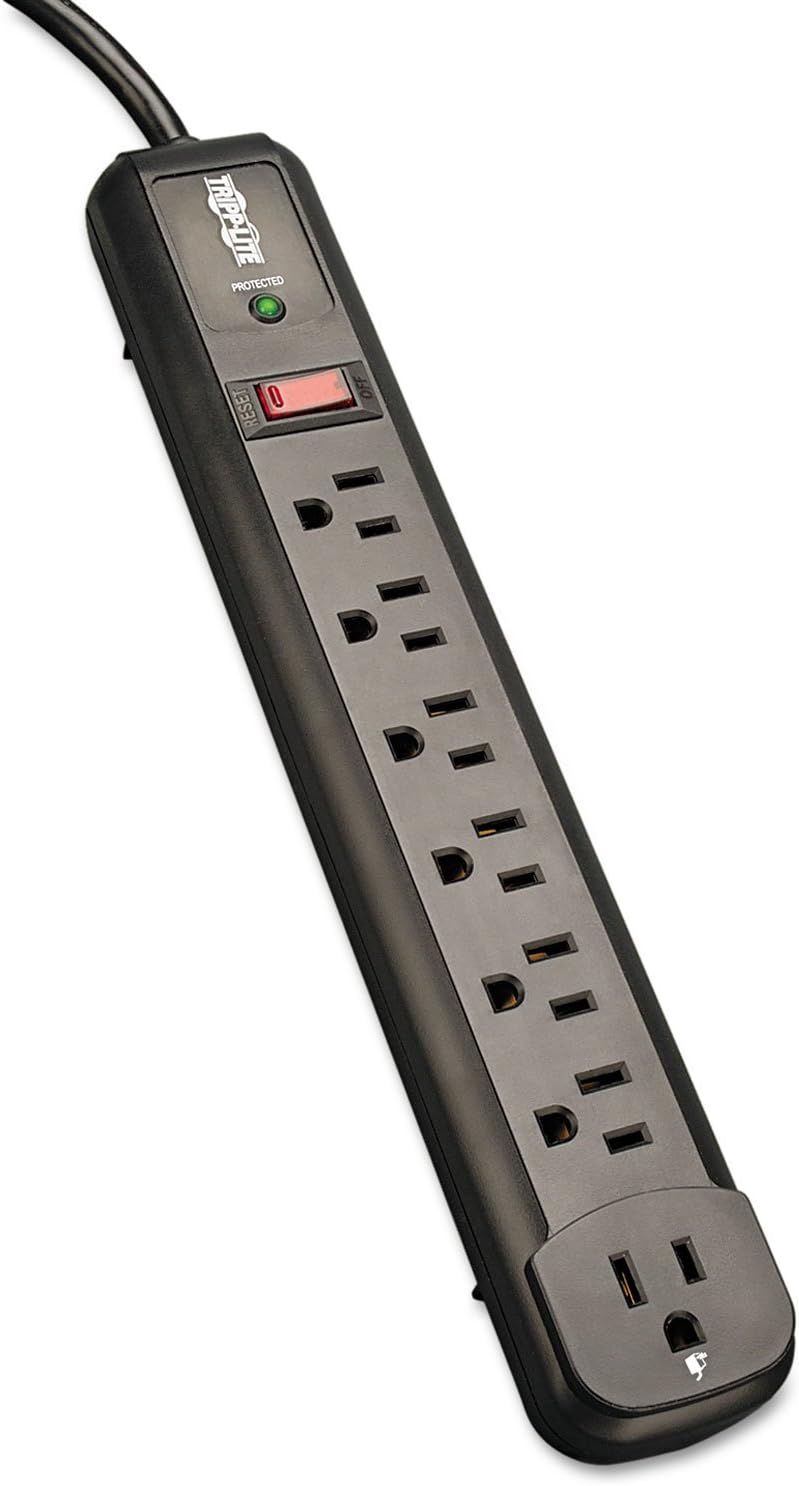

The Tripp Lite TLP74RB offers AC surge suppression to protect workstations, desktop PCs, telecom systems, and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage due to transient surges. It features 7 total outlets, a 4ft cord and a diagnostic LED to warn of suppressor damage.
- Surge Protection
- 7 Total Power Outlets

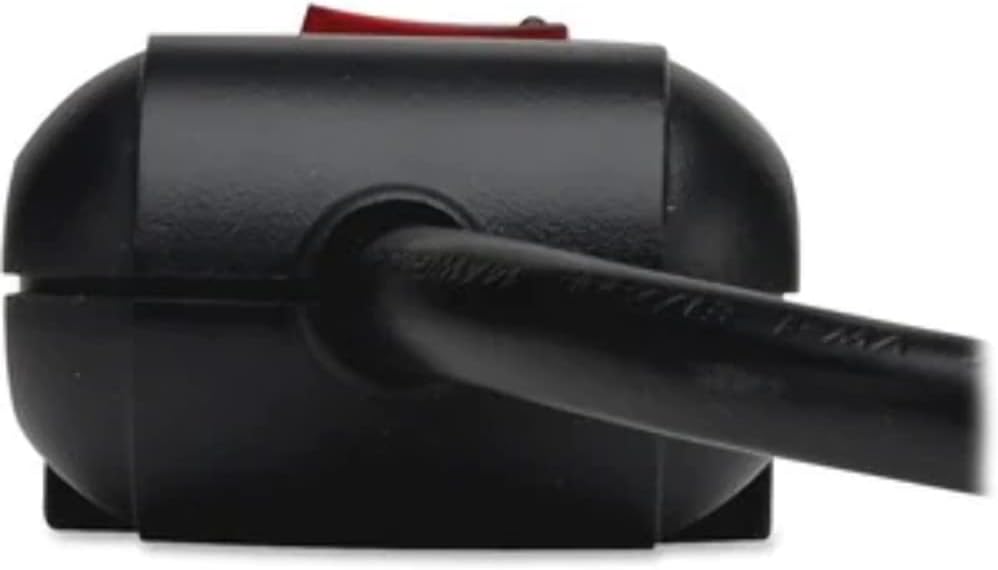

- Right Angle Plug
Product Highlights
This surge protector has 7 outlets, a 4ft cord, and diagnostic LED to protect your electronics.
Product Information
Standard Information
-
Brand: Tripp Lite
-
Manufacturer Part Number: TLP74RB
-
Country of Origin: China
Technical Specifications
-
Color: Black
-
Voltage: 120 Volts
-
Special Feature: Surge Protection
-
Total Power Outlets: 7
-
Item Model Number: TLP74RB
-
Number of Outlets: 7
-
Plug Type: NEMA 5-15P
-
Cord Length: 4 ft
-
Rated Joules: 540
-
Max. Amps: 15 A
-
Power Indicator: Yes
-
Receptacle Configuration: NEMA 5-15R
-
Wire Size: 14 AWG
-
Number of Transformer Outlets: 1
-
USB Charging Port: 0
-
Voltage Compatibility (VAC): 120
-
Frequency Compatibility: 60 Hz
-
Output (Watts): 1800
-
Circuit Breaker (amps): 15 A
-
AC Suppression Joule Rating: 1080
-
AC Suppression Response Time: < 1 ns
-
Diagnostic LED(s): Yes
-
Automatic Shut-Off: Yes
-
Maximum Surge Amps: 36000
-
Outlet Orientation: Single row
-
Output Receptacles: (7) 5-15R
-
UL1363 (Power Tap): UL1363
-
EMI / RFI Filtering: Yes
-
Right-Angle Outlets: Yes
-
Input Cord Gauge Type: 14 gauge; SJT
-
Clamping Voltage (RMS): 150
-
Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
-
Material of Construction: Plastic
-

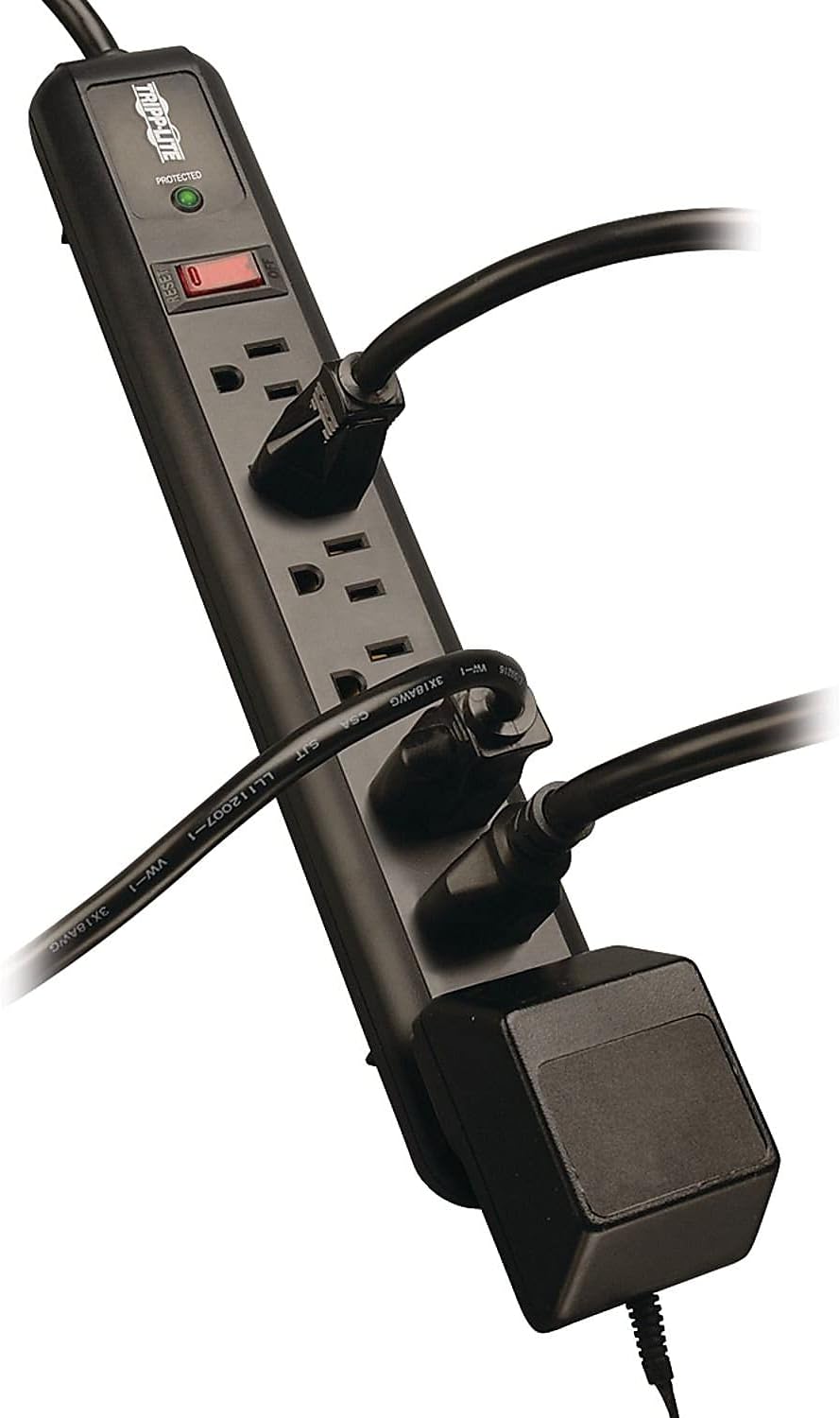

Transformer Accommodation: (4) Yes
-
UL1449 Let Through Rating: 400V
-
Recommended Electrical Service: 120V (110-125V)
-

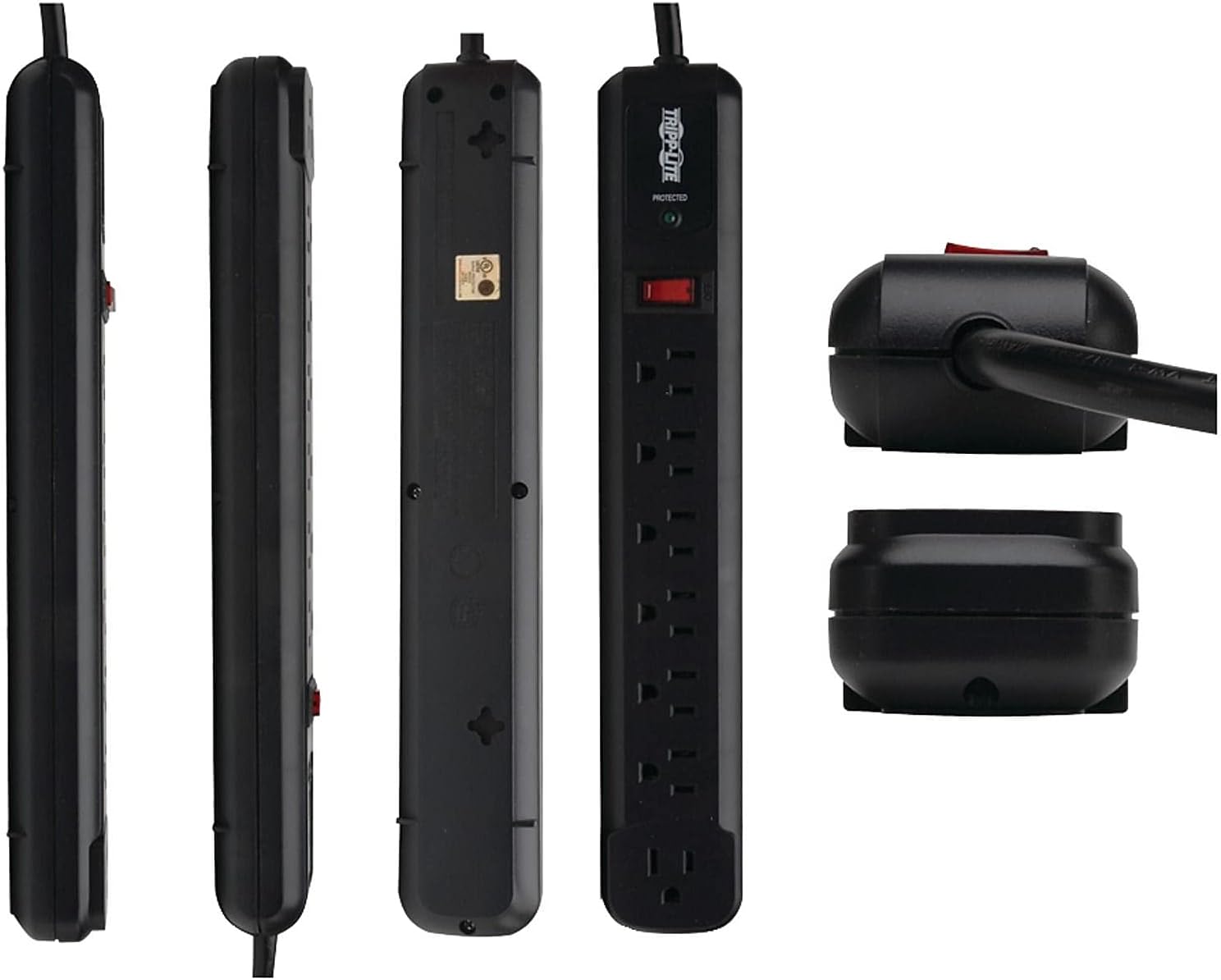

Integrated Keyhole Mounting Slots: Yes
-
Nominal Input Voltage(s) Supported: 120V AC
-
UL1449 3rd Edition (AC Suppression): UL1449 3rd Edition
-
Input Voltage: 120 V AC
-
Surge Energy Rating: 1080 J
-
Protection Type: Noise
