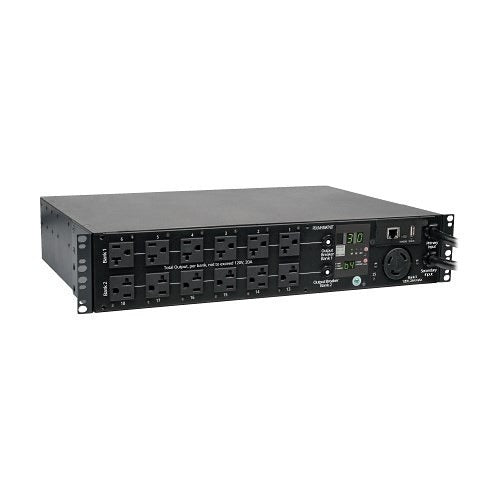

Tripp Lite PDUMH30ATNET Switched Ats Pdu 120V 30A

Product Description

The TRIPP LITE PDUMH30ATNET is a switched automatic transfer switch (ATS) power distribution unit (PDU) rated for 120 volts and 30 amps in a 2U rackmount form factor. It provides monitored, switched outlet control combined with ATS functionality, allowing data center and IT infrastructure managers to switch between two power sources automatically in the event of a primary feed failure. Network-based management enables remote outlet switching and power monitoring without requiring physical access to the rack. This unit is installed by electricians and IT facility technicians in structured rack environments.

The PDUMH30ATNET is suited for 2U rack installations in data centers, server rooms, network closets, and enterprise IT environments where dual-feed power redundancy and remote outlet management are required. The ATS capability makes it appropriate for mission-critical applications where uptime depends on seamless source failover. It operates at 120 volts and supports loads up to 30 amps, covering typical rack-density requirements in enterprise deployments.

Key Features

• Automatic transfer switch (ATS) functionality for dual-source power redundancy
• Switched outlets allow remote power cycling and load management via network interface
• 120V 30A rating supports high-density rack power distribution
• 2U rackmount design fits standard 19-inch equipment racks
• Network management interface enables remote monitoring and outlet control

Compatibility

Designed as an OEM-style replacement and standard-fit unit for enterprise rack enclosures requiring switched ATS PDU functionality at 120V 30A in a 2U form factor.

Installation Notes

Installation should be performed by a licensed electrician or qualified IT facility technician familiar with NEC requirements for branch circuit power distribution. Ensure the primary and secondary power feeds are de-energized before making input connections. Verify that upstream branch circuit breakers are rated to match the 30A input requirement before commissioning. Do not exceed the rated amperage of the unit or individual outlets during operation.
