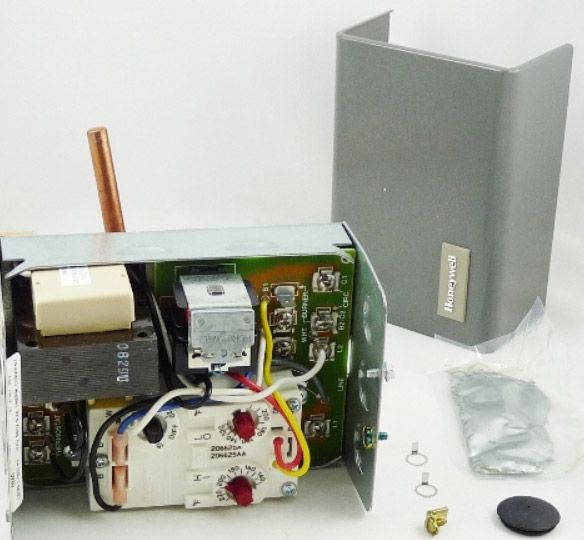

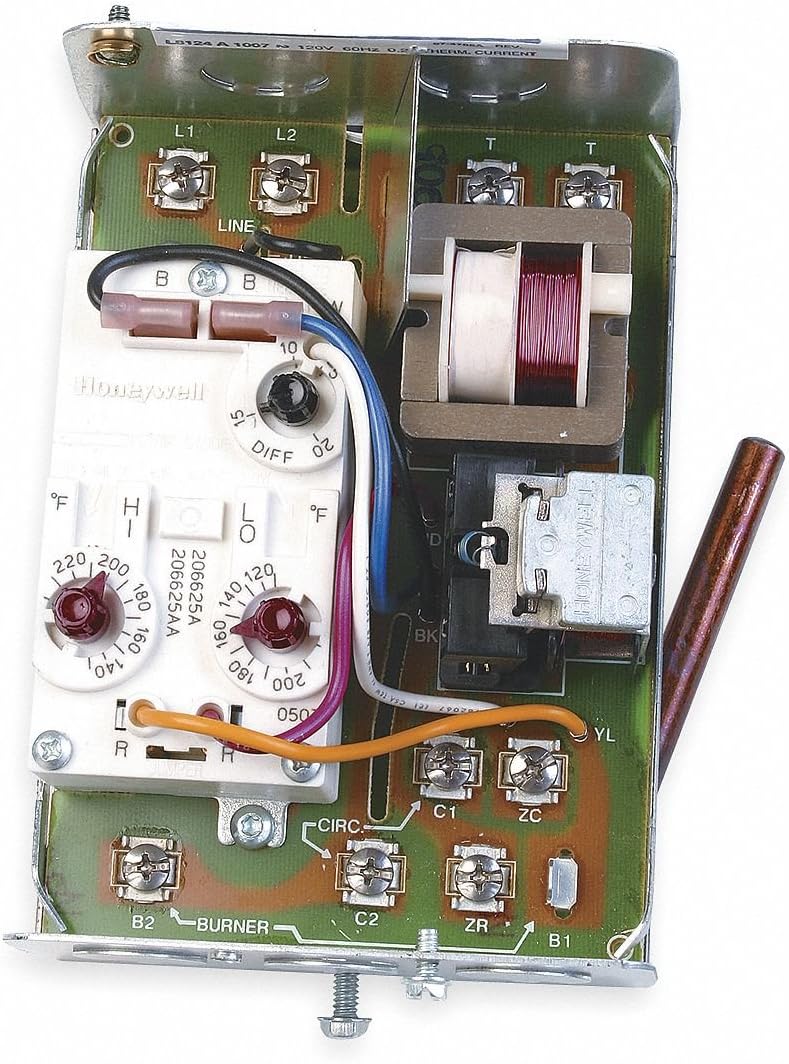

Honeywell L8124L1011 Triple Aquastat Relay 130F-240F

Product Description

The Honeywell L8124L1011 Triple Aquastat Relay is designed for high-limit and low-limit circulator control in forced hydronic heating systems. It combines immersion-type controllers with high-limit protection and circulator control.

• Combines high-limit and circulator control
• Mounts directly to the boiler
• Includes diaphragm powerhead and Micro Switch assembly

Product Highlights

Mounts directly on the boiler and provides control for single-zone systems. Diaphragm powerhead and Micro Switch assembly respond to temperature changes, ensuring efficient operation.

Product Information

Standard Information

• Brand: Honeywell
• Model: L8124L

Technical Specifications

• Voltage: 24
• Pressure: Pressure
• Electrical burner rating: 7.4 amp at 120 VAC, 3.7 amp at 240 VAC full load; 44.4 amp at 120 VAC, 22.7 amp at 240 VAC locked rotor
• Electrical circulator rating: 7.4 amp at 120 VAC, 3.7 amp at 240 VAC full load; 44.4 amp at 120 VAC, 22.2 amp at 240 VAC locked rotor
