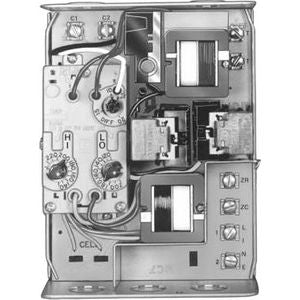

Honeywell R8182D1079 Combination Protectorelay and Hydronic Heating Control 130 - 240 deg F 10 deg F Differential SPDT

Product Description

The Honeywell R8182D1079 Combination Protectorelay and Hydronic Heating Control offers a reliable solution for oil-fired hydronic heating systems. This device ensures efficient temperature control and system safety.

• Temperature range: 130 - 240 degrees F
• SPDT switch type
• Vertical mounting

Product Highlights

Designed for use in intermittent ignition applications, the Honeywell R8182D1079 can control zone valves and circulator zones using its ZC and ZR terminals. This unit includes a 24 VAC thermostat and features a C554A cadmium sulfide flame detector. It shuts off safely in the event of flame failure, requiring a manual reset.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell
• MPN: R8182D1079

Technical Specifications

• Type: Combination Protectorelay and Hydronic Heating Control
• Temperature Range: 130 - 240 degrees F
• Switch Type: SPDT
• Full Load Current: 4.4 A at 120 VAC
• Locked Rotor Amperage: 26.4 A at 120 VAC
• Mounting Type: Vertical
• Dimensions: 7-1/8 inches H x 5-1/4 inches W x 3-7/16 inches D
• Differential: 10 degrees F
