Honeywell L8124E1016 Triple Aquastat Relay 24 Volts

Product Description

The Honeywell L8124E1016 Triple Aquastat Relay, operating at 24 volts, is designed for forced hydronic heating systems. It combines high and low limit protection with circulator control. Ideal for single-zone control in boiler systems.

• Combines high limit protection and low limit control
• Immersion type designed for hydronic heating
• Suitable for forced hydronic heating systems

Product Highlights

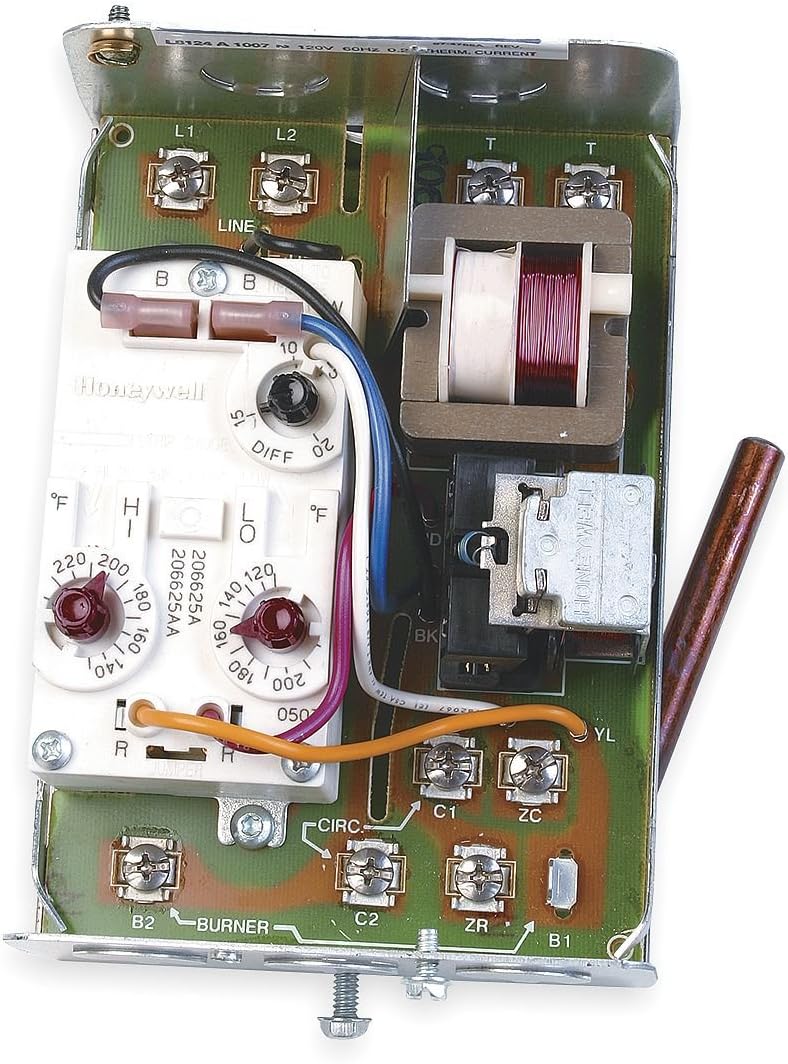

This relay features a diaphragm powerhead and micro switch assembly that respond to temperature changes in boiler water. The L8124E1016 offers high limit protection, low limit control, and circulator control. It mounts directly to the boiler and includes a tube of heat conductive compound.

Product Information

Standard Information

• Brand: Honeywell
• Type: Aquastat Triple W/30 VA Transformer

Technical Specifications

• Model: L8124E
• Voltage: 24 Volts
• Temperature Range: 130 - 240 degrees F (High Limit), 110 - 220 degrees F (Low Limit)
• Switch Type: SPST
• Differential: 10 degrees F (High Limit), 10 - 25 degrees F (Low Limit)
• Insulation Depth: 1-1/2 inches
• Mounting Type: Vertical
• Dimensions: 6-1/8 inches H x 4-1/3 inches W x 3-1/8 inches D
• Pressure: 200 psi on immersion well, 100 psi direct immersion
