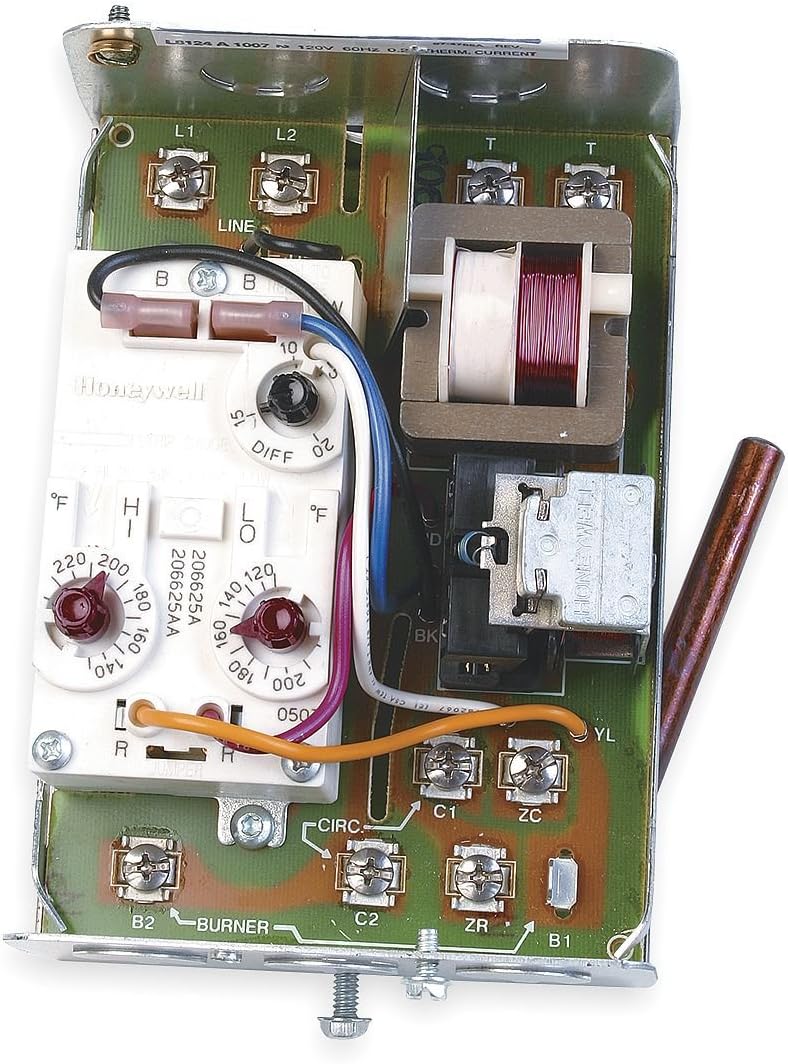

Honeywell L8124E1016 Triple Aquastat Relay 24 Volts

Product Description

The Honeywell L8124E1016 Triple Aquastat Relay is a robust and versatile control designed for forced hydronic heating systems. This unit integrates high limit protection, low limit, and circulator control, ensuring effective system management.

• Includes high and low limit settings ranging from 130 to 240 degrees Fahrenheit for high and 110 to 220 degrees Fahrenheit for low.
• Fully integrated system with SPST switch and a vertical mounting design.
• Compatible with 24 VAC thermostats, enhancing system efficiency.

Product Highlights

The Honeywell L8124E1016 is notable for its multi-zone control capabilities enabling separate circulator and relay for each zone. The inclusion of a diaphragm powerhead and micro switch assembly provide sensitive responses to temperature changes. This model is equipped to handle 200 psi on immersion wells and 100 psi for direct immersion, suited for higher pressure applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L8124E1016

Technical Specifications

• Voltage: 24 Volts
• Switch Style: Limit Switch
• Mounting Type: Vertical
• Temperature Range: 130 - 240 deg F High, 110 - 220 deg F Low
• Switch Action: High and Low Limit
• Load Current A: 7.4 A at 120 V Full, 3.7 A at 240 V Full
