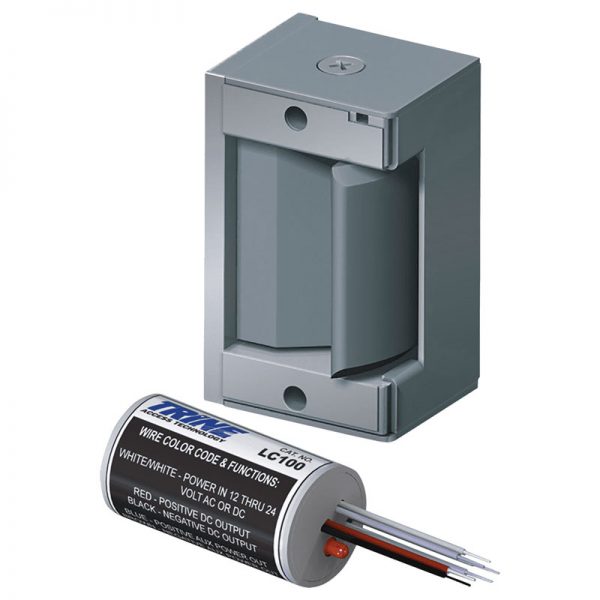

Trine Access Technology Inc 30RS Door Electric Strike Mechanism Fail Safe Continuous 12/24 Volt AC/DC

Product Description

The Trine Access Technology Inc 30RS is an electric strike mechanism designed for secure door access. This unit operates on both twelve and twenty-four Volt AC or DC power. It features a fail-safe locking system that provides secure unlocking with power applied. The compact size is suitable for various types of door installations.

• Accepts a bolt with a throw of up to five eighths inch
• Non-handed unit for flexible installation
• Fail secure standard action for reliable access control

Product Highlights

This electric strike is versatile, fitting a range of security systems and door types.

Product Information

Standard Information

• Manufacturer: Trine Access Technology Inc
• Part Number: CS351390

Technical Specifications

• ANSI Grade: Grade 1
• Frame Material: Hollow metal
• Locking State: Fail-safe (power to lock)
• Maximum Latch Length: Maximum five eighths inch throw
• Mounting: For centerline installations
• Product Type: Component
• Pull Strength: 1000-1500 lbs
• Voltage and Duty Continuity: Selectable twelve or twenty-four Volt DC
• UNSPSC Code: 31162407
