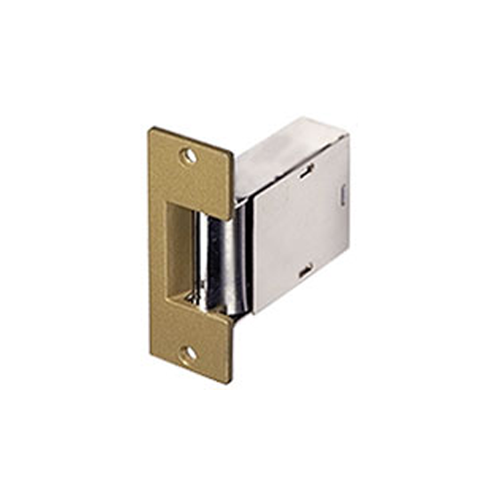

TRINE ACCESS TECHNOLOGY INC 005C Door Electric Strike 8 to 16 Volt AC 1.3 to 2.7 Ampere 1000 Lb Static Load

Product Description

The TRINE ACCESS TECHNOLOGY INC 005C is an electric strike designed for electrified door hardware applications. This model operates at eight to sixteen volts AC and draws from one point three to two point seven amperes. It supports a maximum static load of one thousand pounds. It is suitable for use with wood jambs and iron gates.

• Only one moving part in locking mechanism
• Fail secure locking state
• Heavy-duty latch spring

Product Highlights

This electric strike features non-handed operation, allowing for flexible installation. Its durable construction and reliable locking mechanism make it ideal for securing doors in various settings.

Product Information

Standard Information

• Manufacturer: TRINE ACCESS TECHNOLOGY INC
• Part Number: CS889378

Technical Specifications

• Finish: US26D Satin Chrome
• Frame Material: Wood
• Locking State: Fail-Secure (Power to Unlock)
• Max Latch Length: Maximum five eighths inch throw
• Mounting: For Centerline Installations
• Product Type: For Use with Cylindrical Lock
• Pull Strength: 1000 - 1500 lbs.
• Voltage and Duty: 8-16 Volt AC Intermittent Duty
• UNSPSC Code: 31162407
