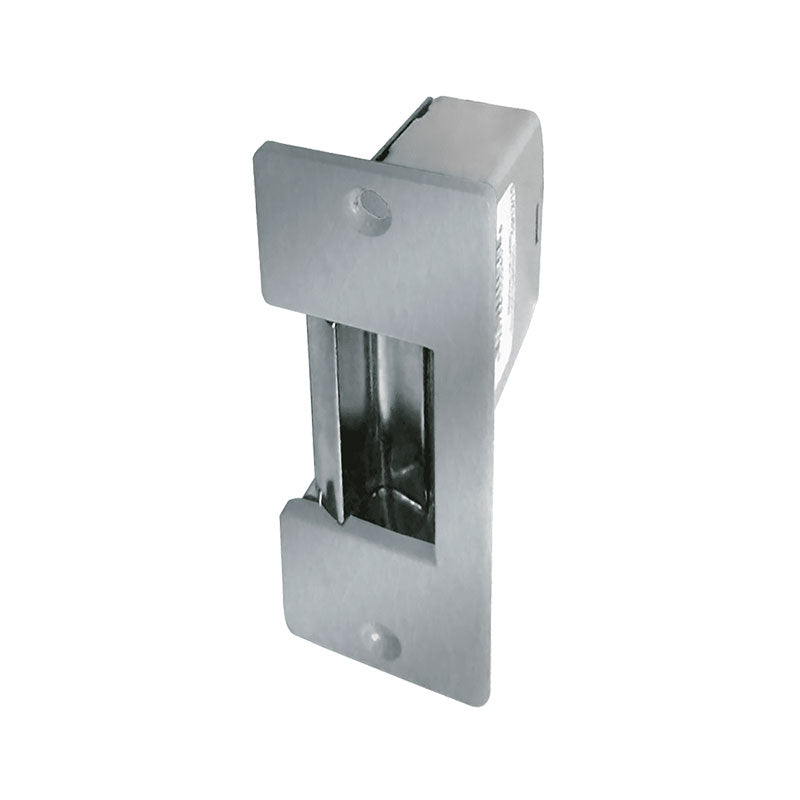

TRINE ACCESS TECHNOLOGY INC 005 Door Electric Strike, Intermittent, 8 to 16 Volt AC, 1.3 to 2.7 Ampere, 1000 Lb Static Load, 5/8 Throw, Powder Coated Brass, With Faceplate, For Wood Jamb and Iron Gate

Product Description

TRINE ACCESS TECHNOLOGY INC offers the Electric Strike MPN 005 designed for electrified door hardware. This electric strike operates on eight to sixteen Volt AC and supports up to 1000 pounds of static load. It is suitable for various installations, including wood jambs and iron gates.

• One moving part in the locking mechanism
• Fail secure operation, unlocking with power
• Designed for cylindrical locks

Product Highlights

This product features a heavy-duty latch spring and non-handed operation.

Product Information

Standard Information

• Manufacturer: TRINE ACCESS TECHNOLOGY INC
• Part Number: CS889097

Technical Specifications

• Finish: US 4 Satin Brass
• Frame Material: Wood
• Locking State: Fail Secure (Power to Unlock)
• Max Latch Length: Maximum 5/8 inch throw
• Mounting: For Centerline Installations
• Product Type: For Use with Cylindrical Lock
• Pull Strength: 1000 - 1500 lbs.
• Sales Category: Electric Strike
• Voltage and Duty: 8-16 Volt AC Intermittent Duty
• UNSPSC Code: 31162407
