Trine 430032D Electric Strike Cylindrical Locks Satin Stainless

Product Description

The TRINE 430032D is an electric strike designed for use with cylindrical locks and deadlatches. It ships with four interchangeable faceplates — CC, CCRD, CC7, and CC8 — giving installers flexibility to match the opening configuration without sourcing additional hardware. The unit is finished in satin stainless steel, suited for commercial and institutional door hardware applications. At 1.4 pounds, the 430032D is a compact, field-ready component intended for installation by licensed locksmiths, access control technicians, and security contractors working on commercial door assemblies.

The 430032D is appropriate for commercial and light-institutional applications where cylindrical locksets or deadlatches are already specified. The four included faceplates allow adaptation to different strike cutout profiles on hollow metal or wood frames, reducing the need for additional trim parts on the job site. This model is a practical choice for retrofit and new-construction access control projects where electric strike integration is required at cylindrical lock prep doors.

Key Features

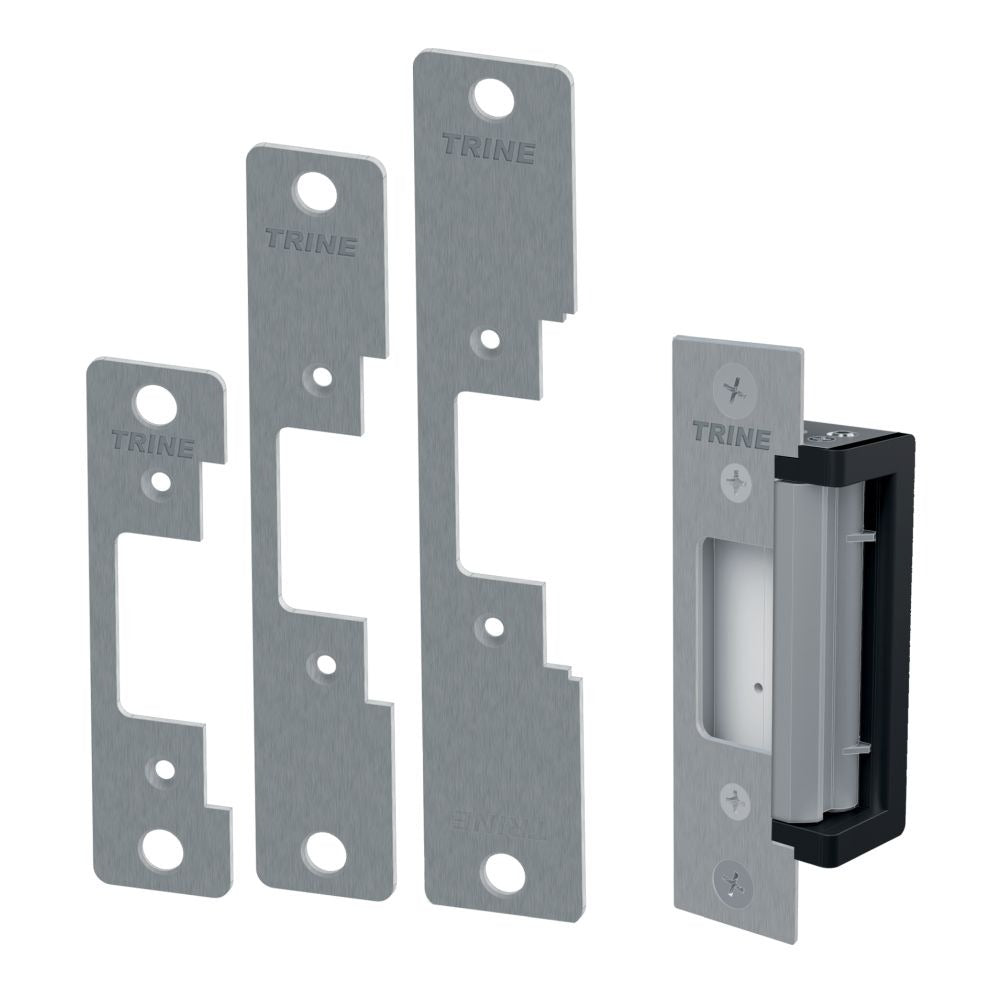

• Includes four faceplates: CC, CCRD, CC7, and CC8 for versatile cutout compatibility
• Satin stainless steel finish for corrosion resistance in high-traffic commercial environments
• Compatible with cylindrical locks and deadlatches — two of the most common commercial lock types
• Single-unit quantity ships ready for field installation
• Lightweight at 1.4 pounds for straightforward handling during installation

Compatibility

Designed as an OEM-style electric strike replacement and new-installation option for doors prepped for cylindrical locks and deadlatches. The included CC, CCRD, CC7, and CC8 faceplates support common strike cutout configurations on hollow metal and wood frames.

Installation Notes

Installation should be performed by a licensed locksmith or qualified access control technician. De-energize the access control circuit and confirm the door frame prep matches one of the included faceplate profiles before beginning work. Verify local electrical and fire code requirements — including IBC and NFPA 80 where applicable — when installing electric strikes on rated assemblies. Do not force the strike keeper or modify the frame cutout beyond the manufacturer-specified dimensions.
