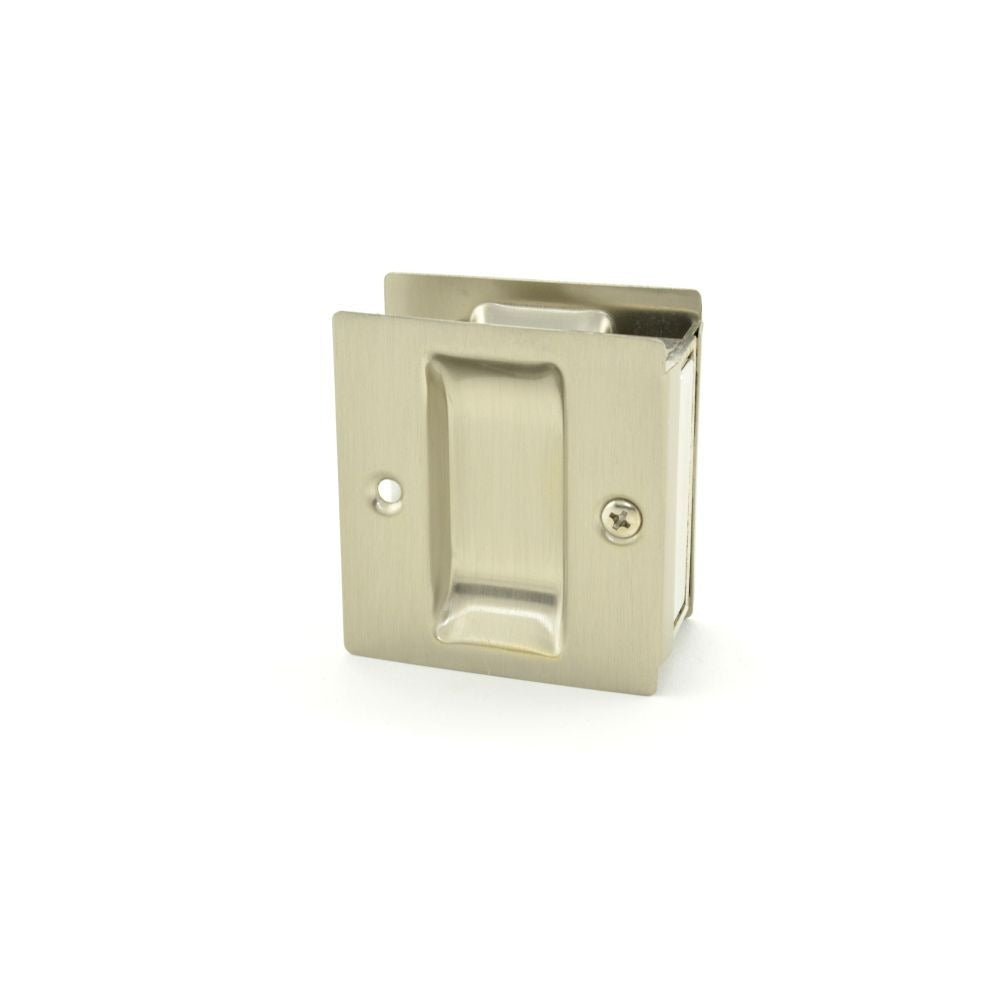

Trimco 1064619 Passage Pocket Door Lock Satin Nickel

Product Description

The TRIMCO 1064619 is a passage pocket door lock designed for interior sliding pocket doors that require a latch mechanism without a keyed or privacy function. It features a square cutout configuration and a satin nickel finish. The lock body fits into a routed pocket in the door edge, allowing the door to slide flush with the wall when open. This hardware is typically installed by carpenters, finish contractors, or door hardware specialists working on residential or light commercial interior door applications. At 0.22 pounds, the unit is compact and lightweight, with a footprint of 2.68 inches by 2.36 inches and a body depth of 1.65 inches.

The 1064619 suits interior pocket door installations where a passage function is needed, meaning no locking mechanism is required and the door can be operated freely from either side. It is appropriate for hallway doors, closet access doors, and other non-secure interior openings. The square cutout design requires a matching square mortise prep in the door edge. This hardware is sold as an individual unit.

Key Features

• Passage function — no key or turn-button locking, free operation from both sides
• Square cutout configuration for standard square mortise door prep
• Satin nickel finish for corrosion resistance and a clean, contemporary appearance
• Compact body measuring 2.68 inches by 2.36 inches by 1.65 inches
• Lightweight at 0.22 pounds, minimizing load on pocket door hardware

Compatibility

Designed as an OEM-style replacement or new-installation passage lock for interior pocket doors with a square cutout mortise preparation.

Installation Notes

Installation is typically performed by a carpenter or door hardware installer. The door edge must be prepped with a square mortise cutout sized to match the lock body before installation. Ensure the pocket door frame and track hardware are fully in place and the door is positioned correctly before fitting the lock body. Consult local building codes for interior door hardware requirements on accessible or commercial applications.
