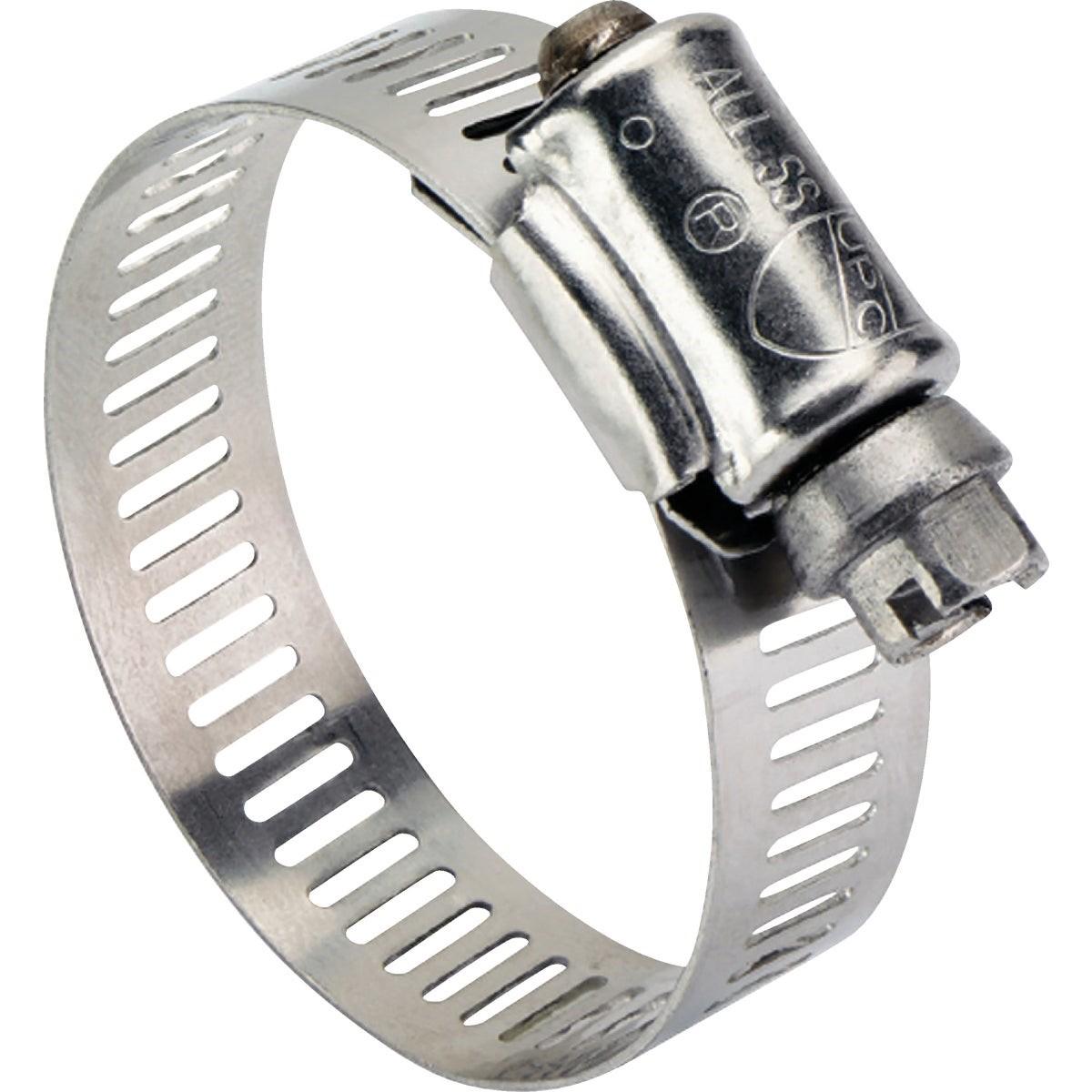

Tridon 6799553 Stainless Steel Hose Clamp 5-7 in

Product Description

The TRIDON 6799553 is an all stainless steel hose clamp designed for secure, corrosion-resistant clamping in plumbing and fluid system applications. The band, housing, and screw are all fabricated from 300 series stainless steel, providing consistent performance in wet, buried, or corrosive environments. The clamp covers a clamping range of 5 inches to 7 inches and features a 0.5 inch wide band for broad contact and even load distribution. The 5/16 inch slotted hex head screw allows installation with either a flat-blade screwdriver or a hex driver. Licensed plumbers and mechanical contractors specify this clamp where code-compliant, long-service fittings are required.

This clamp is suited for residential and commercial plumbing installations including drain, waste, and vent piping connections where hose or flexible coupling terminations require a tight, reliable seal. The all stainless steel construction and UPC-compliant housing make it an appropriate choice for underground installations, a common requirement in below-grade drain line work and direct-burial piping applications. It is sold individually and typically specified in quantity for service van stock or project material lists.

Key Features

• 300 series stainless steel band, housing, and screw for full corrosion resistance
• Clamping range of 5 inches to 7 inches suits standard large-diameter hose and coupling ends
• 0.5 inch wide band distributes clamping load evenly across the hose surface
• 5/16 inch slotted hex head screw accepts both flat-blade and hex drive tools
• UPC-approved shield on housing rated for underground use

Compatibility

Designed as an OEM-style replacement or new-installation clamp for large-diameter flexible couplings and hose connections in residential and commercial plumbing systems where UPC compliance and underground-rated hardware are required.

Installation Notes

Installation is performed by a licensed plumber or qualified mechanical contractor. Shut off the water supply or drain the line completely before removing or repositioning any hose clamp on a pressurized system. Use a calibrated torque driver or tighten incrementally and evenly to avoid band distortion — do not overtighten. Work must comply with the Uniform Plumbing Code (UPC) and any applicable local amendments for underground or concealed piping.

Technical Specifications

• Clamping Range: 5 inches to 7 inches
• Band Width: 0.5 inches
• Screw Size: 5/16 inches slotted hex head
• Material: 300 series stainless steel (band, housing, screw)
• Code Compliance: UPC (Uniform Plumbing Code) approved for underground use
• Weight: 0.16 pounds
• Unit of Measure: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6799553
