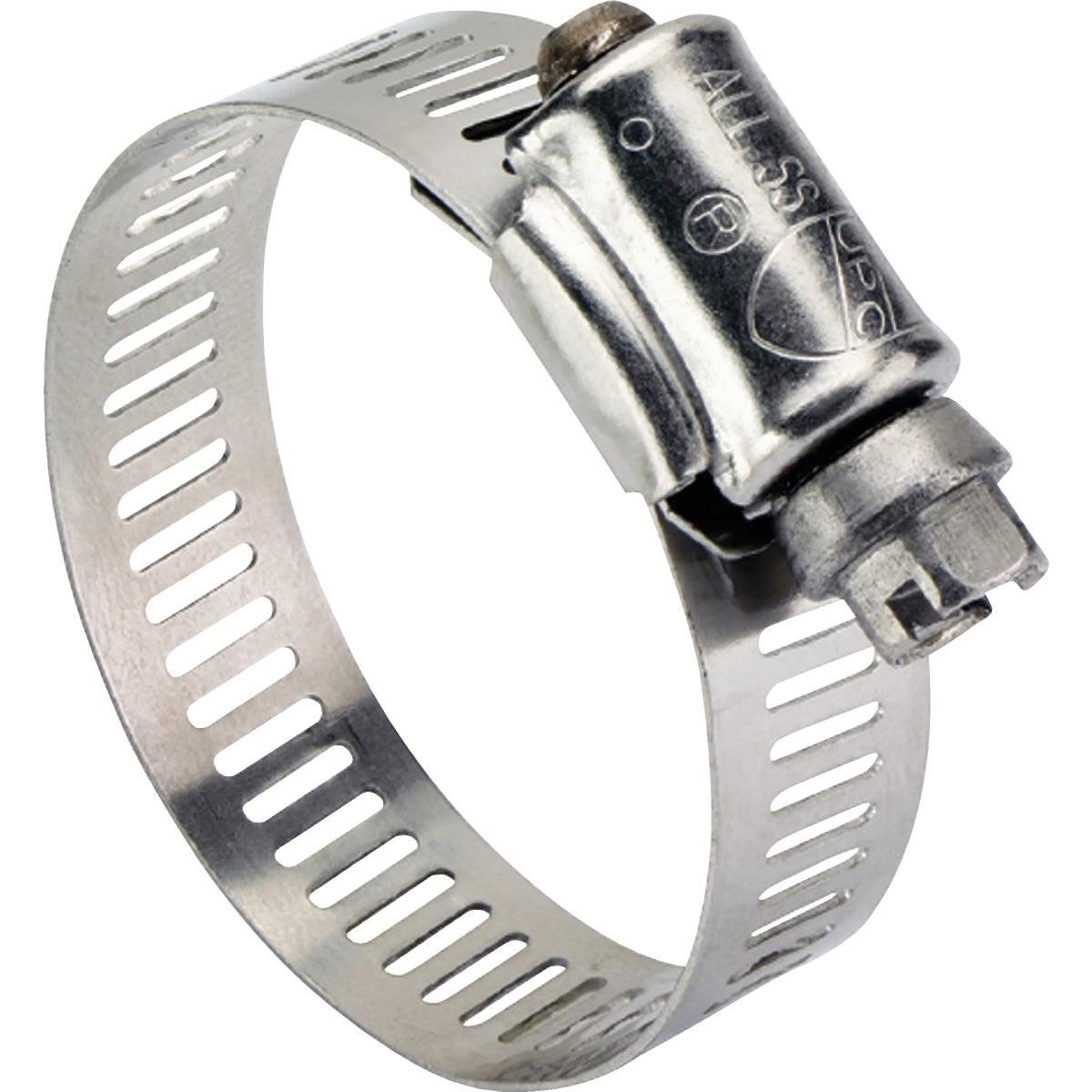

Tridon 6772553 All Stainless Steel Hose Clamp 3-5 in

Product Description

The TRIDON 6772553 is an all stainless steel hose clamp designed for secure, corrosion-resistant clamping across a diameter range of 3 inches to 5 inches. The band, housing, and screw are all constructed from 300 series stainless steel, making it suitable for demanding environments including underground installations. The band measures 1/2 inch wide, and the screw uses a 5/16 inch slotted hex head for easy tightening with standard tools. This clamp is approved under the Uniform Plumbing Code (UPC) and is a reliable choice for plumbers and pipefitters working on residential and commercial piping systems where long-term corrosion resistance is required.

This clamp is commonly used in plumbing, HVAC, and general mechanical applications where hoses, tubing, or flexible connectors must be secured to fittings within the 3 inch to 5 inch diameter range. The UPC-approved shield on the housing qualifies it for underground use, making it well-suited for below-grade plumbing rough-in work and buried service connections. Plumbing contractors and service technicians will find this clamp appropriate for both new construction and retrofit projects where code-compliant, corrosion-resistant hardware is specified.

Key Features

• 300 series stainless steel band, housing, and screw for full corrosion resistance
• Clamp range: 3 inches to 5 inches diameter
• 1/2 inch wide band for broad clamping surface and even pressure distribution
• 5/16 inch slotted hex head screw accepts both flathead and hex drivers
• UPC-approved housing shield rated for underground installation

Compatibility

Designed for use with hoses and flexible connectors in the 3 inch to 5 inch outside diameter range. Suitable for plumbing applications requiring UPC-compliant, all stainless steel clamp hardware including underground service installations.

Installation Notes

Installation is performed by licensed plumbers or qualified mechanical contractors. Shut off water supply and depressurize the line before fitting or replacing clamps on active systems. Use a flathead screwdriver or 5/16 inch hex driver to tighten the screw — do not overtighten, as excess torque can deform the band or damage soft hose materials. Follow applicable IPC and UPC guidelines for underground clamp installations.

Technical Specifications

• Clamp Range: 3 inches to 5 inches
• Band Width: 1/2 inch
• Screw Head: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, and screw)
• Weight: 0.104 pounds
• Code Approval: UPC (Uniform Plumbing Code) approved for underground use
• Sold As: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6772553
