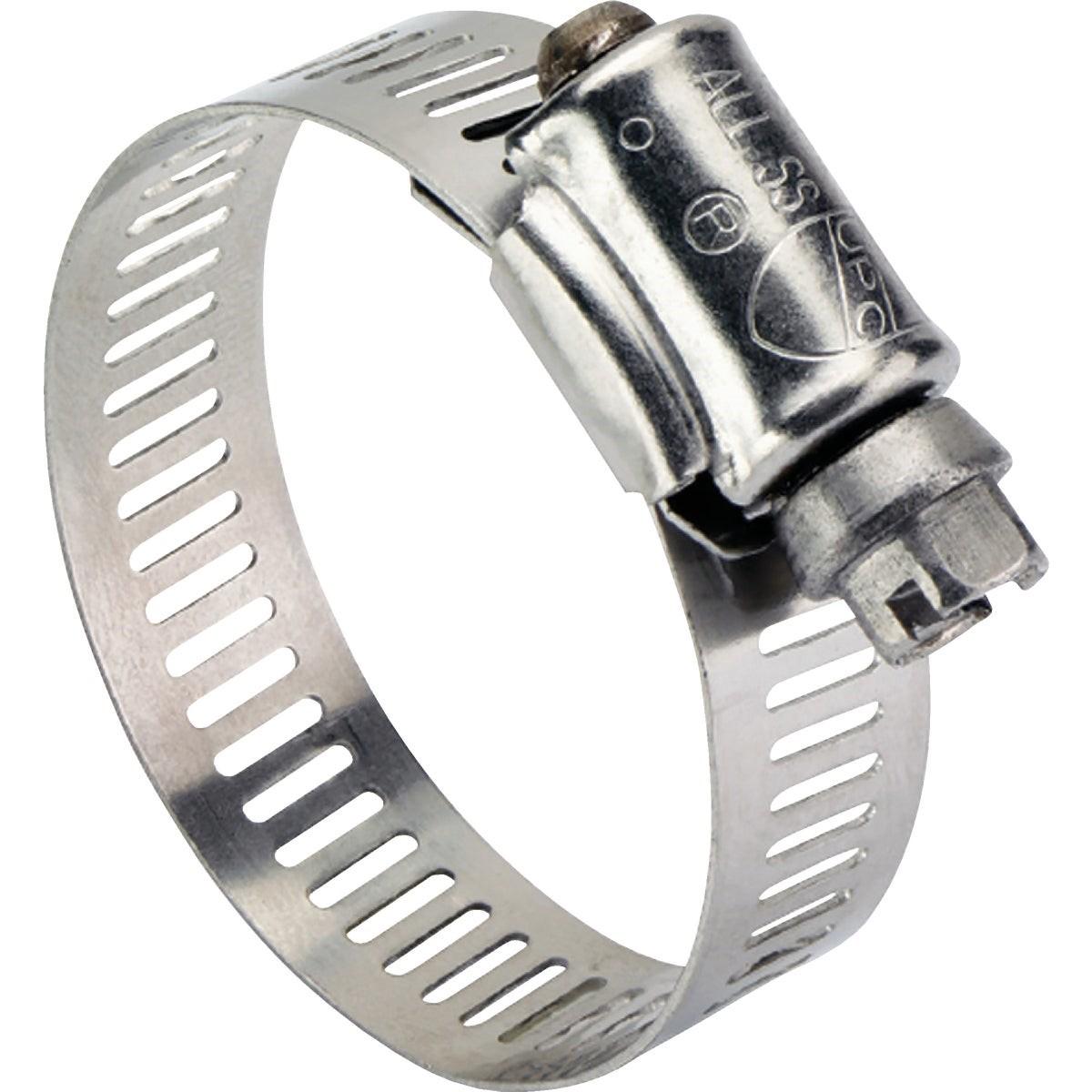

Tridon 6764553 Stainless Steel Hose Clamp 2.5-4.5 in

Product Description

The TRIDON 6764553 is a Series 67 all stainless steel hose clamp designed for secure, corrosion-resistant clamping in plumbing, HVAC, and industrial piping applications. The band, housing, and screw are all constructed from 300 series stainless steel, delivering consistent performance in wet, harsh, or underground environments. The band measures 0.5 inches wide, and the screw uses a 5/16 inch slotted hex head for reliable torque with standard tools. The clamp adjusts to fit hose or pipe diameters ranging from 2.5 inches to 4.5 inches, making it versatile across a wide range of connection sizes. Licensed plumbers and pipefitters rely on this clamp for both above-ground and below-grade installations.

The 6764553 is suited for residential and light commercial plumbing systems, HVAC ducting, and general-purpose piping connections where corrosion resistance and code compliance are required. The housing shield carries Uniform Plumbing Code (UPC) approval for underground use, making it appropriate for buried piping connections and below-slab installations where moisture exposure is constant. It is sold individually and is well-suited for service calls, repairs, and new installations requiring a dependable stainless clamp in the 2.5 to 4.5 inch range.

Key Features

• Band, housing, and screw all constructed from 300 series stainless steel for full corrosion resistance
• Clamp range spans 2.5 inches to 4.5 inches to fit a variety of hose and pipe diameters
• 0.5 inch wide band provides broad contact surface for even clamping pressure
• 5/16 inch slotted hex head screw accepts both flathead and hex drive tools
• UPC-approved housing shield rated for underground use

Compatibility

Designed as an OEM-style replacement or direct-use stainless hose clamp for plumbing, HVAC, and general piping applications requiring a 2.5 to 4.5 inch clamping range with UPC-compliant underground-rated construction.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters following applicable Uniform Plumbing Code (UPC) requirements. Shut off water supply or relieve system pressure before removing or installing clamps on active lines. Use a 5/16 inch hex driver or flathead screwdriver to tighten the screw; do not overtighten to the point of deforming the hose or band. For underground installations, verify that all fittings and adjacent components also meet UPC underground-use requirements.

Technical Specifications

• Clamp Range: 2.5 inches to 4.5 inches
• Band Width: 0.5 inches
• Screw Head: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, and screw)
• Certification: UPC (Uniform Plumbing Code) approved for underground use
• Weight: 0.09 pounds
• Sold As: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6764553
