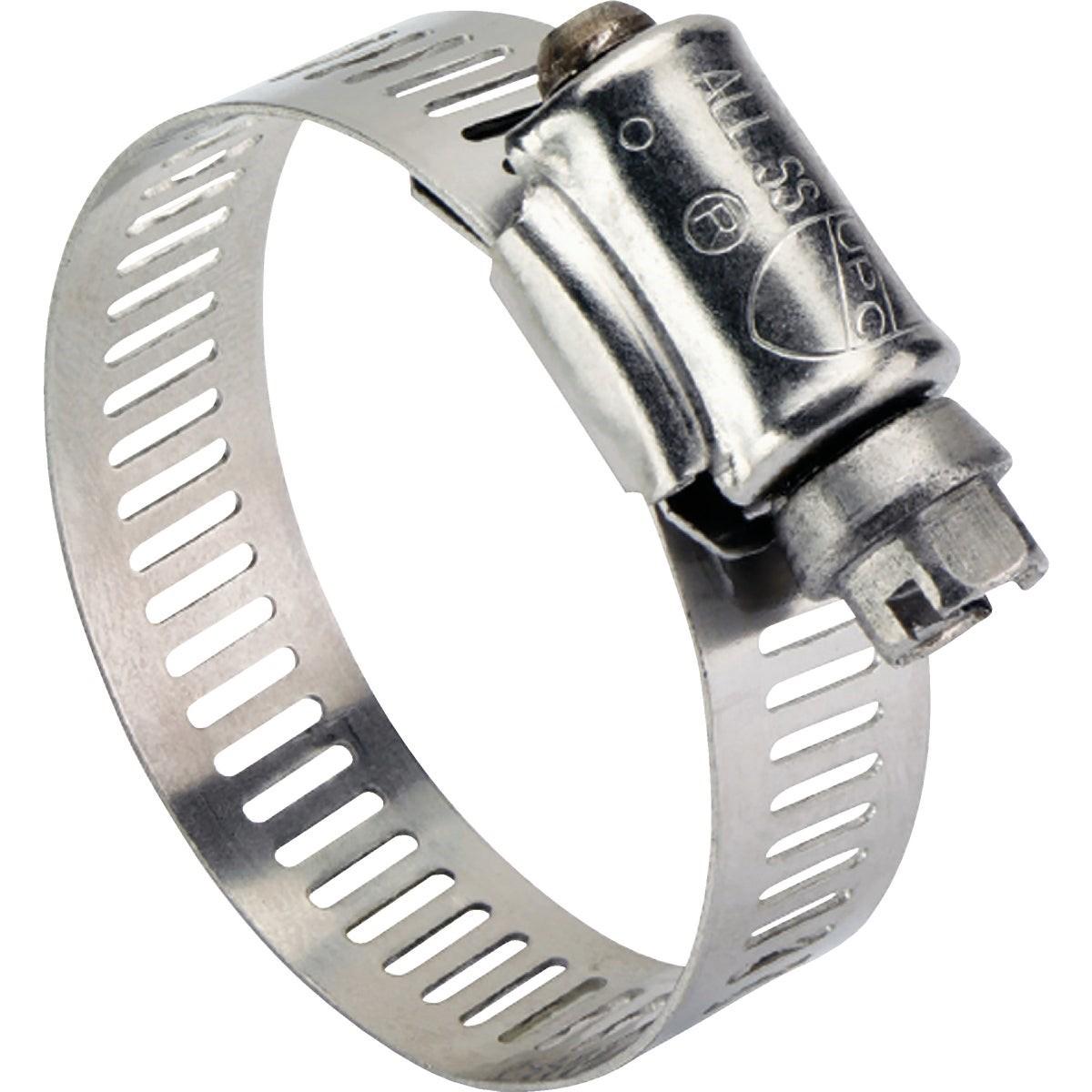

Tridon 6752553 Stainless Steel Hose Clamp 2-3/4 to 3-3/4 in

Product Description

The TRIDON 6752553 is a Series 67 all stainless steel hose clamp designed for secure, corrosion-resistant clamping across a wide range of piping and hose applications. The band, housing, and screw are all constructed from 300 series stainless steel, making this clamp suitable for wet, corrosive, and underground environments. The band measures 1/2 inch wide, and the screw features a 5/16 inch slotted hex head for reliable tightening with standard hand tools. This clamp is installed by plumbers, pipefitters, and HVAC technicians wherever a durable, fully stainless clamp is required.

The 6752553 covers a clamping range of 2-3/4 inches to 3-3/4 inches, making it appropriate for medium-diameter hose and pipe connections in residential and commercial plumbing, HVAC, and related mechanical systems. The UPC-approved shield on the housing qualifies this clamp for direct underground burial applications, which is a critical requirement on many commercial and municipal plumbing jobs. Technicians working on drain, waste, vent, or supply piping where soil contact is expected will find this clamp meets code requirements without additional protection.

Key Features

• Full 300 series stainless steel construction on band, housing, and screw for maximum corrosion resistance
• Clamping range of 2-3/4 inches to 3-3/4 inches suits medium-diameter hose and pipe
• 1/2 inch wide band distributes clamping force evenly across the joint
• 5/16 inch slotted hex head screw accepts both flathead screwdriver and hex drive tools
• UPC-approved housing shield rated for underground installation

Compatibility

Designed as an OEM-style replacement or new-installation stainless hose clamp for plumbing, HVAC, and mechanical piping systems requiring a 2-3/4 inch to 3-3/4 inch clamp diameter with UPC-compliant underground rating.

Installation Notes

Installation is performed by licensed plumbers or qualified mechanical technicians. Depressurize and drain the line before removing or repositioning any hose clamp. Tighten the 5/16 inch hex head screw with a nut driver or flathead screwdriver to a snug, even fit — do not overtighten, as excessive torque can deform the band or damage the hose. Underground installations must comply with local Uniform Plumbing Code requirements and applicable local amendments.

Technical Specifications

• Clamp Range: 2-3/4 inches to 3-3/4 inches
• Band Width: 1/2 inch
• Screw Size: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, screw)
• Certification: UPC (Uniform Plumbing Code) approved for underground use
• Weight: 0.082 pounds
• Sold As: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6752553
