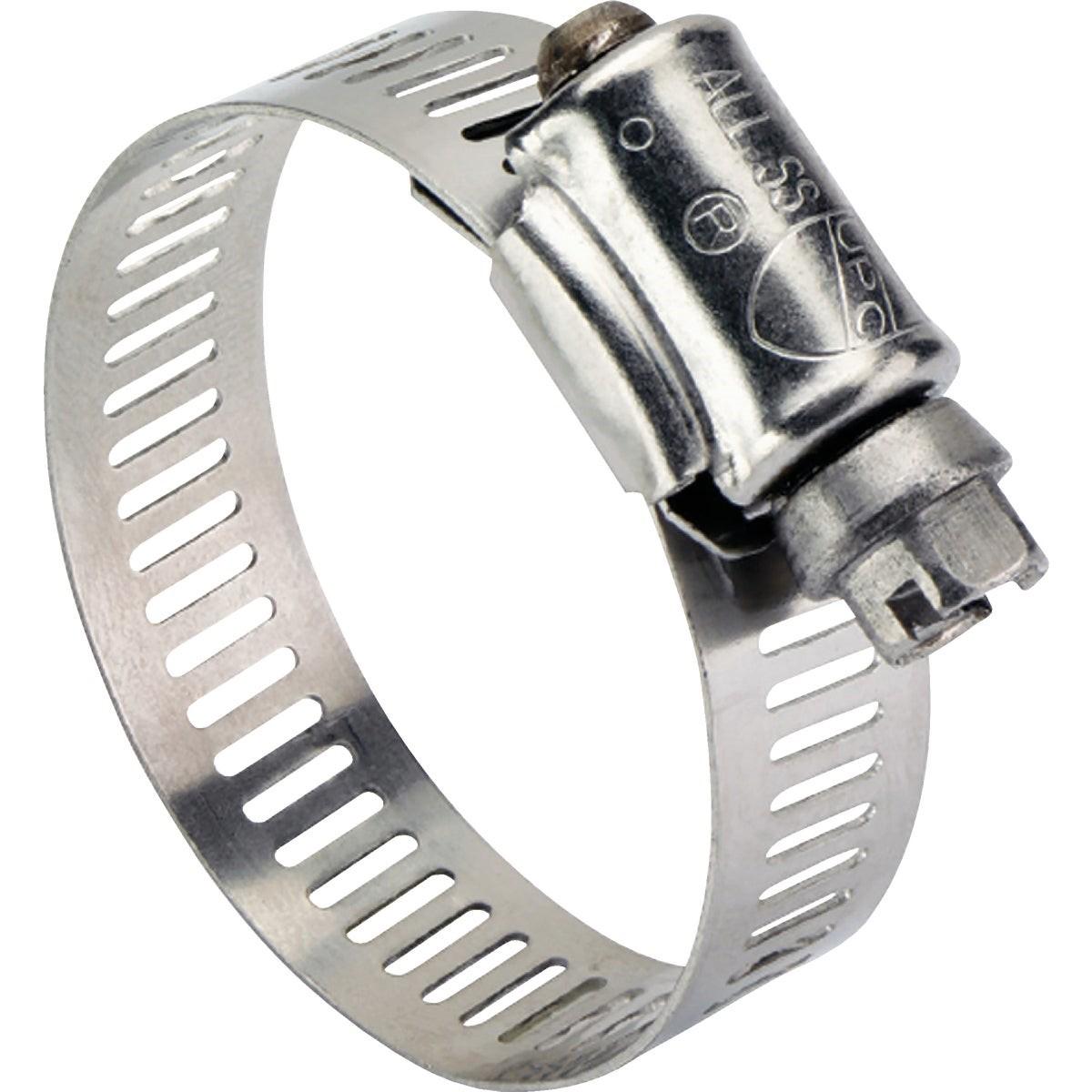

Tridon 6744553 Stainless Steel Hose Clamp 2.25-3.25 in

Product Description

The TRIDON 6744553 is a 67 Series all stainless steel hose clamp rated for clamping diameters from 2.25 inches to 3.25 inches. The band, housing, and screw are all manufactured from 300 series stainless steel, making this clamp resistant to corrosion in wet and chemically active environments. The band measures 0.5 inches wide, and the screw uses a 5/16 inch slotted hex head for easy tightening with standard hand tools. The housing shield carries Uniform Plumbing Code approval for underground installation, making it suitable for buried plumbing and drainage applications. Plumbers, pipefitters, and mechanical contractors use this clamp in both above-ground and below-grade service.

This clamp is well suited for residential and light commercial plumbing, HVAC condensate and coolant lines, pool and spa plumbing, and irrigation systems where corrosion resistance and underground approval are required. The all-stainless construction makes it a reliable choice in coastal environments, wastewater applications, and anywhere galvanic corrosion or moisture exposure would degrade a mixed-material clamp. The 2.25 to 3.25 inch clamping range covers common pipe and hose diameters found in standard plumbing and mechanical installations.

Key Features

• Band, housing, and screw all 300 series stainless steel for full corrosion resistance
• Clamping range: 2.25 inches to 3.25 inches
• Band width: 0.5 inches for broad sealing surface
• 5/16 inch slotted hex head screw accepts both slotted and hex drivers
• UPC-approved housing shield rated for underground use

Compatibility

Designed as an OEM-style replacement or new-installation hose clamp for plumbing, HVAC, pool, and mechanical systems requiring a clamping range of 2.25 inches to 3.25 inches with all-stainless construction.

Installation Notes

Installation is performed by licensed plumbers or qualified mechanical technicians. Shut off flow and depressurize the line before removing or installing any hose clamp. Tighten with a 5/16 inch hex driver or flat-blade screwdriver to a snug fit without over-torquing the band. For underground installations, verify compliance with local Uniform Plumbing Code requirements before backfilling.

Technical Specifications

• Clamping Range: 2.25 inches to 3.25 inches
• Band Width: 0.5 inches
• Screw Drive: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, screw)
• Certification: UPC (Uniform Plumbing Code) approved for underground use
• Weight: 0.07 pounds
• Series: 67

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6744553
