Tridon 6740553 Stainless Steel Hose Clamp 2 to 3 Inches

Product Description

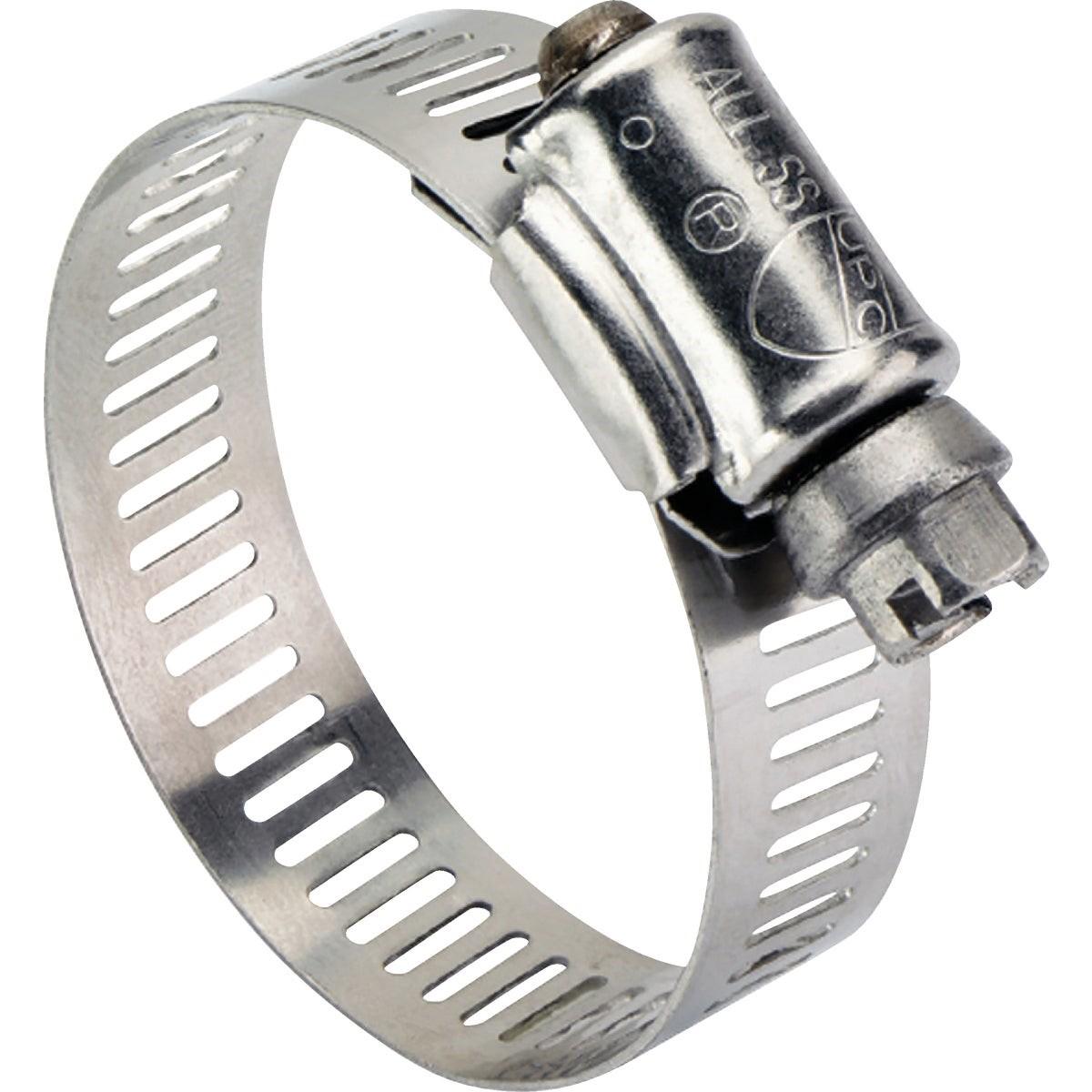

The TRIDON 6740553 is a 67 Series all stainless steel hose clamp rated for a clamping range of 2 inches to 3 inches. The band, housing, and screw are all constructed from 300 series stainless steel, providing consistent corrosion resistance across every component. The band measures 1/2 inch wide, and the screw uses a 5/16 inch slotted hex head for reliable tightening with standard hand tools. This clamp meets UPC (Uniform Plumbing Code) requirements and carries an approved shield on the housing for underground installation. Plumbers, pipefitters, and mechanical contractors install this clamp in plumbing, HVAC, and general piping applications where a fully corrosion-resistant connection is required.

This clamp is suited for residential and light commercial applications where hose or tubing with an outside diameter between 2 inches and 3 inches must be secured. The all stainless construction makes it appropriate for wet, buried, or corrosive environments. Underground plumbing installations benefit from the UPC-approved housing shield, which is specifically rated for below-grade use. Sold individually, it fits neatly into service van inventory for quick single-clamp replacements or new installations.

Key Features

• Full 300 series stainless steel construction — band, housing, and screw
• Clamping range: 2 inches to 3 inches
• 1/2 inch wide band for broad surface contact and even clamping pressure
• 5/16 inch slotted hex head screw for dual-tool compatibility
• UPC (Uniform Plumbing Code) listed for underground use
• Housing shield approved for direct buried applications

Compatibility

Designed as a standard 67 Series replacement hose clamp for plumbing, HVAC, and mechanical piping connections using hose or tubing with an outside diameter in the 2 inch to 3 inch range.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Confirm the outside diameter of the hose or tubing falls within the 2 inch to 3 inch clamping range before installation. Use a flat-blade screwdriver or 5/16 inch hex driver to tighten the screw — do not overtighten, as excess torque can deform the hose or strip the screw head. For underground installations, verify compliance with local amendments to the Uniform Plumbing Code.

Technical Specifications

• Clamping Range: 2 inches to 3 inches
• Band Width: 1/2 inch
• Screw Drive: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, screw)
• Certification: UPC (Uniform Plumbing Code) approved, underground use
• Weight: 0.081 pounds
• Unit of Measure: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6740553
