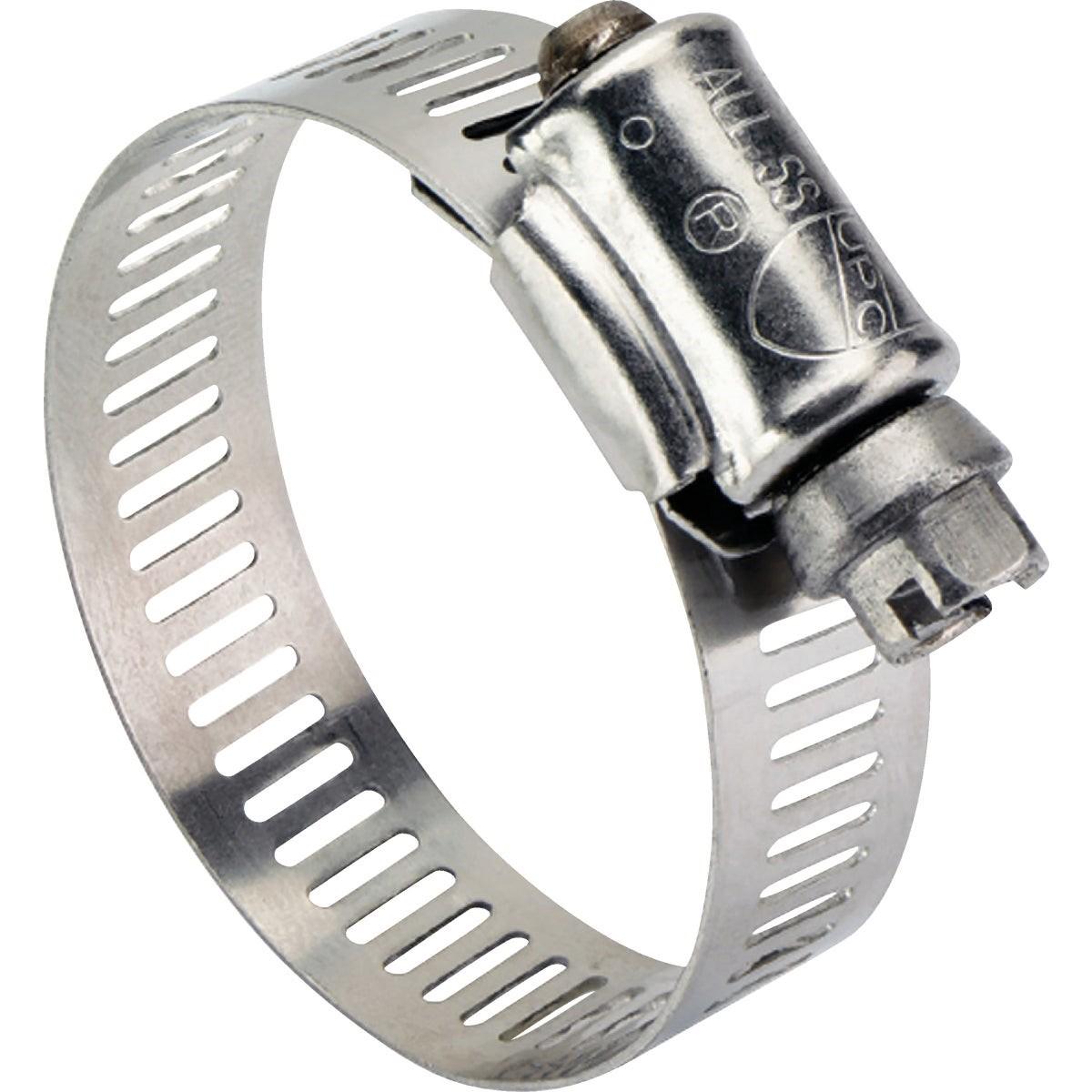

Tridon 6732553 Stainless Steel Hose Clamp 1.5-2.5 in

Product Description

The TRIDON 6732553 is an all stainless steel hose clamp rated for clamping range from 1.5 inches to 2.5 inches. The band, housing, and screw are all manufactured from 300 series stainless steel, making this clamp resistant to corrosion in demanding environments. The band measures 0.5 inches wide and the screw uses a 5/16-inch slotted hex head for consistent tightening torque. This clamp is sold individually and suits plumbing, HVAC, and general trade applications where a fully corrosion-resistant fastener is required. Licensed plumbers, pipefitters, and HVAC technicians are the typical installers.

The 6732553 is designed for use in residential and light commercial plumbing and mechanical systems where hose-to-fitting connections must be secured reliably. The UPC-approved shield on the housing qualifies this clamp for underground installation, making it appropriate for buried or below-grade hose and pipe connections. Its all stainless construction suits wet, humid, or chemically active environments where carbon steel clamps would corrode prematurely.

Key Features

• Full 300 series stainless steel construction — band, housing, and screw
• Clamping range: 1.5 inches to 2.5 inches
• 0.5-inch wide band for broad clamping surface and even load distribution
• 5/16-inch slotted hex head screw for standard tool compatibility
• UPC-approved shield on housing rated for underground use
• 67 Series clamp design for all stainless applications

Compatibility

Designed as an OEM-style replacement or direct-fit hose clamp for residential and commercial plumbing and mechanical systems requiring a UPC-compliant, all stainless steel clamp in the 1.5-inch to 2.5-inch diameter range.

Installation Notes

Installation is typically performed by a licensed plumber or mechanical contractor. Shut off the relevant water or fluid supply before removing or installing hose clamps. Use a 5/16-inch nut driver or slotted screwdriver to seat the clamp; do not overtighten, as excessive torque can damage hose material or distort the band. For underground installations, verify local code compliance with the Uniform Plumbing Code requirements applicable to the job site.

Technical Specifications

• Clamping Range: 1.5 inches to 2.5 inches
• Band Width: 0.5 inches
• Screw Size: 5/16 inches slotted hex head
• Material: 300 Series Stainless Steel (band, housing, and screw)
• Series: 67
• Underground Rating: UPC-approved shield on housing
• Weight: 0.062 pounds
• Unit of Measure: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6732553
