Tridon 6728553 Stainless Steel Hose Clamp 1-1/4 to 2-1/4 in

Product Description

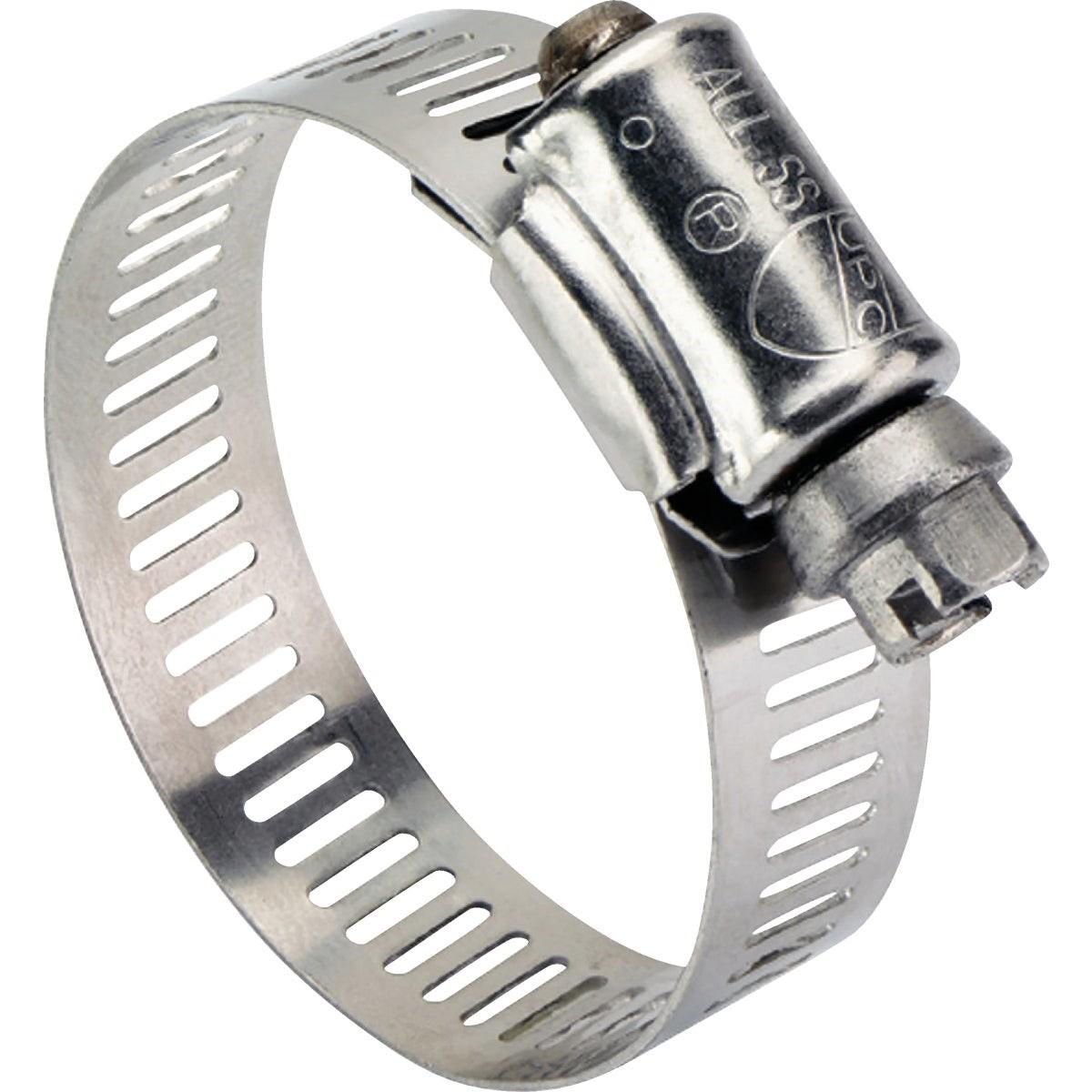

The TRIDON 6728553 is a 67 Series all stainless steel hose clamp designed for secure, corrosion-resistant clamping in plumbing and fluid-handling applications. The band, housing, and screw are all constructed from 300 series stainless steel, making this clamp suitable for demanding environments including underground installations. The band measures 1/2 inch wide, and the screw uses a 5/16 inch slotted hex head for reliable tightening. This clamp covers a clamping range of 1-1/4 inches to 2-1/4 inches, fitting a variety of hose and tubing diameters. Licensed plumbers and pipefitters are the primary installers of this hardware.

This hose clamp is suited for residential and light commercial plumbing, irrigation, and fluid-transfer systems where corrosion resistance and code compliance are required. The UPC-approved shield on the housing makes it appropriate for underground use, addressing burial applications where moisture and soil contact are constant. It is sold individually and is compatible with standard hose and tubing within its clamping range.

Key Features

• Band, housing, and screw all in 300 series stainless steel for full corrosion resistance
• 1/2 inch wide band for strong, even clamping pressure
• 5/16 inch slotted hex head screw for easy installation with common hand tools
• Clamping range of 1-1/4 inches to 2-1/4 inches
• UPC-approved housing shield rated for underground use

Compatibility

Designed as an OEM-style replacement and general-use hose clamp for residential and commercial plumbing systems requiring a 1-1/4 inch to 2-1/4 inch clamp diameter in 67 Series stainless steel.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter. Shut off water supply and depressurize the line before removing or installing hose clamps. A slotted or hex-head screwdriver or nut driver is required for tightening the screw. Follow applicable Uniform Plumbing Code guidelines for underground and buried installations.

Technical Specifications

• Clamping Range: 1-1/4 inches to 2-1/4 inches
• Band Width: 1/2 inch
• Screw Head: 5/16 inch slotted hex head
• Material: 300 series stainless steel
• Series: 67
• Code Compliance: UPC approved for underground use
• Weight: 0.059 pounds
• Unit of Measure: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6728553
