Tridon 6720553 All Stainless Steel Hose Clamp 3/4-1-3/4 in

Product Description

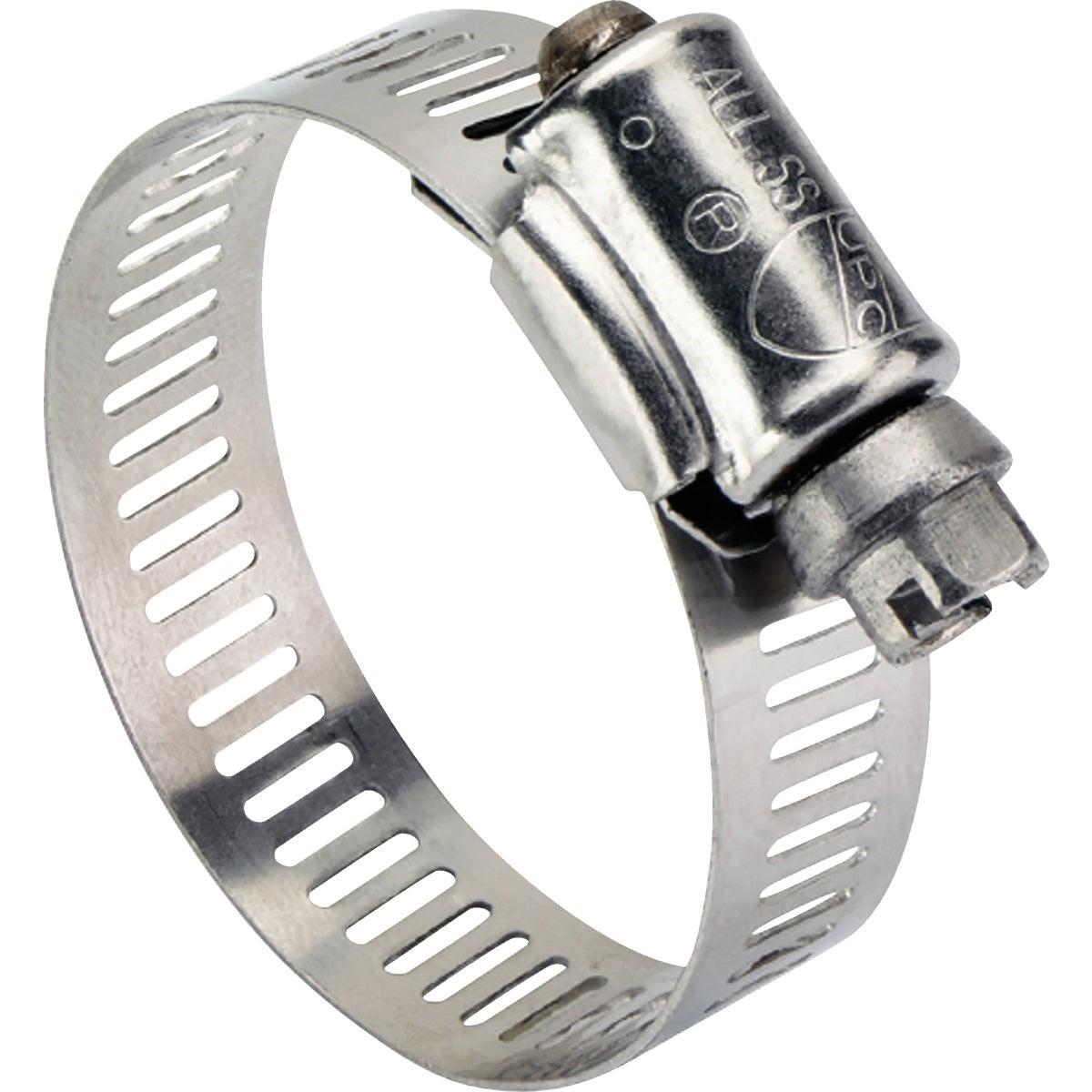

The TRIDON 6720553 is an all stainless steel hose clamp rated for clamping diameter ranges from 0.75 inches to 1.75 inches. The band, housing, and screw are all fabricated from 300 series stainless steel, making this clamp highly resistant to corrosion in wet and underground environments. The 0.5-inch-wide band provides a broad, even seating surface across the hose, while the 5/16-inch slotted hex head screw allows installation with either a flathead screwdriver or a hex-socket driver. Licensed plumbers and pipefitters install this clamp in a wide range of fluid-handling and mechanical applications where long-term corrosion resistance is required.

This clamp is suited for residential and light commercial plumbing, HVAC condensate lines, pool and spa plumbing, and general mechanical piping where hose connections must be sealed securely. The UPC-compliant shield on the housing is specifically approved for underground use, making this clamp a code-acceptable choice for buried or encased piping runs. Its all-stainless construction makes it appropriate wherever dissimilar-metal corrosion or moisture exposure is a concern.

Key Features

• 300 series stainless steel band, housing, and screw for full corrosion resistance
• Clamping range: 0.75 inches to 1.75 inches
• 0.5-inch-wide band provides uniform seating pressure across the hose surface
• 5/16-inch slotted hex head screw accepts both flathead and hex-socket drivers
• UPC-approved shield on housing rated for underground installation

Compatibility

Designed as a UPC-compliant all stainless steel hose clamp for residential and commercial piping applications requiring a 0.75-inch to 1.75-inch clamping range, including underground installations.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter in accordance with the Uniform Plumbing Code. Power down or depressurize the system and ensure the line is drained before removing or repositioning hose connections. Seat the clamp evenly over the hose end before tightening to avoid band distortion. For underground installations, confirm the burial depth and backfill material comply with local code requirements.

Technical Specifications

• Clamping Range: 0.75 inches to 1.75 inches
• Band Width: 0.5 inches
• Screw Size: 5/16 inches slotted hex head
• Material: 300 series stainless steel (band, housing, and screw)
• Certifications: UPC (Uniform Plumbing Code) approved for underground use
• Weight: 0.052 pounds
• Sold As: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6720553
