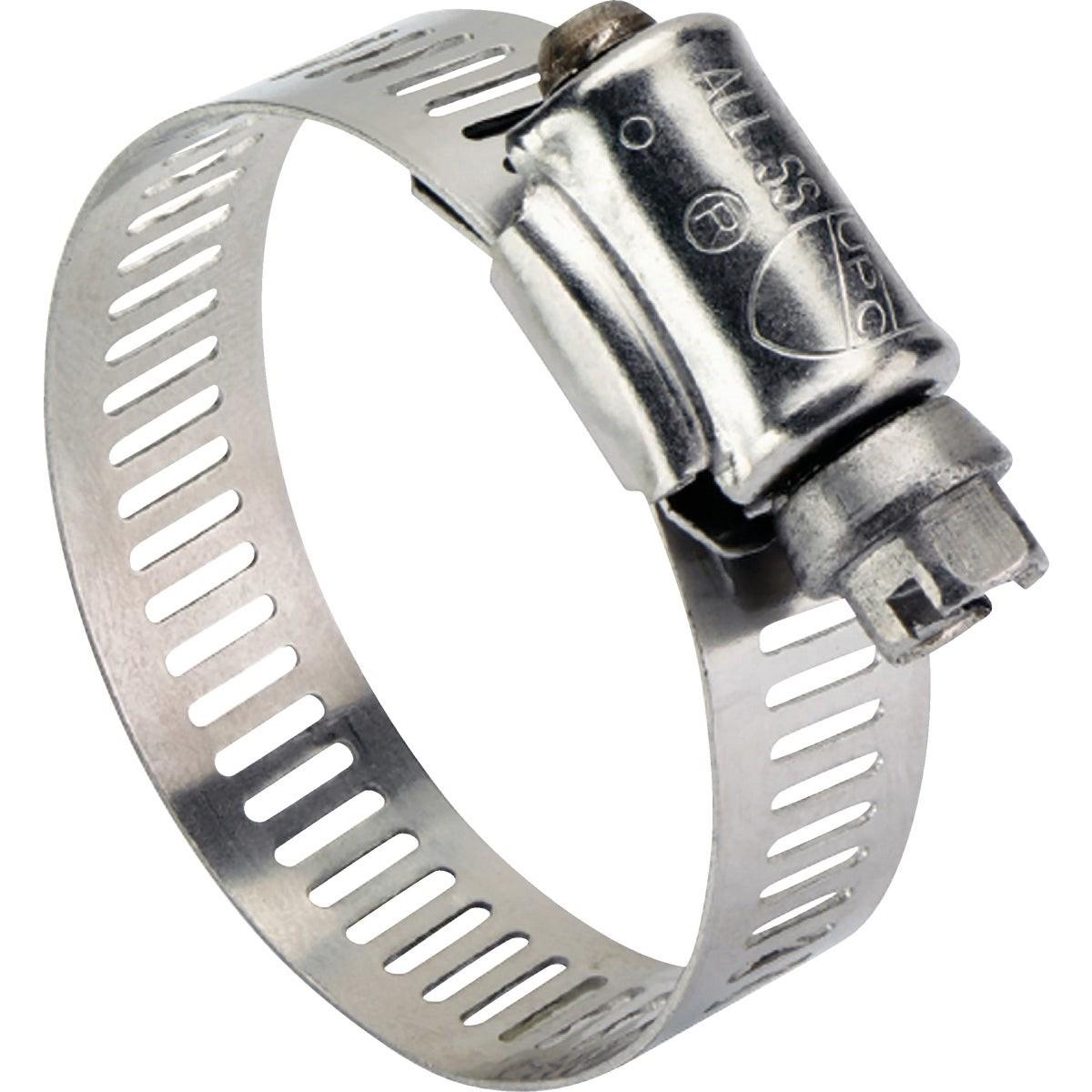

Tridon 6716553 Stainless Steel Hose Clamp 11/16 to 1-1/2 in

Product Description

The TRIDON 6716553 is a 300 series all stainless steel hose clamp designed for secure, corrosion-resistant clamping in plumbing, HVAC, and general mechanical applications. The clamp adjusts from 11/16 inches to 1-1/2 inches in diameter, making it suitable for a range of hose and tubing sizes. The band, housing, and screw are all constructed from 300 series stainless steel, providing uniform corrosion resistance throughout the assembly. The 1/2-inch-wide band distributes clamping force evenly to reduce hose deformation, while the 5/16-inch slotted hex head screw allows installation with standard hand tools.

This hose clamp is suited for residential and light commercial plumbing, HVAC connections, and mechanical systems where corrosion resistance and long service life are required. The UPC-approved shield on the housing qualifies this clamp for underground installations, making it a reliable choice for buried plumbing lines and below-grade applications where inferior materials would corrode over time. Plumbers, HVAC technicians, and general mechanical contractors regularly specify all stainless clamps of this type for both above-ground and underground service.

Key Features

• Full 300 series stainless steel construction — band, housing, and screw
• Clamping range: 11/16 inches to 1-1/2 inches diameter
• 1/2-inch-wide band for even load distribution and reduced hose deformation
• 5/16-inch slotted hex head screw for dual-tool compatibility
• UPC-approved housing shield rated for underground use

Compatibility

Designed as an OEM-style replacement or new-installation hose clamp for residential and commercial plumbing and HVAC systems requiring a 11/16 inch to 1-1/2 inch clamping range with all stainless steel construction.

Installation Notes

Installation is performed by licensed plumbers or HVAC technicians following applicable codes, including the Uniform Plumbing Code where enforced. Depressurize and drain the line before removing any existing clamp or fitting. A slotted screwdriver or 5/16-inch hex driver may be used to drive the screw. Do not overtighten — snug the clamp until seated firmly against the hose without distorting the band.

Technical Specifications

• Clamping Range: 11/16 inches to 1-1/2 inches
• Band Width: 1/2 inch
• Screw Size: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, screw)
• Approval: UPC approved for underground use
• Weight: 0.05 pounds
• Sold As: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6716553
