Tridon 6710553 Stainless Steel Hose Clamp 67 Series

Product Description

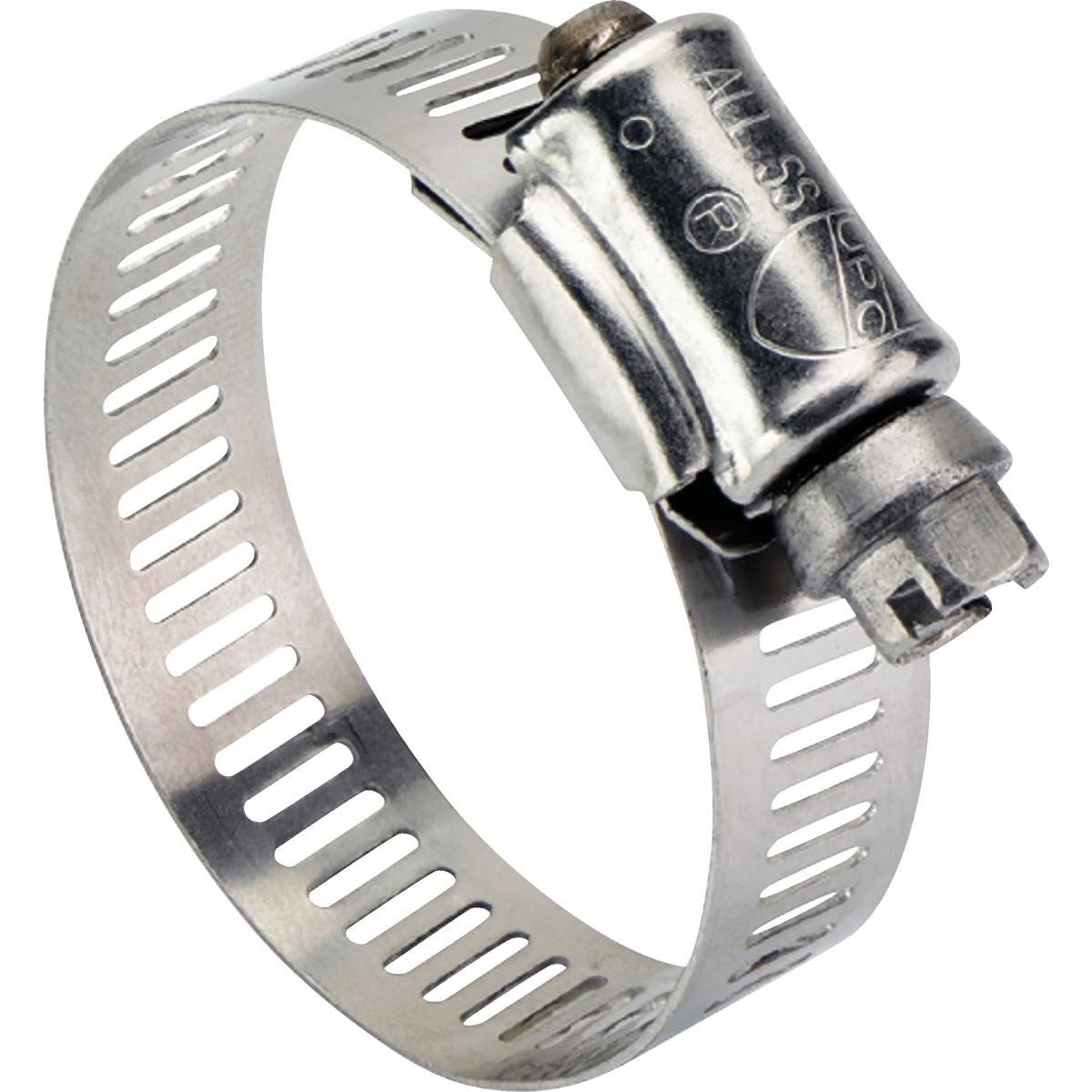

The TRIDON 6710553 is a 67 Series all stainless steel hose clamp designed for securing hose connections in plumbing, HVAC, and related mechanical systems. The band, housing, and screw are all manufactured from 300 series stainless steel, providing corrosion resistance in demanding environments. The clamp adjusts to fit hose diameters from 1/2 inch up to 1-1/16 inches. The 1/2-inch-wide band distributes clamping force evenly across the hose, and the 5/16-inch slotted hex head screw allows installation with either a flathead screwdriver or a hex driver. This clamp is UPC (Uniform Plumbing Code) approved and rated for underground use.

This clamp is suited for residential and light commercial plumbing, HVAC, and mechanical applications where a corrosion-resistant, code-compliant hose clamp is required. The underground rating makes it appropriate for buried or below-grade piping connections where moisture exposure is a constant concern. Plumbers, HVAC technicians, and mechanical contractors commonly specify all stainless clamps in these conditions to avoid premature clamp failure due to rust or galvanic corrosion.

Key Features

• 300 series stainless steel band, housing, and screw for full corrosion resistance
• Clamp range: 1/2 inch to 1-1/16 inches diameter
• 1/2-inch-wide band for even clamping pressure distribution
• 5/16-inch slotted hex head screw — accepts flathead or hex driver
• UPC (Uniform Plumbing Code) approved housing shield
• Rated for underground installation

Compatibility

Designed as an OEM-style replacement or new-installation hose clamp for plumbing and mechanical systems requiring a 1/2-inch to 1-1/16-inch clamp range with full stainless steel construction and UPC compliance.

Installation Notes

Installation is typically performed by a licensed plumber or mechanical contractor. Depressurize and drain the line before removing or replacing any hose clamp. Use a flathead screwdriver or 5/16-inch hex driver to seat the clamp screw — do not overtighten, as excessive torque can damage hose material or distort the band. For underground applications, verify local code requirements in addition to UPC compliance before burial.

Technical Specifications

• Clamp Range: 1/2 inch to 1-1/16 inches
• Band Width: 1/2 inch
• Screw Size: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, screw)
• Certifications: UPC (Uniform Plumbing Code) approved, rated for underground use
• Weight: 0.045 pounds
• Sold As: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6710553
