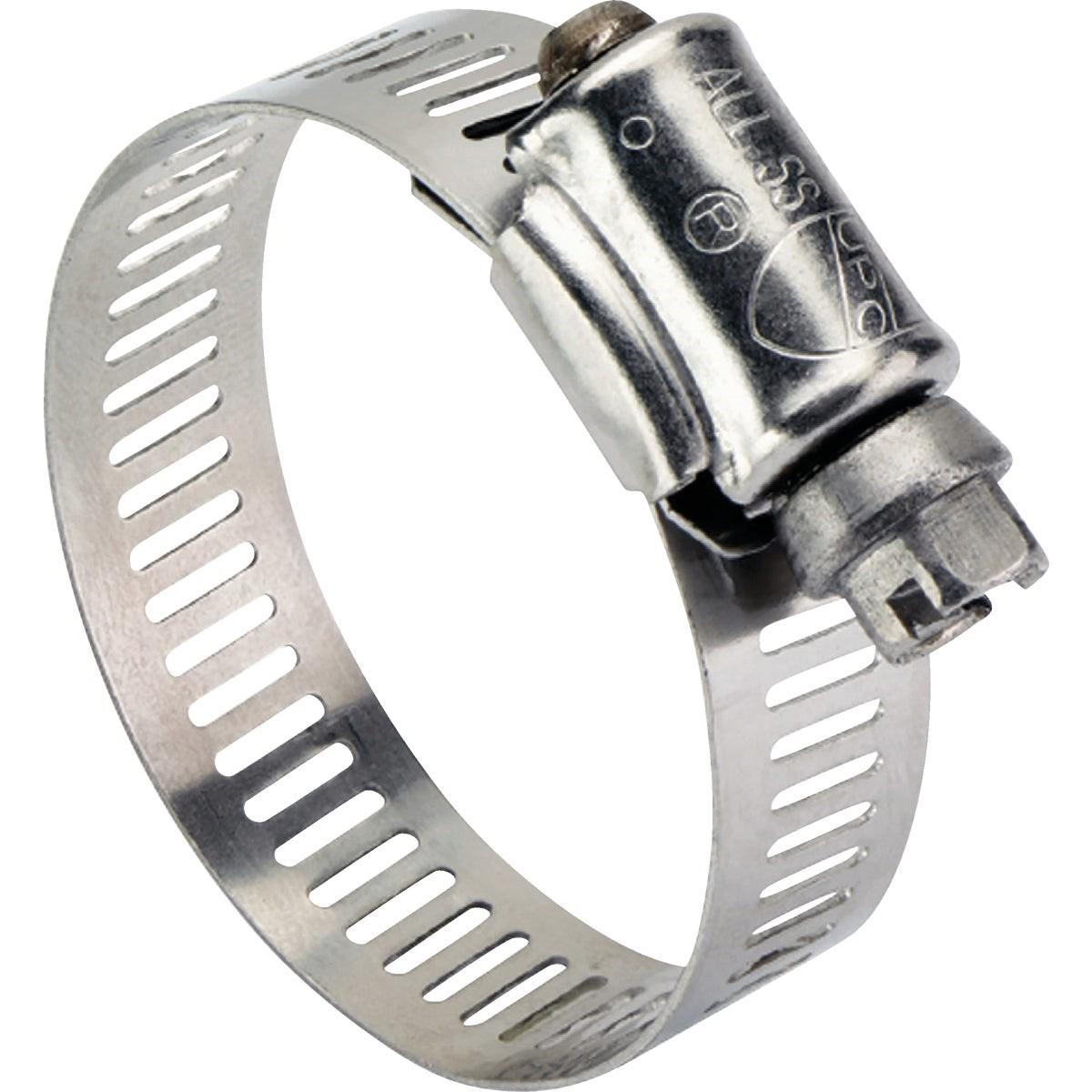

Tridon 6708553 Stainless Steel Hose Clamp 7/16 to 1 in

Product Description

The TRIDON 6708553 is a 67 Series all stainless steel hose clamp designed for secure, corrosion-resistant clamping in plumbing, HVAC, and general mechanical applications. The band, housing, and screw are all fabricated from 300 series stainless steel, providing consistent performance in wet or chemically aggressive environments. The clamp adjusts to fit hose or fitting diameters from 7/16 inches to 1 inch. The 1/2-inch-wide band distributes clamping force evenly across the hose surface, reducing the risk of hose deformation under load. Licensed plumbers, HVAC technicians, and mechanical contractors install this clamp as a reliable, long-life fastening solution where standard carbon steel clamps are not appropriate.

This clamp is suited for residential and light commercial installations where code compliance and corrosion resistance are required. The UPC-approved shield on the housing qualifies the clamp for underground use, making it appropriate for buried piping connections, underground plumbing transitions, and below-grade mechanical applications. It is commonly installed on flexible hose connections to copper, PVC, or CPVC fittings in potable water, HVAC hydronic, and irrigation systems.

Key Features

• Band, housing, and screw constructed from 300 series stainless steel throughout
• Clamp range: 7/16 inches to 1 inch diameter
• 1/2-inch-wide band for even clamping pressure distribution
• 5/16-inch slotted hex head screw for standard driver or nut driver installation
• UPC-approved housing shield rated for underground installation

Compatibility

Designed as an OEM-style replacement or new-installation clamp for flexible hose connections in the 7/16-inch to 1-inch diameter range across residential and light commercial plumbing and mechanical systems.

Installation Notes

Installation is performed by licensed plumbers or mechanical technicians using a standard flat-blade screwdriver or 5/16-inch nut driver. Ensure the hose is fully seated on the fitting before tightening the clamp. When installing in underground applications, verify burial depth and backfill requirements per applicable IPC or UPC guidelines. Do not overtighten, as excessive torque can deform the hose or damage the band.

Technical Specifications

• Clamp Range: 7/16 inches to 1 inch
• Band Width: 1/2 inch
• Screw Head: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, and screw)
• Series: 67
• Code Compliance: UPC approved for underground use
• Weight: 0.044 pounds
• Sold As: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6708553
