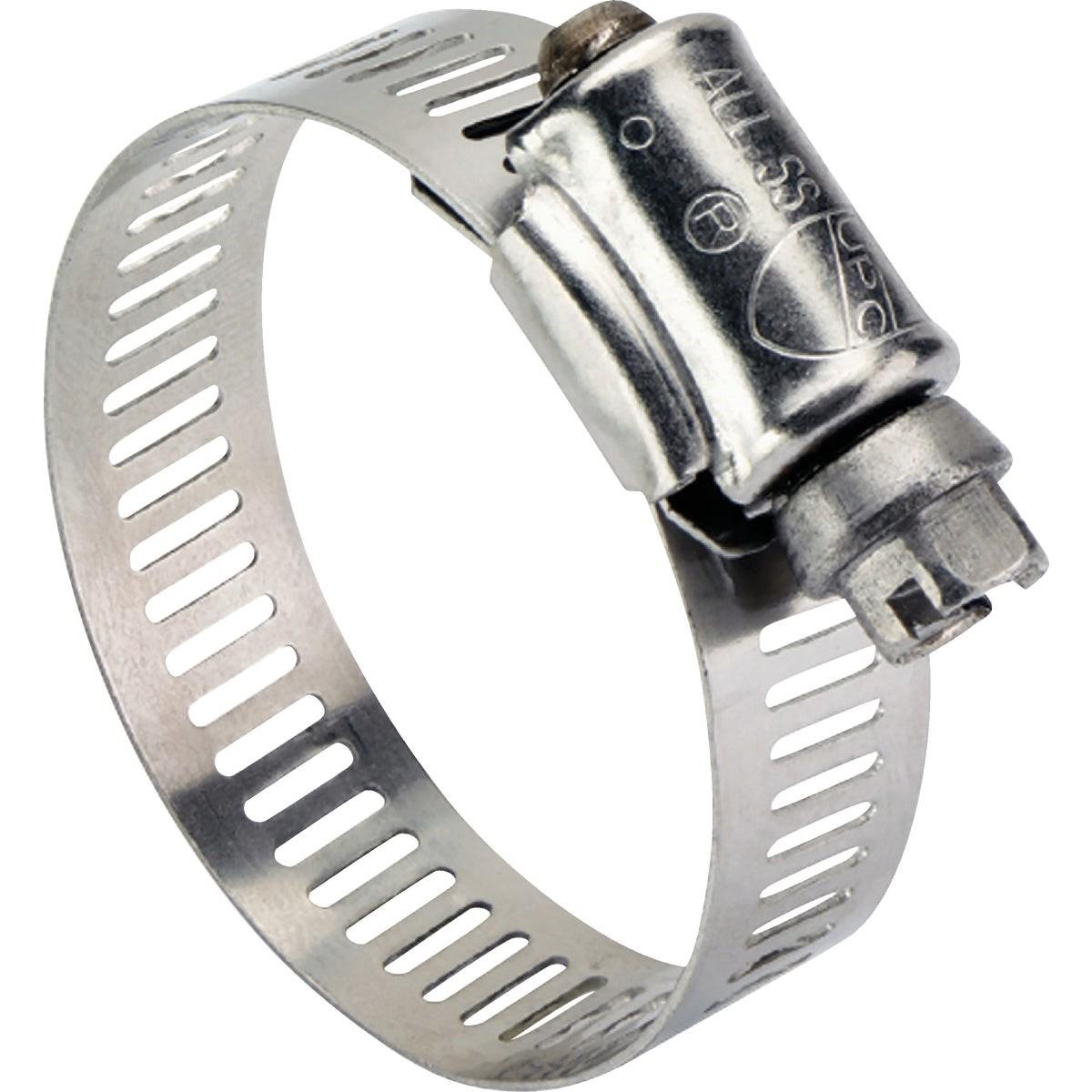

Tridon 6706553 Stainless Steel Hose Clamp 3/8-7/8 in

Product Description

The TRIDON 6706553 is a 67 series all stainless steel hose clamp designed for secure, corrosion-resistant clamping of hoses and fittings in plumbing, HVAC, and general mechanical applications. The band, housing, and screw are all fabricated from 300 series stainless steel, making this clamp suitable for wet, humid, and underground environments. The band measures 1/2 inch wide and is driven by a 5/16 inch slotted hex head screw. With a clamping range of 3/8 inch to 7/8 inch, this clamp fits a variety of small-diameter hose connections. Sold individually, it weighs 0.043 pounds.

This clamp is used across residential and light commercial installations where a durable, rust-resistant fastening solution is required. Common applications include water supply connections, drain fittings, HVAC condensate lines, and other plumbing or mechanical hose assemblies. The all stainless steel construction and UPC-approved shield on the housing make it well suited for underground installations where corrosion from soil moisture or groundwater is a concern. Plumbers, HVAC technicians, and pipefitters routinely use this type of clamp in both new construction and service work.

Key Features

• Band, housing, and screw all constructed from 300 series stainless steel for full corrosion resistance
• Clamping range of 3/8 inch to 7/8 inch suits small-diameter hose connections
• 1/2 inch wide band provides broad surface contact and uniform clamping pressure
• 5/16 inch slotted hex head screw allows use with a standard screwdriver or hex socket
• UPC shield on housing is approved for underground use

Compatibility

Designed as an OEM-style replacement or direct-use stainless steel hose clamp for residential and commercial plumbing and HVAC hose and fitting applications within the 3/8 inch to 7/8 inch clamping range.

Installation Notes

Installation is typically performed by licensed plumbers or HVAC technicians following applicable Uniform Plumbing Code requirements. Shut off water supply or system pressure before removing or replacing any hose clamp. Tighten the screw with a 5/16 inch hex driver or flat-blade screwdriver until the clamp seats firmly against the hose without distorting it. For underground installations, verify that the clamp and any adjacent fittings meet local code requirements for burial depth and backfill.

Technical Specifications

• Clamping Range: 3/8 inch to 7/8 inch
• Band Width: 1/2 inch
• Screw Size: 5/16 inch slotted hex head
• Material: 300 series stainless steel (band, housing, and screw)
• Certifications: UPC (Uniform Plumbing Code) approved for underground use
• Weight: 0.043 pounds
• Sold As: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 6706553
