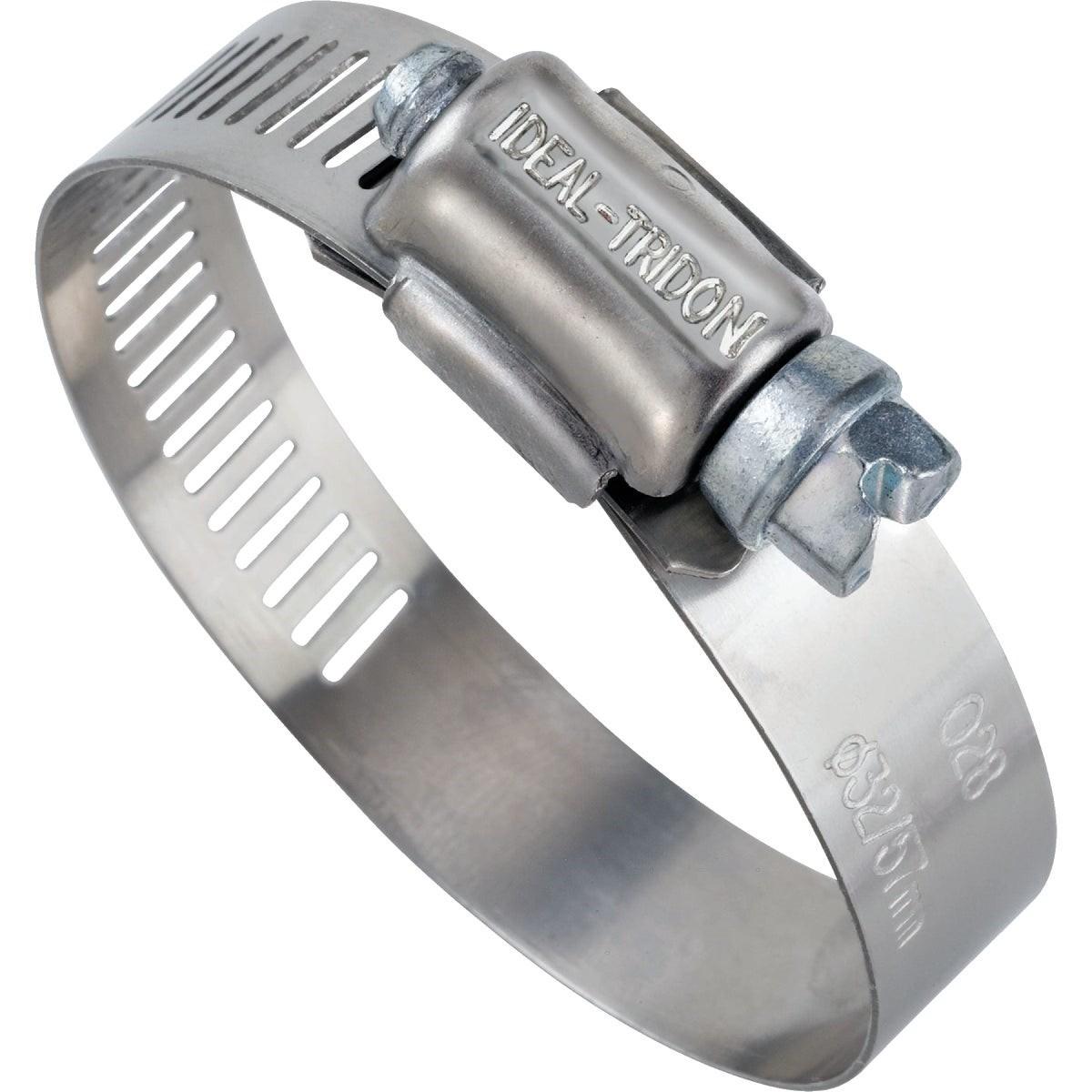

Tridon 5736053 Stainless Steel Hose Clamp 1-3/4 to 2-3/4 in

Product Description

The TRIDON 5736053 is a 57-series worm-drive hose clamp built for clamping hoses in plumbing, HVAC, automotive, and general mechanical applications. The band housing is constructed from 300-series stainless steel, providing corrosion resistance in wet or outdoor service environments. The clamp adjusts to fit hose diameters from 1-3/4 inches up to 2-3/4 inches, making it suitable for a range of standard hose sizes. The 1/2-inch-wide band distributes clamping load evenly across the hose surface to prevent deformation and leakage. Tightening is handled by a 5/16-inch slotted hex head screw in zinc-plated carbon steel.

This clamp is used wherever a secure, reusable hose connection is needed. Common applications include drain lines, coolant hoses, duct connections, and general fluid-transfer fittings in residential and light commercial installations. The stainless steel band holds up in damp or corrosive environments, while the zinc-plated screw provides adequate corrosion resistance for most indoor and sheltered outdoor installations. Licensed plumbers, HVAC technicians, and mechanical contractors reach for this style of clamp as a reliable, code-compliant fastening method for flexible hose connections.

Key Features

• 300-series stainless steel band housing for corrosion resistance
• Clamp range: 1-3/4 inches to 2-3/4 inches diameter
• 1/2-inch-wide band for even load distribution
• 5/16-inch slotted hex head screw for dual-tool installation
• Zinc-plated carbon steel screw for added corrosion protection
• Sold individually (UOM: Each)

Compatibility

Designed as a standard worm-drive hose clamp suitable for flexible hoses and fittings with an outside diameter between 1-3/4 inches and 2-3/4 inches across plumbing, HVAC, and general mechanical applications.

Installation Notes

Installation does not require special tooling beyond a flat-blade screwdriver or 5/16-inch hex driver. Ensure the hose is fully seated on the fitting before tightening the clamp. Do not overtighten — excessive torque can cut into the hose or distort the band. Follow applicable codes such as IPC or IFGC for hose clamp use on fuel gas or potable water systems.

Technical Specifications

• Clamp Range: 1-3/4 inches to 2-3/4 inches
• Band Width: 1/2 inch
• Band Material: 300-series stainless steel
• Screw Drive: 5/16 inch slotted hex head
• Screw Material: Zinc-plated carbon steel
• Weight: 0.065 pounds
• UPC: 00078575900773

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 5736053
