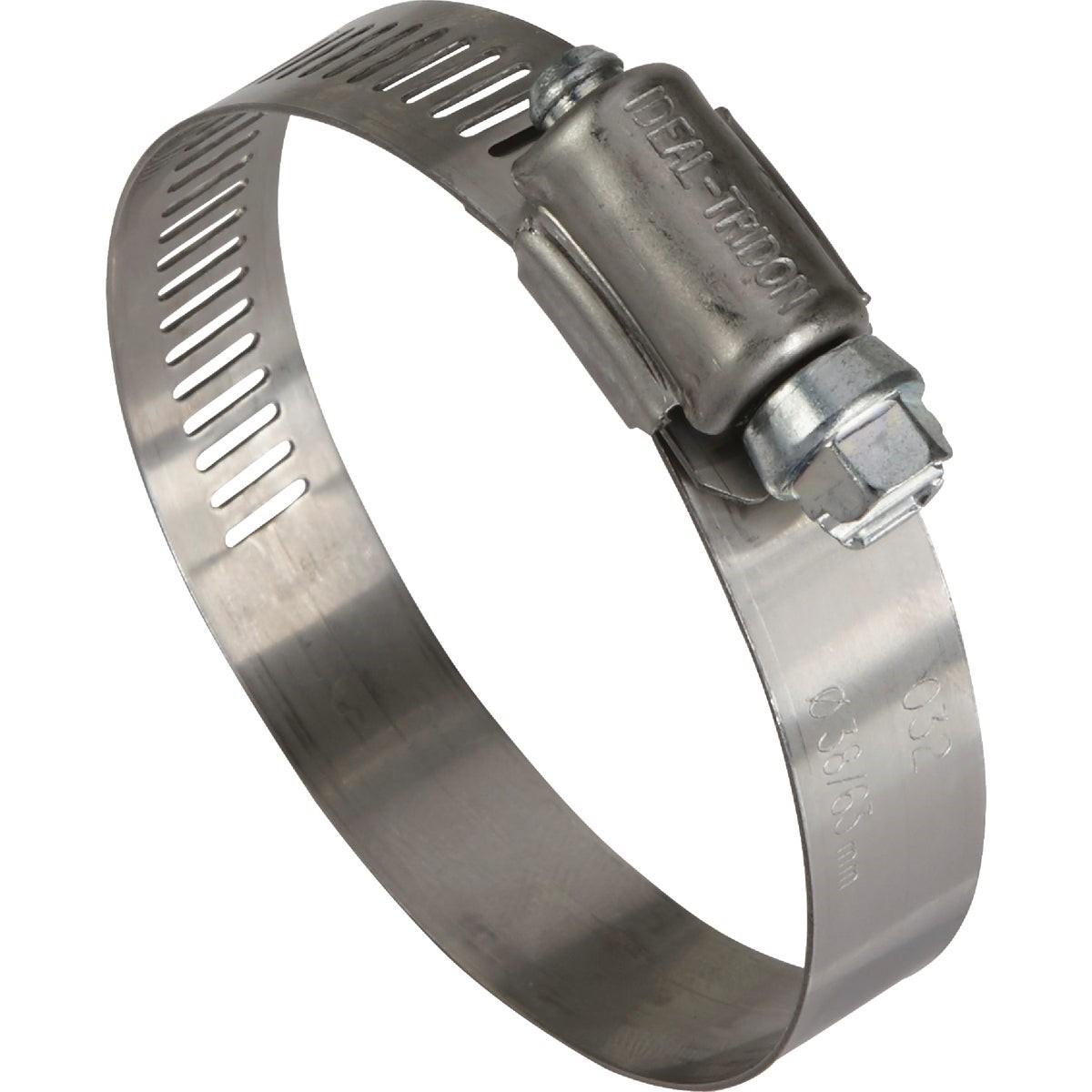

Tridon 5732053 Stainless Steel Hose Clamp 1.5-2.5 in

Product Description

The TRIDON 5732053 is a 57-series stainless steel hose clamp designed for securing hose connections across a clamping range of 1-1/2 inches to 2-1/2 inches. The band housing is fabricated from 300 series stainless steel, offering solid corrosion resistance in wet and outdoor environments. The 1/2-inch-wide band distributes clamping force evenly across the hose surface, reducing the risk of hose damage under torque. The fastening screw is a 5/16-inch slotted hex head in zinc-plated carbon steel. This clamp is sold individually and is installed by plumbers, HVAC technicians, and general mechanical tradespeople wherever a reliable hose-to-barb or hose-to-fitting seal is required.

This clamp is suited for residential and light commercial applications including coolant lines, water supply connections, HVAC condensate and drain hose assemblies, and general fluid transfer lines within the 1-1/2 to 2-1/2 inch diameter range. Its stainless steel band construction makes it appropriate for installations exposed to moisture, mild chemicals, or temperature cycling where a standard carbon steel clamp would be susceptible to rust and early failure.

Key Features

• 300 series stainless steel band housing for corrosion resistance
• Clamping range: 1-1/2 inches to 2-1/2 inches
• Band width: 1/2 inch for even load distribution
• 5/16-inch slotted hex head screw accepts both flathead and hex drivers
• Zinc-plated carbon steel screw provides added corrosion protection on the fastener

Compatibility

Designed as a standard worm-drive hose clamp replacement for any hose or tubing connection with an outside diameter falling within the 1-1/2 to 2-1/2 inch clamping range.

Installation Notes

Install using a flathead screwdriver or a 5/16-inch hex driver. Position the clamp over the hose before seating the hose onto the fitting, then slide the clamp to the correct location and tighten gradually to avoid over-torquing, which can damage the hose or collapse the fitting. Ensure the hose is fully seated on the barb or nipple before final tightening. Follow applicable plumbing or mechanical codes for the specific system being serviced.

Technical Specifications

• Clamping Range: 1-1/2 inches to 2-1/2 inches
• Band Material: 300 Series Stainless Steel
• Band Width: 1/2 inch
• Screw Size: 5/16 inch slotted hex head
• Screw Material: Zinc-Plated Carbon Steel
• Weight: 0.014 pounds
• Sold As: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 5732053
