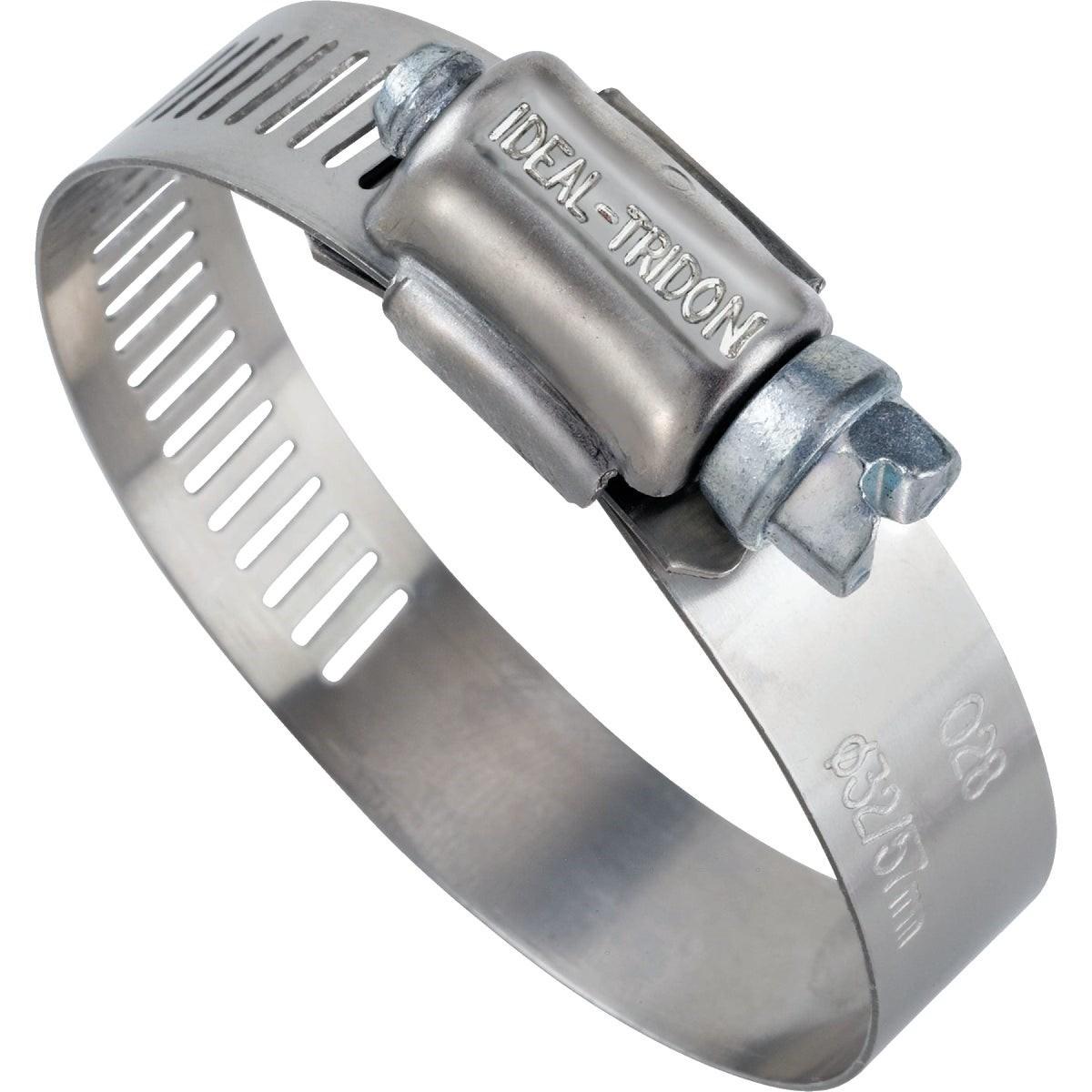

Tridon 5728053 Stainless Steel Hose Clamp 1-1/4 to 2-1/4 in

Product Description

The TRIDON 5728053 is a 57 Series worm-drive hose clamp designed for securing hose connections in plumbing, HVAC, and general mechanical applications. The band housing is constructed from 300 series stainless steel for corrosion resistance, while the fastening screw is zinc-plated carbon steel with a 5/16-inch slotted hex head. The band is 1/2 inch wide, providing even clamping pressure across the hose surface. This clamp covers a clamping range of 1-1/4 inches to 2-1/4 inches, making it suitable for a variety of hose and tubing diameters encountered in trade service work.

The 5728053 is well suited for residential and light commercial applications where a reliable, corrosion-resistant clamp is needed on water lines, coolant hoses, HVAC condensate lines, or similar connections. The stainless steel band resists rust in wet or damp environments, and the slotted hex head screw allows installation with either a flathead screwdriver or a 5/16-inch nut driver, tools commonly found on any service truck. This clamp is sold individually and is appropriate for plumbers, HVAC technicians, and general mechanical contractors.

Key Features

• 300 series stainless steel band housing for corrosion resistance in wet environments
• Clamping range of 1-1/4 inches to 2-1/4 inches to fit common hose and tubing sizes
• 1/2-inch wide band distributes clamping force evenly around the hose
• Zinc-plated carbon steel screw with 5/16-inch slotted hex head for dual-tool installation
• Worm-drive design allows precise torque adjustment without special tools

Compatibility

Designed as an OEM-style replacement or service clamp for standard worm-drive hose clamp applications in plumbing, HVAC, and mechanical systems where a 1-1/4-inch to 2-1/4-inch clamping range is required.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or qualified mechanical contractors. Shut off water flow or system pressure before replacing or repositioning any hose clamp. Use a flathead screwdriver or 5/16-inch nut driver to tighten the screw; do not overtighten, as excess force can damage the hose or distort the band. Follow applicable IPC or IFGC guidelines for the specific system being serviced.

Technical Specifications

• Clamping Range: 1-1/4 inches to 2-1/4 inches
• Band Width: 1/2 inch
• Band Material: 300 Series Stainless Steel
• Screw Material: Zinc-Plated Carbon Steel
• Screw Drive: 5/16-inch Slotted Hex Head
• Weight: 0.071 pounds
• Series: 57
• UPC: 00078575157283

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 5728053
