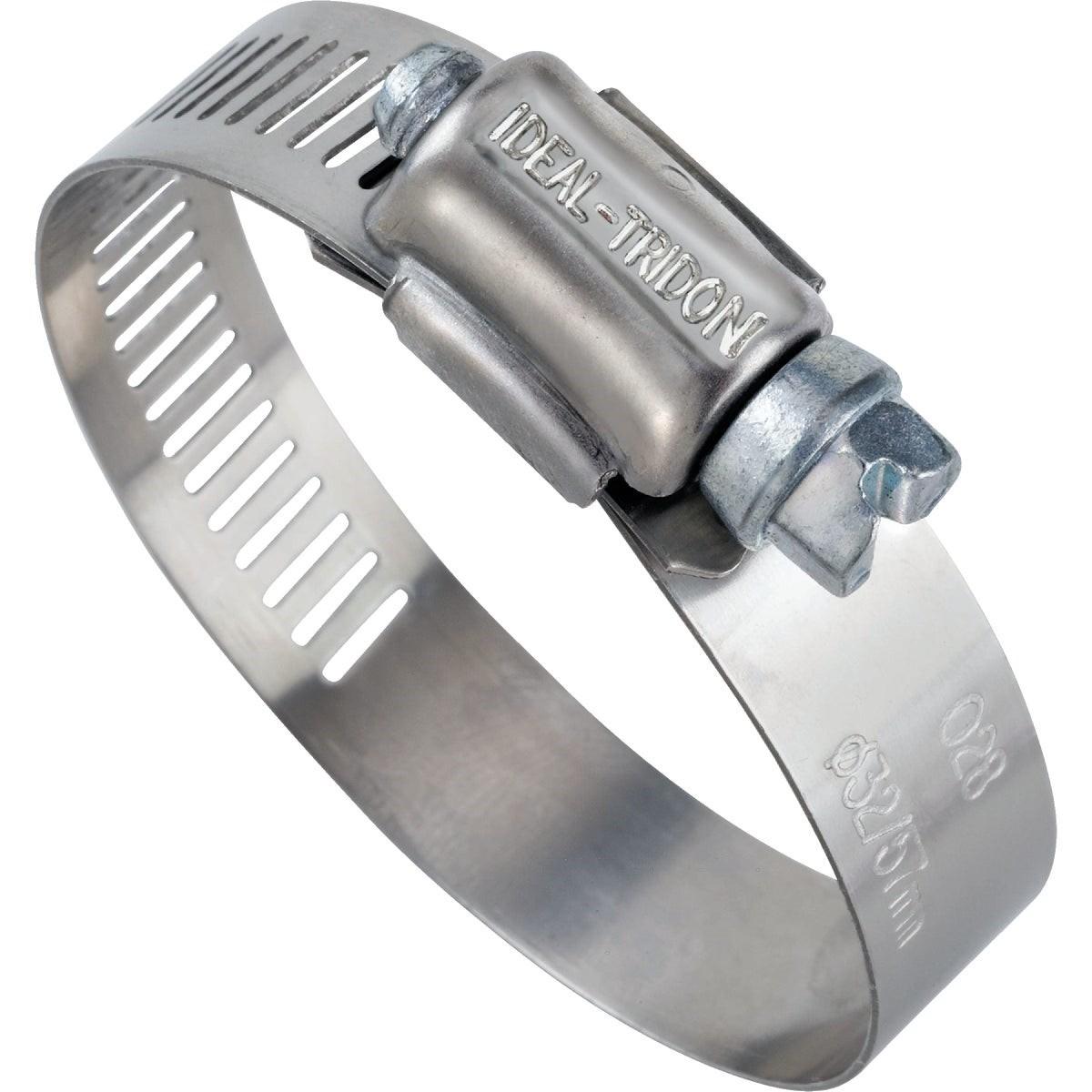

Tridon 5724053 Stainless Steel Hose Clamp 1-2 in

Product Description

The TRIDON 5724053 is a 57-series stainless steel hose clamp designed for securing hose connections across a clamping range of 1 inch to 2 inches. The band housing is constructed from 300-series stainless steel for corrosion resistance, while the 5/16-inch slotted hex head screw is zinc-plated carbon steel. The band is 1/2 inch wide, providing a broad seating surface that distributes clamping force evenly. This clamp is used by plumbers, HVAC technicians, and general tradespeople wherever a reliable, adjustable hose connection is required.

This clamp is suited for residential and light commercial applications including coolant lines, water supply connections, HVAC condensate drain hose terminations, and general-purpose fluid-handling assemblies. The 1-inch to 2-inch range makes it a versatile fit for common hose and tubing diameters encountered in mechanical system work. It is sold individually and is typically purchased in quantities of 10 or more for service stock.

Key Features

• 300-series stainless steel band housing for corrosion resistance in wet environments
• Clamping range: 1 inch to 2 inches
• 1/2-inch-wide band for even load distribution across hose surface
• 5/16-inch slotted hex head screw for standard nut driver or hex key installation
• Zinc-plated carbon steel screw provides additional corrosion protection

Compatibility

Designed as a general-purpose OEM-style hose clamp suitable for use on hoses and soft tubing with an outside diameter falling within the 1-inch to 2-inch clamping range, as found in plumbing, HVAC, and fluid-handling applications.

Installation Notes

Installation requires a 5/16-inch slotted hex head driver or flathead screwdriver. Power down or shut off fluid flow to the system before removing or installing hose clamps. Tighten the screw evenly to seat the band without overtightening, which can damage soft hose material. Follow applicable IPC or IFGC guidelines for hose and connection requirements in your jurisdiction.

Technical Specifications

• Clamping Range: 1 inch to 2 inches
• Band Width: 0.5 inches
• Band Material: 300-series stainless steel
• Screw Type: 5/16-inch slotted hex head
• Screw Material: Zinc-plated carbon steel
• Weight: 0.046 pounds
• Sold As: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 5724053
