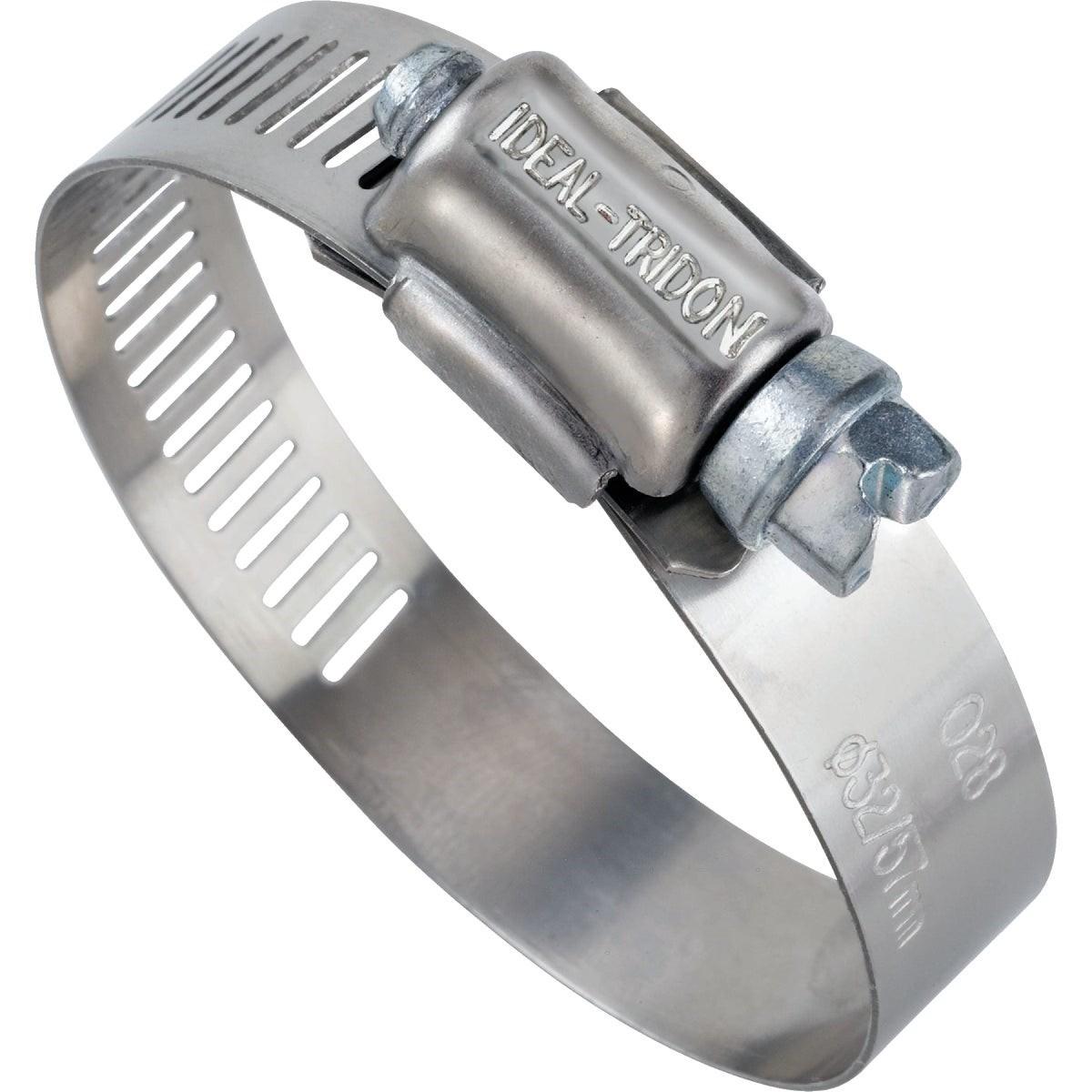

Tridon 5720053 Stainless Steel Hose Clamp 3/4 to 1-3/4 in

Product Description

The TRIDON 5720053 is a 57 Series worm-drive hose clamp designed for securing hoses in plumbing, HVAC, and general fluid-transfer applications. The band housing is constructed from 300 series stainless steel, providing corrosion resistance in wet and humid environments. The clamping range runs from 3/4 inch to 1-3/4 inches, making it suitable for a range of standard hose diameters. The 1/2-inch-wide band distributes clamping force evenly across the hose surface, reducing the risk of cutting or distorting softer hose materials. The fastening screw is a 5/16-inch slotted hex head in zinc-plated carbon steel. Each clamp weighs 0.063 pounds. Installation requires only a standard screwdriver or 5/16-inch nut driver.

This clamp is used wherever a reliable, adjustable hose-to-fitting connection is needed. Common applications include radiator and coolant hoses, drain lines, irrigation lines, HVAC condensate tubing, and low-pressure fluid transfer in both residential and light commercial settings. The stainless steel band resists rust in damp mechanical rooms, crawl spaces, and outdoor installations. Plumbers, HVAC technicians, and general service technicians routinely stock this clamp size for everyday service calls.

Key Features

• 300 series stainless steel band housing for corrosion resistance
• Clamping range: 3/4 inch to 1-3/4 inches
• 1/2-inch-wide band for even load distribution across hose surface
• 5/16-inch slotted hex head screw accepts both flat-blade screwdriver and nut driver
• Zinc-plated carbon steel screw
• Lightweight at 0.063 pounds per clamp

Compatibility

Designed as a standard worm-drive hose clamp for use with flexible hoses in the 3/4-inch to 1-3/4-inch outside diameter range across residential and light commercial plumbing, HVAC, and fluid-transfer applications.

Installation Notes

Shut off fluid flow and relieve any line pressure before removing or installing hose clamps. Position the clamp so the screw housing does not rest directly over the hose bead or fitting flare. Tighten with a flat-blade screwdriver or 5/16-inch nut driver to snug contact — do not overtighten, as doing so can cut the hose or strip the screw. Follow applicable IPC or IFGC guidelines for the system being serviced.

Technical Specifications

• Clamping Range: 3/4 inch to 1-3/4 inches
• Band Material: 300 series stainless steel
• Band Width: 1/2 inch
• Screw Head: 5/16 inch slotted hex head
• Screw Material: Zinc-plated carbon steel
• Weight: 0.063 pounds
• Series: 57
• Unit of Measure: Each

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 5720053
