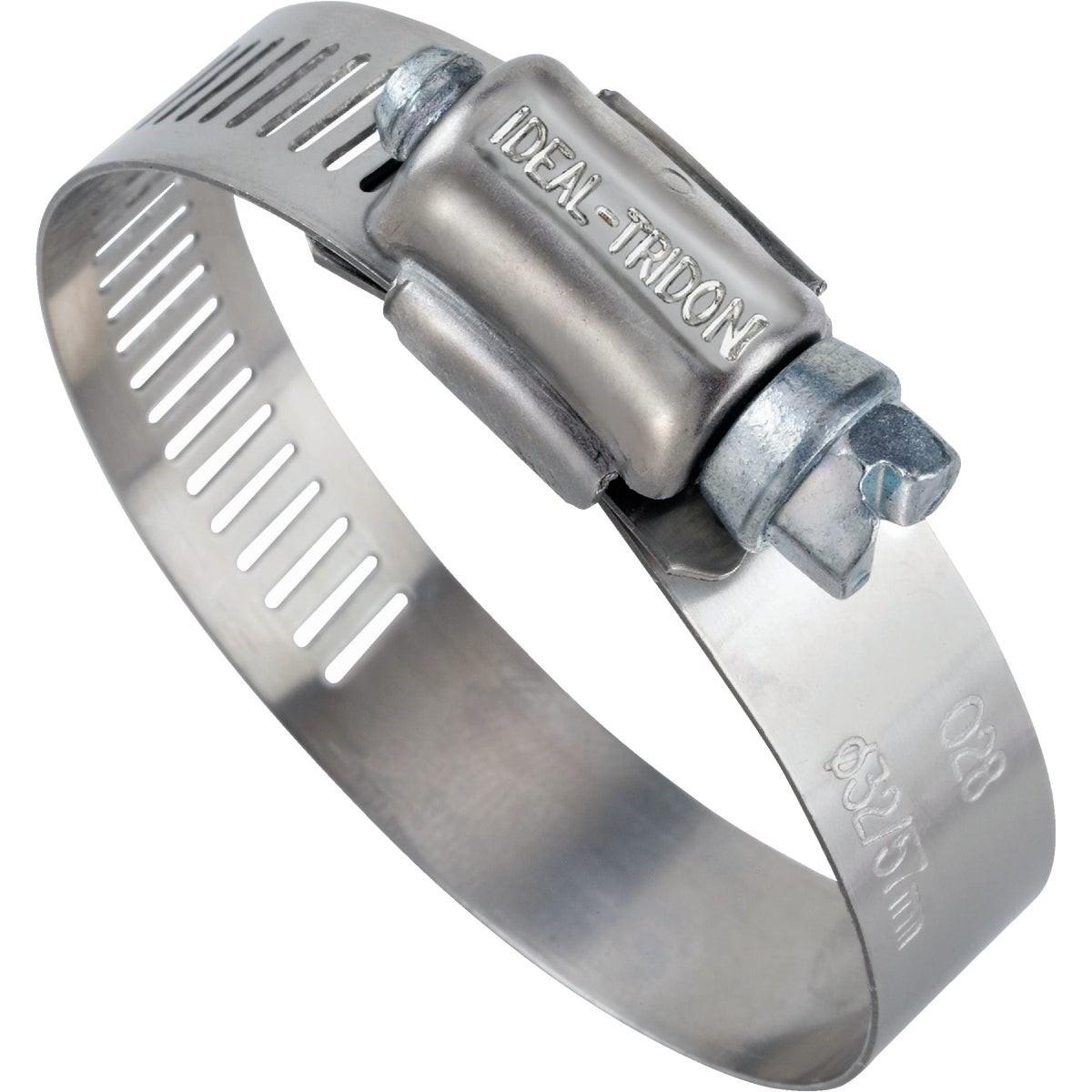

Tridon 5710053 Stainless Steel Hose Clamp 1/2-1-1/16 in

Product Description

The TRIDON 5710053 is a 57 Series stainless steel hose clamp designed for securing hose connections across a wide range of residential and commercial plumbing, HVAC, and general mechanical applications. The band housing is constructed from 300 series stainless steel, offering solid corrosion resistance in wet and mildly corrosive environments. The clamp accepts hose diameters from 1/2 inch up to 1-1/16 inches and features a 1/2-inch-wide band for stable, even clamping force across the hose surface. Tightening is handled by a zinc-plated carbon steel screw with a 5/16-inch slotted hex head, allowing installation with either a flathead screwdriver or a nut driver.

This clamp is suited for low-pressure hose terminations in residential and light commercial settings. Common applications include radiator and coolant hoses, intake and discharge lines, condensate drain connections, and flexible duct or tubing transitions. The 1/2-inch-to-1-1/16-inch clamping range covers many standard small-diameter hose sizes used in HVAC condensate systems, plumbing supply, and general mechanical assemblies. Licensed plumbers, HVAC technicians, and mechanical contractors typically install this clamp as part of routine hose-connection work.

Key Features

• 300 series stainless steel band housing for corrosion resistance
• Clamping range: 1/2 inch to 1-1/16 inches
• 1/2-inch-wide band provides even distribution of clamping force
• 5/16-inch slotted hex head screw for dual-tool compatibility
• Zinc-plated carbon steel screw resists light corrosion

Compatibility

Designed as a standard worm-drive hose clamp suitable for small-diameter flexible hose connections in plumbing, HVAC condensate, and general mechanical assemblies within the 1/2-inch to 1-1/16-inch diameter range.

Installation Notes

Installation requires only a flathead screwdriver or 5/16-inch nut driver. Relieve system pressure and drain or shut off fluid flow before removing or installing any hose clamp. Do not overtighten, as excessive torque can cut into hose material or strip the screw. Follow applicable IPC or IFGC guidelines for any connections on regulated plumbing or gas-adjacent systems.

Technical Specifications

• Clamp Range: 1/2 inch to 1-1/16 inches
• Band Width: 1/2 inch
• Band Material: 300 Series Stainless Steel
• Screw Material: Zinc-Plated Carbon Steel
• Screw Drive: 5/16 inch Slotted Hex Head
• Weight: 0.01 pounds
• UPC: 00078575157108

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 5710053
