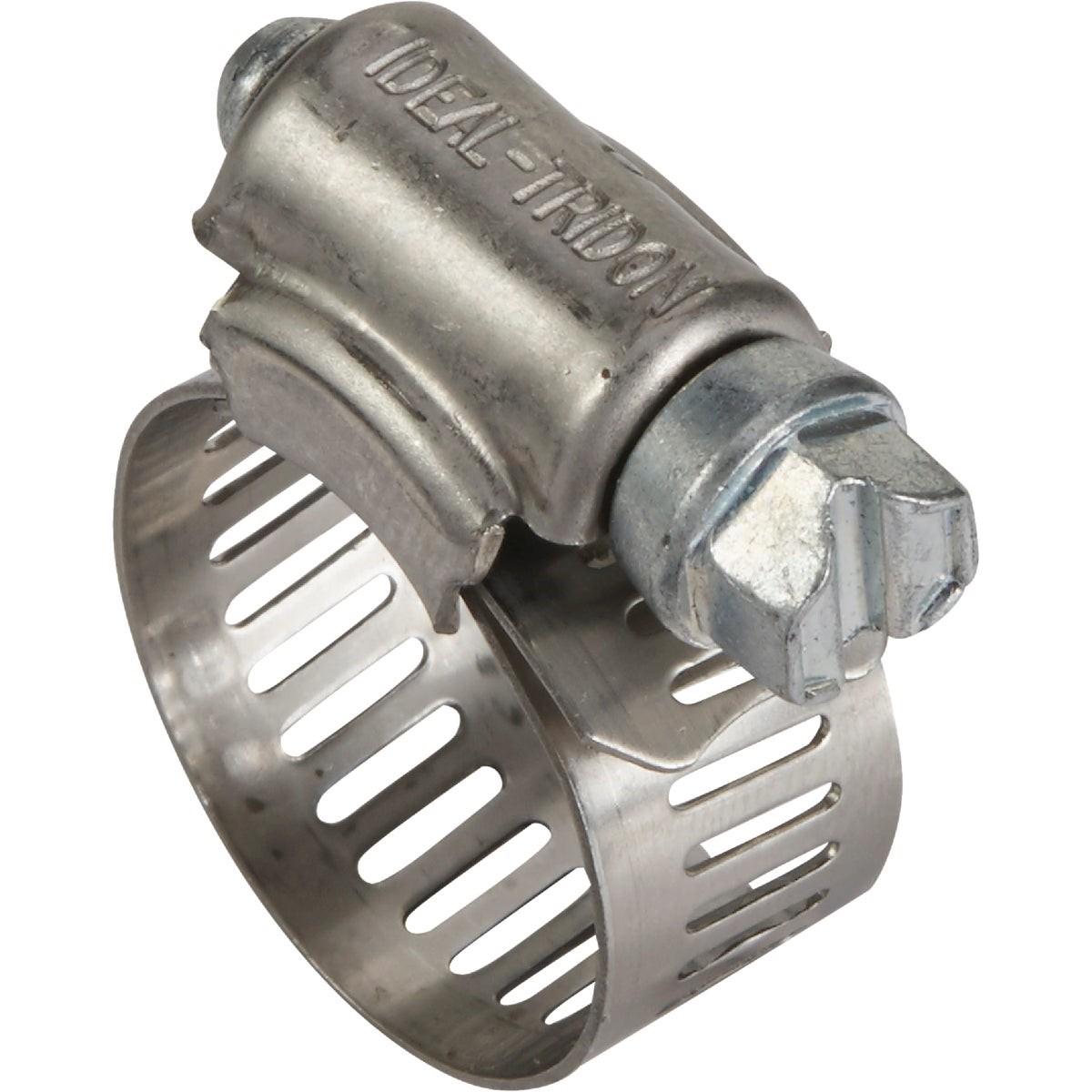

Tridon 5708053 Stainless Steel Hose Clamp 7/16 to 1 in

Product Description

The TRIDON 5708053 is a 57-series stainless steel hose clamp designed for securing hoses and fittings in plumbing, HVAC, and general mechanical applications. The band and housing are constructed from 300 series stainless steel, providing corrosion resistance in wet or exposed environments. The clamp covers a clamping range of 7/16 inches to 1 inch, making it suitable for small-diameter hose connections. The fastening screw is a 5/16-inch slotted hex head design in zinc-plated carbon steel. Each clamp weighs approximately 0.044 pounds. Plumbers, HVAC technicians, and general mechanical contractors commonly install this type of clamp during hose assembly and repair work.

This hose clamp is appropriate for residential and light commercial installations where a reliable, corrosion-resistant band clamp is needed on small-diameter hoses. Typical applications include coolant hoses, condensate drain lines, fuel lines, and other fluid-carrying hose connections requiring a secure, adjustable clamp. The 7/16-inch to 1-inch range suits common small hose sizes found throughout mechanical systems. Sold individually.

Key Features

• 300 series stainless steel band and housing for corrosion resistance
• Clamping range: 7/16 inches to 1 inch
• 1/2-inch wide band for broad contact and even clamping pressure
• 5/16-inch slotted hex head screw for standard tool compatibility
• Zinc-plated carbon steel screw provides additional corrosion protection

Compatibility

Designed as a standard 57-series hose clamp for use on small-diameter hoses and fittings within the 7/16-inch to 1-inch clamping range across plumbing, HVAC, and mechanical applications.

Installation Notes

Installation is performed with a standard flathead screwdriver or 5/16-inch nut driver. Relieve system pressure and drain any fluid from the hose assembly before removing or installing clamps. Position the clamp over the hose before seating the hose onto the fitting, then tighten the screw evenly to secure without over-torquing the band. Follow applicable plumbing or mechanical codes for the specific system being serviced.

Technical Specifications

• Clamping Range: 7/16 inches to 1 inch
• Band Width: 1/2 inch
• Band and Housing Material: 300 Series Stainless Steel
• Screw Type: 5/16 inch Slotted Hex Head
• Screw Material: Zinc-Plated Carbon Steel
• Weight: 0.044 pounds
• UPC: 00078575157085

Standard Information

• Brand: TRIDON
• Manufacturer Part Number: 5708053
