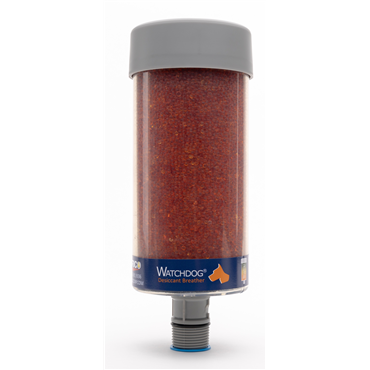

Trico Corporation WG-100418-S Gold 18 CFM Desiccant Breather Standard 1 in Tri-Fit

Product Description

The Trico Corporation WG-100418-S Gold Desiccant Breather is designed to filter particles and remove moisture from air entering industrial equipment. This product helps maintain equipment health by preventing contaminants from damaging components.

• 1 inch connection size
• Maximum flow rate of 18 CFM at one PSID
• Maximum moisture retention of fourteen point three fluid ounces

Product Highlights

The breather enhances oil life, improves equipment reliability, and reduces maintenance costs.

Product Information

Standard Information

• Brand: Trico Corporation
• Part #: 120612118

Technical Specifications

• Flow Rate [Max]: 18 CFM @ 1 PSID
• Operating Temperature [Min]: -20 °F
• Diameter: 4.1 inches
• Moisture Absorbing Media: Silica Gel
• Body Material: ABS, Nylon, Polypropylene, Buna
• Connection Type: MNPT, BSPT, BSPP
• Moisture Retention [Max]: 14.3 fluid ounces, 424 ml
• Filter Efficiency: 3-Micron Absolute
• Operating Temperature [Max]: 200 °F
• Filter Media: Polyester, Polyurethane
• Height: 10.38 inches
• Silica Color: Gold
• Connection Size: 1 inch
• Weight: 1.4 LB
