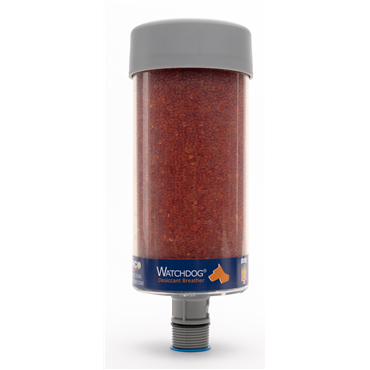

Trico Corporation WG-100410-EX Gold 10 CFM Desiccant Breather EX Check Valve 1 in Tri-Fit

Product Description

The Trico Corporation WG-100410-EX is a desiccant breather designed to efficiently filter particles and remove water from air. This breather prevents contaminants from entering industrial equipment during air expansion or fluid level changes. It is essential for maintaining oil life, enhancing equipment reliability, and lowering maintenance costs.

• 1 inch connection size
• Maximum flow rate of 10 CFM at 1 PSID
• Can retain up to 14.3 fluid ounces of moisture

Product Highlights

The WG-100410-EX is suitable for various industrial applications.

Product Information

Standard Information

• Brand: Trico Corporation
• Part Number: 120612113

Technical Specifications

• Silica Color: Gold
• Operating Temperature (Max): 200 °F
• Filter Efficiency: 3-Micron Absolute
• Diameter: 4.1 inches
• Moisture Absorbing Media: Silica Gel
• Operating Temperature (Min): -20 °F
• Height: 10.38 inches
• Connection Type: MNPT, BSPT, BSPP
• Flow Rate (Max): 10 CFM at 1 PSID
• Filter Media: Polyester, Polyurethane
• Body Material: ABS, Nylon, Polypropylene, Buna
• Moisture Retention (Max): 14.3 fl oz, 424 ml
• Connection Size: 1 inch
• Weight: 0.67 lb
