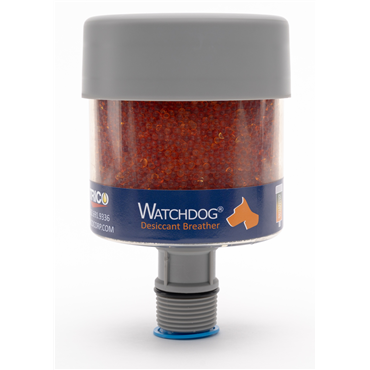

Trico Corporation WG-080418-S Gold 18 CFM Desiccant Breather Standard 1 in Tri-Fit

Product Description

The Trico Corporation WG-080418-S Gold 18 CFM Desiccant Breather Standard 1 in Tri-Fit is designed to filter particles and remove water from industrial air systems. This breather prevents harmful contaminants from affecting equipment performance and extends oil life.

• 1 inch connection size
• Maximum flow rate of 18 CFM at 1 PSID
• Maximum moisture retention of 8.9 fluid ounces

Product Highlights

This breather effectively keeps industrial systems dry and clean, improving reliability and reducing maintenance costs.

Product Information

Standard Information

• Brand: Trico Corporation
• Part Number: WG-080418-S

Technical Specifications

• Height: 8.28 inches
• Diameter: 4.1 inches
• Weight: 1.4 pounds
• Connection Type: MNPT, BSPT, BSPP
• Connection Size: 1 inch
• Flow Rate (Max): 18 CFM at 1 PSID
• Moisture Retention (Max): 8.9 fluid ounces (264 ml)
• Body Material: ABS, Nylon, Polypropylene, Buna
• Silica Color: Gold
• Operating Temperature (Max): 200 °F
• Operating Temperature (Min): -20 °F
• Filter Media: Polyester, Polyurethane
• Filter Efficiency: 3-Micron Absolute
• Moisture Absorbing Media: Silica Gel
