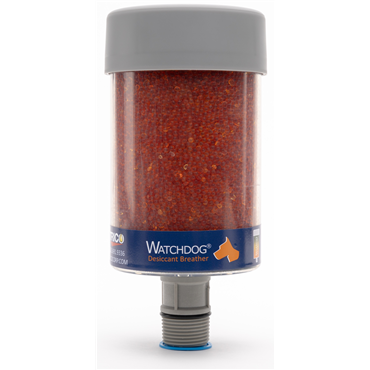

Trico Corporation WG-080410-EX Gold 10 CFM Desiccant Breather EX Check Valve 1 in Tri-Fit

Product Description

The Trico Corporation WG-080410-EX is a desiccant breather designed to protect industrial equipment from moisture and contaminants. This breather utilizes a silica gel media to absorb water vapor and ensure clean air enters hydraulic and oil systems.

• Connection size of one inch
• Maximum flow rate of ten CFM at one PSID
• Maximum moisture retention of eight point nine fluid ounces

Product Highlights

This product is suitable for hydraulic systems, gearboxes, and storage tanks. It features check valve technology for enhanced durability in harsh conditions.

Product Information

Standard Information

• Brand: Trico Corporation
• Part Number: 120612114

Technical Specifications

• Connection Type: MNPT, BSPT, BSPP
• Connection Size: 1 in
• Diameter: 4.1 in
• Moisture Absorbing Media: Silica Gel
• Silica Color: Gold
• Body Material: ABS, Nylon, Polypropylene, Buna
• Filter Efficiency: 3-Micron Absolute
• Operating Temperature (Max): 200 °F
• Filter Media: Polyester, Polyurethane
• Height: 8.28 in
• Flow Rate (Max): 10 cfm @ 1 psid
• Operating Temperature (Min): -20 °F
• Moisture Retention (Max): 8.9 fl oz, 264 ml
• Weight: 0.67 lb
