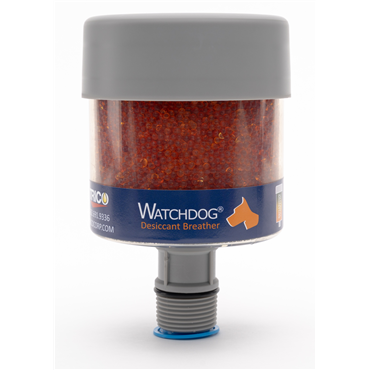

Trico Corporation WG-060418-S Gold 18 CFM Desiccant Breather Standard 1 in Tri-Fit

Product Description

The Trico Corporation WG-060418-S is a Gold 18 CFM Desiccant Breather designed for effective particle filtration and moisture removal. This product prevents contaminants from entering industrial equipment, prolonging oil life and enhancing equipment reliability. The breather is suitable for use in various applications including hydraulic systems, circulating oil systems, and gearboxes.

• 1 inch connection size
• Maximum flow rate of 18 CFM at 1 PSID
• 4.8 fluid ounces maximum moisture retention

Product Highlights

This unit features water vapor adsorbent silica gel and includes a tri-fit adapter for compatibility with NPT, BSPT, and BSPP thread types.

Product Information

Standard Information

• Filter Efficiency: 3-Micron Absolute
• Operating Temperature (Min): -20 °F

Technical Specifications

• Silica Color: Gold
• Moisture Retention (Max): 4.8 fl oz, 142 ml
• Diameter: 4.1 in
• Height: 6.11 in
• Operating Temperature (Max): 200 °F
• Flow Rate (Max): 18 CFM @ 1 PSID
• Moisture Absorbing Media: Silica Gel
• Connection Type: MNPT, BSPT, BSPP
• Body Material: ABS, Nylon, Polypropylene, Buna
• Filter Media: Polyester, Polyurethane
• Connection Size: 1 in
• Weight: 0.7 LB
