Trico Corporation WG-050207-S Gold 7 CFM Desiccant Breather Standard 3/8 in Tri-Fit

Product Description

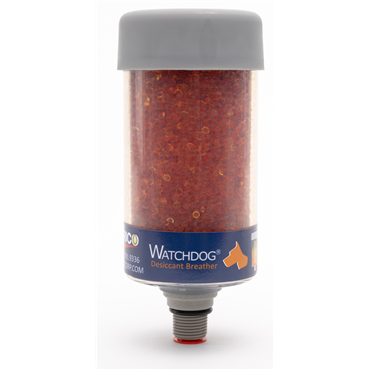

The Trico Corporation WG-050207-S Gold Seven CFM Desiccant Breather is a practical solution designed for air filtration and moisture control in industrial applications. This product effectively prevents contaminants from entering machinery during air circulation caused by temperature changes and fluid level adjustments. Ensuring clean and dry conditions extends the life of oils and improves overall equipment reliability, while also reducing maintenance costs.

• Connection size: Three-eighths inches
• Flow rate: Seven CFM at one PSID
• Moisture retention: Two fluid ounces maximum

Product Highlights

This desiccant breather features advanced silica gel for moisture absorption and a tri-fit adapter for versatile installation.

Product Information

Standard Information

• Brand: Trico Corporation
• Part Number: WG-050207-S

Technical Specifications

• Filter Media: Polyester, Polyurethane
• Connection Size: Three-eighths inches
• Connection Type: MNPT, BSPT, BSPP
• Height: Five point five nine inches
• Filter Efficiency: Three-Micron Absolute
• Body Material: ABS, Nylon, Polypropylene, Buna
• Moisture Absorbing Media: Silica Gel
• Operating Temperature (Max): Two hundred degrees Fahrenheit
• Diameter: Two point five four inches
• Operating Temperature (Min): Negative twenty degrees Fahrenheit
• Moisture Retention (Max): Two fluid ounces, sixty milliliters
• Silica Color: Gold
• Flow Rate (Max): Seven CFM at one PSID
• Weight: Three point zero seven pounds
