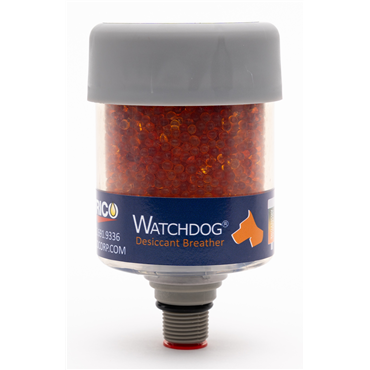

Trico Corporation WG-040207-S Gold 7 CFM Desiccant Breather Standard 3/8 in Tri-Fit

Product Description

The Trico Corporation WG-040207-S is a Gold seven CFM desiccant breather designed for various industrial applications. This unit prevents contaminants from damaging equipment by filtering air entering and exiting through thermal expansion and fluid level adjustments. The result is enhanced equipment reliability, extended oil life, and reduced maintenance costs.

• 3/8 inch connection size
• Maximum flow rate of seven CFM at one PSID
• Maximum moisture retention of one fluid ounce

Product Highlights

This desiccant breather uses water vapor adsorbent silica gel and features check valve technology for optimal performance in extreme conditions. It includes a tri-fit adapter that works with various thread types and indicates when the silica gel needs replacing.

Product Information

Standard Information

• Brand: Trico Corporation
• Part Number: WG-040207-S

Technical Specifications

• Flow Rate [Max]: 7 CFM @ 1 PSID
• Connection Type: MNPT, BSPT, BSPP
• Filter Media: Polyester, Polyurethane
• Connection Size: 3/8 inch
• Silica Color: Gold
• Body Material: ABS, Nylon, Polypropylene, Buna
• Filter Efficiency: 3-Micron Absolute
• Moisture Absorbing Media: Silica Gel
• Diameter: 2.54 inches
• Operating Temperature [Max]: 200 °F
• Moisture Retention [Max]: 1.0 fluid ounce, 28 ml
• Operating Temperature [Min]: -20 °F
• Height: 4.14 inches
• Weight: 0.25 LB
