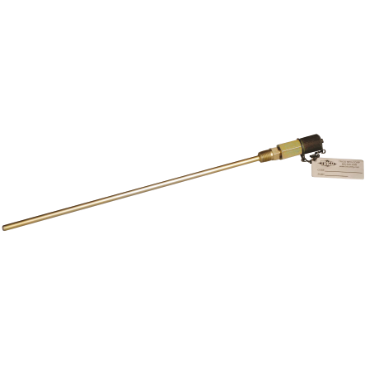

Trico Corporation 36225 Pitot Tube Oil Sampling Port

Product Description

The Trico Corporation 36225 Pitot Tube Oil Sampling Port offers a reliable approach for fluid sampling from sumps and horizontal drain lines. This product ensures accurate samples from specific locations in the system. Utilizing a swivel adapter, the thick wall tubing can be maneuvered for optimal sampling angles. It is ideal for applications where precision is necessary.

• Designed for easy installation into drain, fill, or sampling pipe ports.
• Equipped with sample ports for effective fluid extraction.
• Max pressure tolerance of five hundred psi.

Product Highlights

The oil sampling port facilitates straightforward sampling for maintenance and monitoring.

Product Information

Standard Information

• Brand: Trico Corporation
• Part #: 100873567

Technical Specifications

• Tube Length: 24 inches
• Material: Stainless Steel
• Seal Material: Viton
• Adapter Type: Swivel
• Fitting Size: 1/4 NPT Male
• Max Pressure: 500 psi
• Temperature Range: -4 °F to 392 °F
• Use With Port Adapter: 36133 (1/4 barb-plated black)
