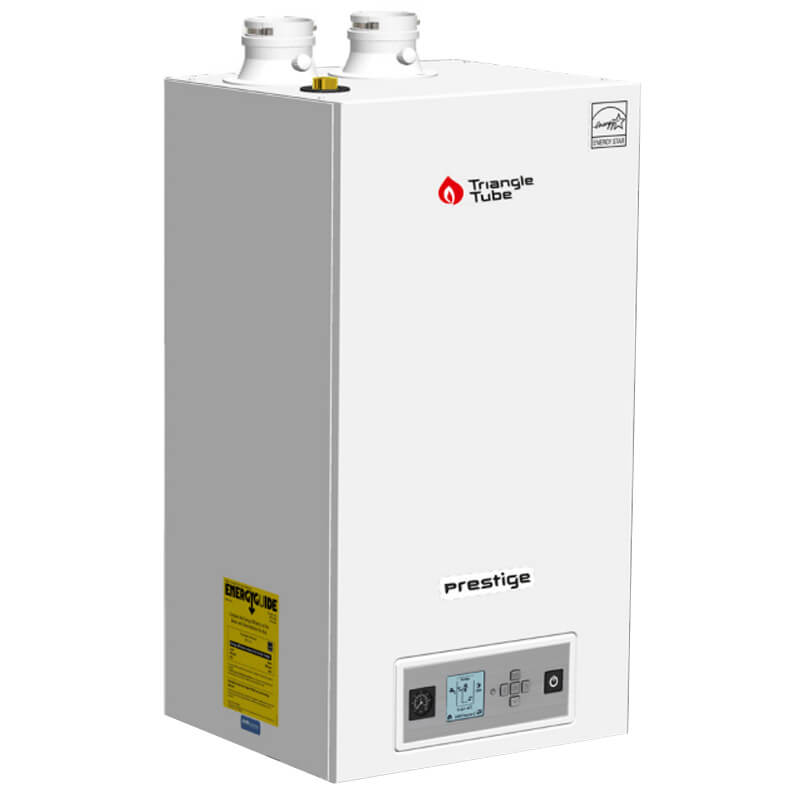

Triangle Tube PA80 Prestige Solo 80 74,000 BTU (Wall Mount) PT60/SOLO-60

Product Description

Triangle Tube PA80 is a 74,000 BTU, 95% AFUE modulating condensing hot water boiler designed for wall-mounted hydronic heating. It features a stainless steel (439) and titanium fire-tube self-cleaning heat exchanger, ACVMax controls with integrated cascade for up to six boilers, and a modulating burner with a 5:1 turndown ratio. Includes an outdoor reset sensor, ACVMax control module, wall mounting bracket and NG-to-LP conversion kit.

• 95% AFUE condensing boiler with DOE heating capacity 74,000 BTU and net IBR capacity 64,000 BTU; maximum input 80,000 BTU, minimum input 16,000 BTU, turndown ratio 5:1
• Stainless steel (439) and titanium fire-tube heat exchanger with self-cleaning design and ASME stamping; ultra low NOx emissions
• ACVMax control with multiple zone and circulator outputs, integrated cascade for up to six boilers, included outdoor reset sensor and NG-to-LP conversion kit

Product Highlights

Wall-mounted modulating condensing boiler, 74,000 DOE BTU, 95% AFUE, stainless steel/titanium fire-tube heat exchanger, ACVMax control and included NG-to-LP conversion kit.

Product Information

Standard Information

• Brand: TRIANGLE TUBE
• Manufacturer Part Number: PA80
• Country of Origin: United States

Technical Specifications

• Brand: Triangle Tube
• MPN: PA80
• Model Name: Prestige Solo 80
• Product Line: Prestige Solo
• Product Category: Boiler
• AFUE: 95%
• DOE Heating Capacity: 74,000 BTU
• Net IBR Capacity: 64,000 BTU
• Maximum Input Capacity: 80,000 BTU
• Minimum Input Capacity: 16,000 BTU
• Turndown Ratio: 5:1
• Fuel Type: Natural Gas (configured) / Propane (conversion kit included)
• Vent Type: Direct vent (compatible with PVC, CPVC, polypropylene, stainless steel)
• Combustion Type: Condensing
• Modulating/Staging: Modulating
• Mount Type: Wall
• Includes Pump: Yes
• Gas Connection Size: 1/2 Inch
• Supply Connection: 1 Inch
• Return Connection: 1 Inch
• Flue Connection Size: 3 Inches
• Electrical Phase: Single-phase (1)
• Electrical Frequency: 60 Hz
• Power Supply: 120 V AC, 60 Hz
• Water Volume: 2.1 Gallons
• Heat Exchanger: 439 stainless steel with titanium fire-tube, ASME stamped, self-cleaning
• Ultra Low NOx Emissions: Yes (2012 SCAQMD certified)
• Certifications: Energy Star listed; AHRI certified; ASME certified; ISO certified; ETL listed
• AHRI Reference Number: 9032830
• Maximum Altitude: 10000 Feet
• Minimum Altitude: 0 Feet
• Medium: Hot Water (Hydronic)
• DHW Production: No
• Gas Conversion Kit: Included (NG-to-LP)
• Product Weight (manufacturer spec): 115 Pounds
• Dimensions (H x W x D): 39 9/16 Inches x 19 3/4 Inches x 17 5/16 Inches
